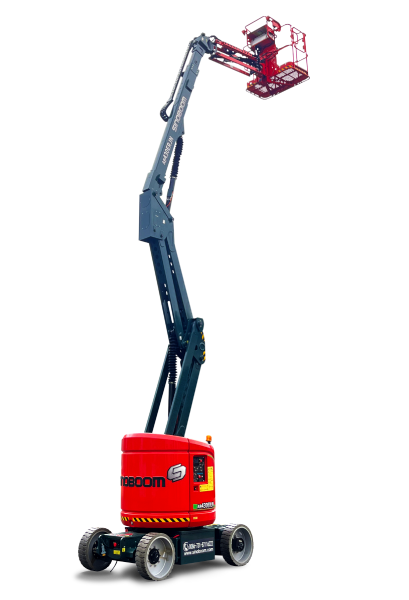

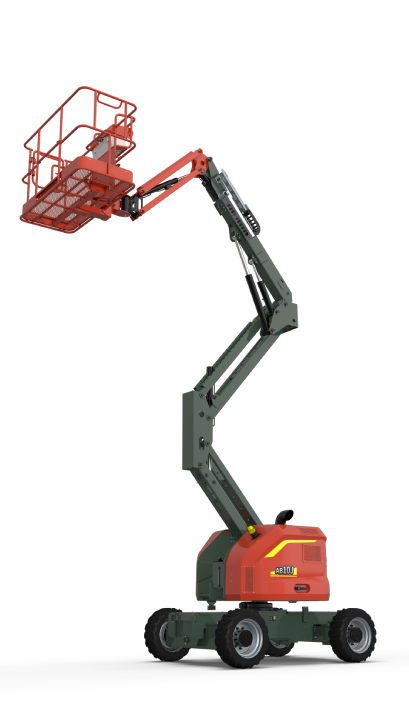

Sinoboom Articulating Boom Lift AB10J (AB340J)

DIMENSIONS

• Max. Platform Height: 10.38 m

• Max. Working Height: 12.38 m

• Max. Horizontal Outreach: 5.9 m

• Overall Length (Stowed): 5.52 m

• Overall Width (Stowed): 1.85 m

• Overall Height (Stowed): 1.85 m

• Wheelbase: 1.88 m

• Ground Clearance: 0.28 m

• Platform Dimensions (L × W × H):
  1.45 × 0.85 × 1.10 m

PERFORMANCE

• Platform Capacity (Unrestricted): 250 kg

• Turntable Rotation: 355° (non-continuous)

• Platform Rotation: 160°

• Drive Speed (Stowed): 0 – 5 km/h

• Drive Speed (Raised): 0 – 0.8 km/h

• Gradeability: 40%

• Turning Radius (Inside): 1.5 m

• Turning Radius (Outside): 3.9 m

• Turntable Tailswing: 0 m

• Tilt Rating:

  • 3° (forward / backward)

  • 4.5° (side to side)

• Drive / Steer: 4WD × 2WS

• Tires: 27 × 10.5-15 foam-filled, non-marking

POWER

• Engine Options:

  • Kubota D1105 – 18.2 kW @ 3000 rpm

  • Kubota V2403 – EU Stage V / EPA Tier 4F

  • Yanmar 3TNV80F-NXDSI – EU Stage V / EPA Tier 4F

• Auxiliary Power: 12 V DC

• Fuel Tank Capacity (Diesel): 38 L

• Hydraulic Tank Capacity: 78 L

GENERAL

• Machine Weight: 4,990 kg

• Standards Compliance: CE / ANSI / CSA / AS
