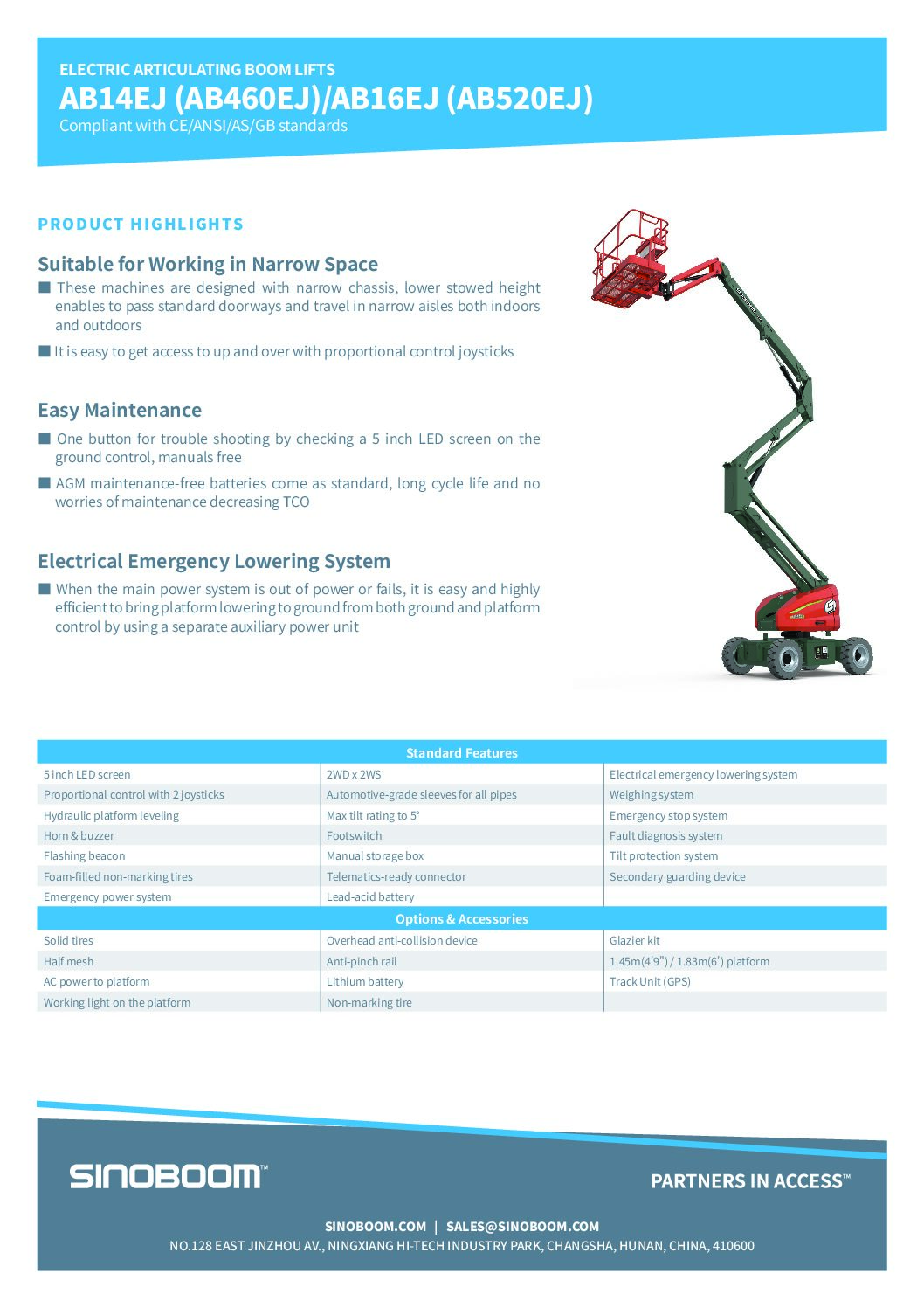

Sinoboom Articulating Boom Lift AB14EJ (AB460EJ)

INDUSTRY-LEADING ADAPTABILITY

• Large tilt angle up to 5°

PRECISION PERFORMANCE

• Three joysticks with proportional control for boom lift, boom swing, boom extension, turntable rotation, and drive speed

• Smooth start and stop for precise positioning and accurate operation

SMART MAINTENANCE

• Smart display provides real-time fault codes, machine status, diagnostics, parameter viewing, and system settings

SUITABLE FOR NARROW SPACES

• Narrow overall width of 1.73 m

• Nearly zero tailswing for operation in confined areas

GREEN

• Fully battery-powered, silent operation

• Zero emissions and long battery life, ideal for indoor applications

DIMENSIONS

• Max. Working Height: 16.0 m

• Max. Platform Height: 14.0 m

• Max. Horizontal Extension: 7.6 m

• Overall Length (Stowed): 6.0 m

• Overall Width (Stowed): 1.73 m

• Overall Height (Stowed): 2.0 m

• Wheelbase: 1.9 m

• Ground Clearance: 0.22 m

• Platform Dimensions (L × W × H):
  1.45 × 0.85 × 1.10 m

PERFORMANCE

• Platform Capacity (Unrestricted): 230 kg

• Turntable Rotation: 355° (non-continuous)

• Platform Rotation: 160°

• Drive Speed (Stowed): 5.2 km/h

• Drive Speed (Raised): 0.8 km/h

• Gradeability: 30%

• Turning Radius (Inside): 1.15 m

• Turning Radius (Outside): 3.51 m

• Turntable Tailswing: 0 m

• Tilt Rating: 5°

• Drive / Steer: 2WD × 2WS

• Tires: 240/55D17.5, foam-filled

POWER

• Battery Options:

  • Lead-acid: 8 × 6 V, 335 Ah (5 hr) / 390 Ah (20 hr)

  • Lithium: 51.2 V, 315 Ah

• Auxiliary Power: 12 V DC

• Hydraulic Tank Capacity: 40 L

GENERAL

• Machine Weight: 7,160 kg

• Standards Compliance: CE / ANSI / CSA / AS / EAC
