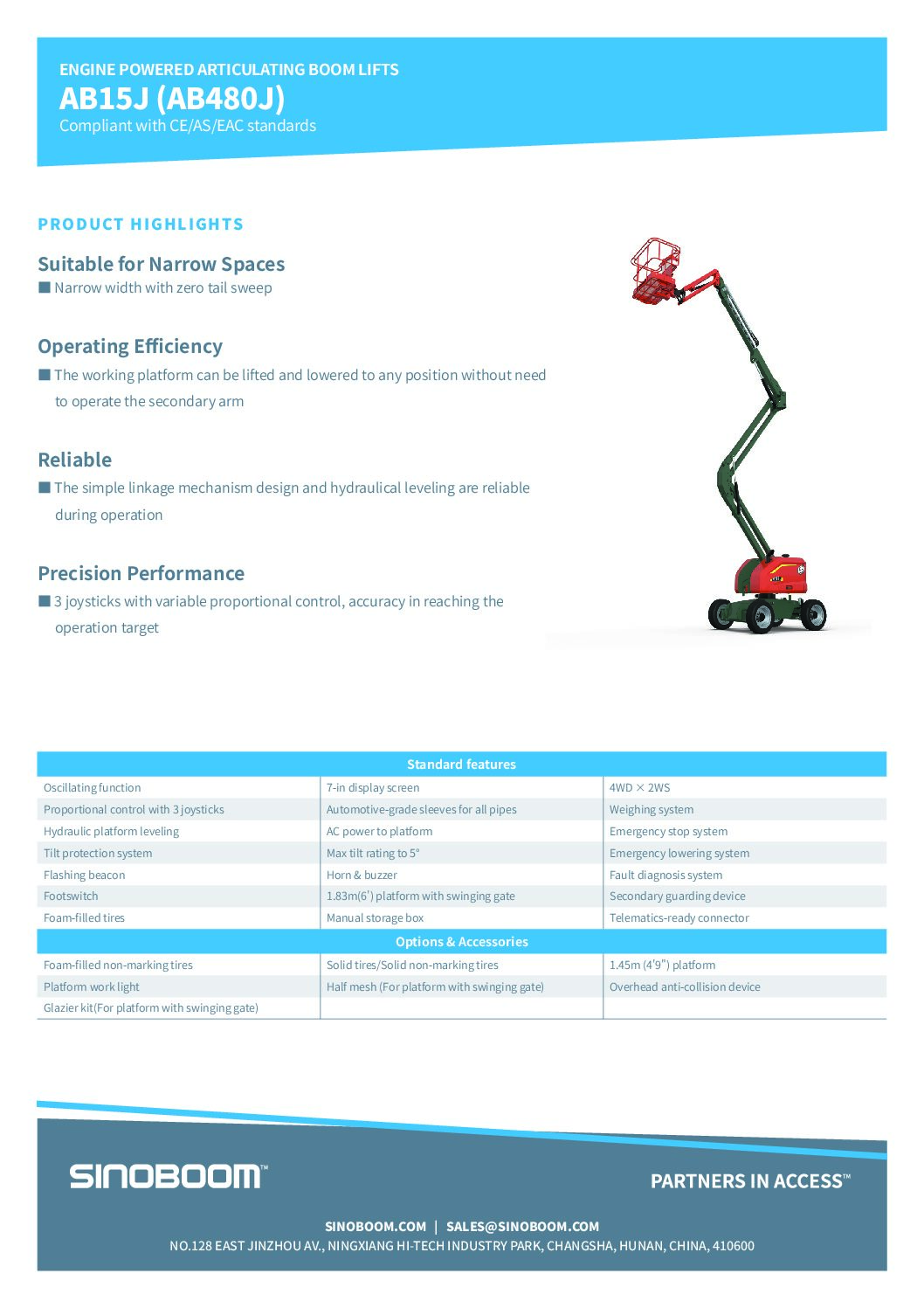

Sinoboom Articulating Boom Lift AB15J (AB480J)

PRODUCT HIGHLIGHTS

Suitable for Narrow Spaces – Narrow body design with minimal tail swing
Precision Performance – 3 joysticks with proportional control for boom lift, swing and extension
Industry-Leading Adaptability – Maximum allowable inclination angle up to 5°

DIMENSIONS

Max Platform Height: 14.7 m
Max Working Height: 16.7 m
Max Horizontal Extension: 8.5 m
Length (Stowed): 7.35 m
Width (Stowed): 2.26 m
Height (Stowed): 2.22 m
Wheelbase: 2.03 m
Ground Clearance: 0.32 m
Platform Dimensions (L×W×H): 1.83 × 0.85 × 1.10 m

PERFORMANCE

Platform Capacity: 250 kg
Turntable Rotation: 355° (Non-continuous)
Platform Rotation: 160°
Drive Speed (Stowed): 7 km/h (2WD) / 5 km/h (4WD)
Drive Speed (Raised): 1.1 km/h
Gradeability: 30% (2WD) / 40% (4WD)
Turning Radius (Inside): 1.8 m
Turning Radius (Outside): 4.5 m
Turntable Tailswing: 0 m
Tilt Rating: 5°
Drive & Steer: 4WD × 2WS
Tyres: 315/55D20 (Foam-filled)

POWER

Engine Options:

• 36.3 kW @ 2800 rpm (Deutz D2011L3, EU Stage IIIA)

• 35.5 kW @ 3000 rpm (Yanmar 4TNV88C-DFLT, EU Stage V / EPA Tier 4F)

Auxiliary Power Unit: 12 V DC
Fuel Tank Capacity (Diesel): 70 L
Hydraulic Tank Capacity: 90 L
