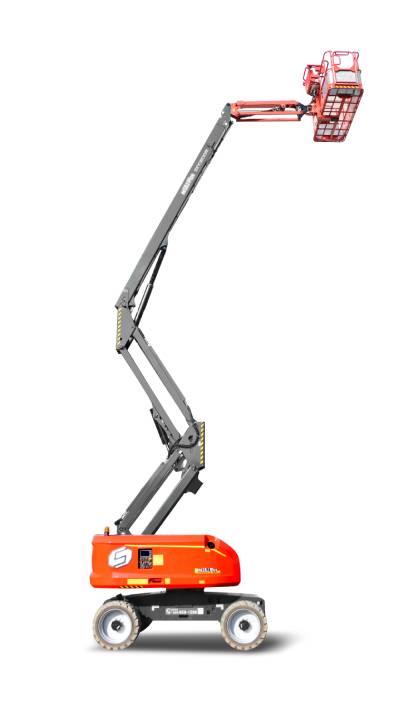

Why Should I Rent a Boom Lift?
Boom lifts are powerful tools equipped with a stable, articulating platform that allows workers to navigate both wide and narrow vertical spaces. This makes them ideal for tasks requiring precision,
$63,200.00
Work Height Max.
Platform Capacity
Machine Width

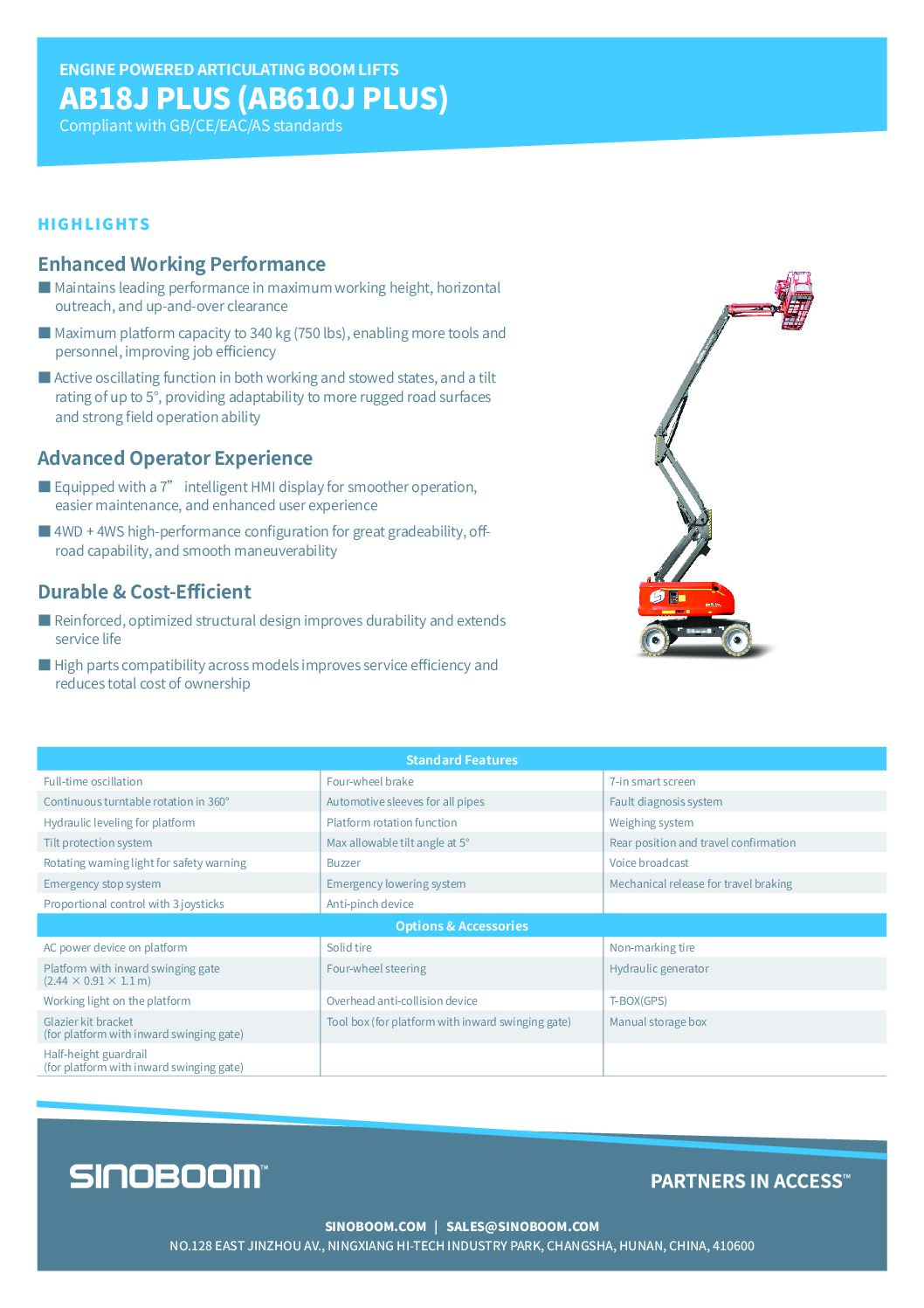

Max Platform Height: 18.58 m
Max Working Height: 20.58 m
Max Horizontal Extension: 12.0 m / 10.7 m
Length (Stowed): 8.8 m
Width (Stowed): 2.49 m
Height (Stowed): 2.54 m
Wheelbase: 2.49 m
Ground Clearance: 0.42 m
Platform Dimensions (L×W×H): 2.44 × 0.91 × 1.10 m
Platform Capacity: 340 kg / 250 kg (Restricted / Unrestricted)
Turntable Rotation: 360° (Continuous)
Platform Rotation: 180°
Drive Speed (Stowed): 4.8 km/h
Drive Speed (Raised): 1.1 km/h
Gradeability: 40%
Turning Radius (Inside): 2.4 m / 1.63 m
Turning Radius (Outside): 5.55 m / 3.59 m
Turntable Tailswing: 0.78 m
Tilt Rating: 5°
Drive & Steer: 4WD × 2WS (4WS optional)
Tyres: 355/55D625 (Foam-filled) / 36×14-20 (Solid)
Engine Power Options:
36.4 kW @ 2200 rpm (Deutz D2.9 L4, EU Stage V)
36.4 kW @ 2200 rpm (Deutz D2.9 L4, EPA Tier 4F)
36.0 kW @ 2500 rpm (Cummins F2.8 CS449)
43.0 kW @ 2500 rpm (Cummins QSF2.8T3NA60)
Auxiliary Power Unit: 12 V DC
Fuel Tank Capacity (Diesel): 100 L
Hydraulic Tank Capacity: 130 L
Machine Weight: 9,500 kg (2WS) / 9,620 kg (4WS)
Standards Compliance: GB / CE / EAC / AS
