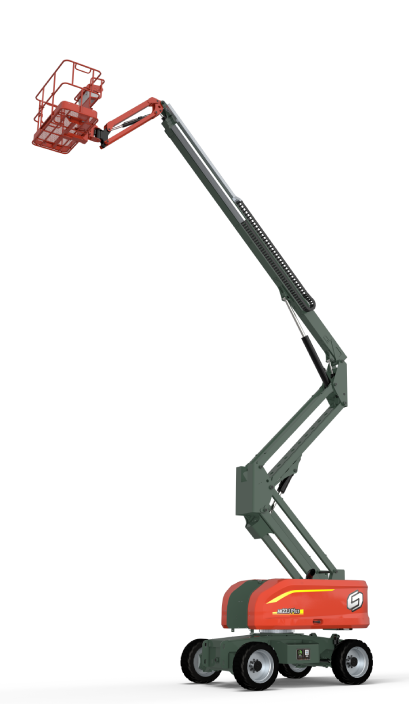

Sinoboom Articulating Boom Lift AB22J PLUS (AB710J PLUS)

DIMENSIONS

• Max. Platform Height: 21.6 m

• Max. Working Height: 23.6 m

• Max. Horizontal Outreach:

  • 13.35 m (230 kg)

  • 11.85 m (340 kg)

  • 10.4 m (454 kg)

• Overall Length (Stowed): 9.95 m

• Overall Width (Stowed): 2.49 m

• Overall Height (Stowed): 2.68 m

• Wheelbase: 2.49 m

• Ground Clearance: 0.42 m

• Platform Dimensions (L × W × H):
  2.44 × 0.91 × 1.10 m

PERFORMANCE

• Platform Capacity:

  • Restricted: 454 kg / 340 kg

  • Unrestricted: 230 kg

• Turntable Rotation: 360° (continuous)

• Platform Rotation: 180°

• Drive Speed (Stowed): 0 – 4.8 km/h

• Drive Speed (Raised): 0 – 1.1 km/h

• Gradeability: 40%

• Turning Radius (Inside):

  • 2.4 m (2-wheel steering)

  • 1.63 m (4-wheel steering)

• Turning Radius (Outside):

  • 5.55 m (2-wheel steering)

  • 3.59 m (4-wheel steering)

• Turntable Tailswing: 0.89 m

• Tilt Rating: 5°

• Drive / Steer: 4WD × 2WS (4WS optional)

• Tires:

  • 355/55D625, foam-filled

  • 36 × 14–20, solid

POWER

• Engine Options:

  • Deutz D2.9 L4 – 36.4 kW @ 2200 rpm (EU Stage V / EPA Tier 4F)

  • Cummins QSF2.8T3NA60 – 43 kW @ 2500 rpm (China T3 / EU Stage IIIA)

• Auxiliary Power: 12 V DC

• Fuel Tank Capacity (Diesel): 100 L

• Hydraulic Tank Capacity: 130 L

GENERAL

• Machine Weight:

  • 11,880 kg (2-wheel steering)

  • 12,000 kg (4-wheel steering)

• Standards Compliance: CE / EAC / AS
