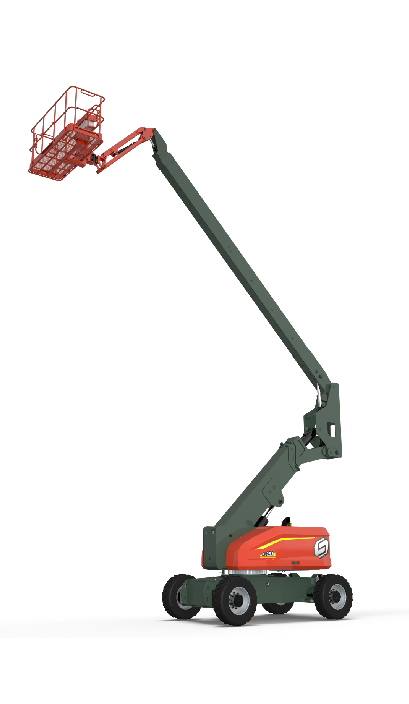

Sinoboom Articulating Boom Lift AB25J (AB810J)

PRODUCT HIGHLIGHTS

POWERFUL OFF-ROAD PERFORMANCE

• 30% (2WD) / 45% (4WD) gradeability

• Proprietary patented anti-skid control technology ensures strong off-road capability

PRECISION PERFORMANCE

• Three joysticks with proportional control for boom lift, boom swing, boom extension, turntable rotation, and drive speed

• Smooth start and stop for precise positioning and accurate operation

OPERATING EFFICIENCY

• Folding arm can be lifted and lowered to any position without repositioning

• Fast platform ascent and descent improve jobsite productivity

SMART MAINTENANCE

• Smart 7-inch display provides real-time fault codes, status information, parameter viewing, and system settings

• Simplifies diagnostics and maintenance

SAFE AND RELIABLE

• Secure and reliable folding arm, luffing operation with hydraulic interlocking

• Fully hydraulic platform leveling for stable operation

• Simple and reliable hydraulic platform leveling system

DIMENSIONS

• Max. Platform Height: 24.6 m

• Max. Working Height: 26.6 m

• Max. Horizontal Outreach: 16.1 m

• Overall Length (Stowed): 11.51 m

• Overall Width (Stowed): 2.49 m

• Overall Height (Stowed): 3.20 m

• Wheelbase: 3.05 m

• Ground Clearance: 0.39 m

• Platform Dimensions (L × W × H):
  2.44 × 0.91 × 1.10 m

PERFORMANCE

• Platform Capacity: 230 kg

• Turntable Rotation: 360° (continuous)

• Platform Rotation: 160°

• Drive Speed (Stowed): 0 – 4.4 km/h

• Drive Speed (Raised): 0 – 1.1 km/h

• Gradeability:

  • 30% (2WD)

  • 45% (4WD)

• Turning Radius (Inside): 3.0 m

• Turning Radius (Outside): 6.33 m

• Turntable Tailswing: 1.0 m

• Tilt Rating: 5°

• Drive / Steer: 4WD × 2WS

• Tires: 385/65-22.5, foam-filled

POWER

• Engine:

  • Cummins QSF2.8T3TC2 – 54 kW @ 2400 rpm

  • China T3 / EU Stage IIIA

• Auxiliary Power: 12 V DC

• Fuel Tank Capacity (Diesel): 140 L

• Hydraulic Tank Capacity: 180 L

GENERAL

• Machine Weight: 17,150 kg

• Standards Compliance: CE / AS / EAC
