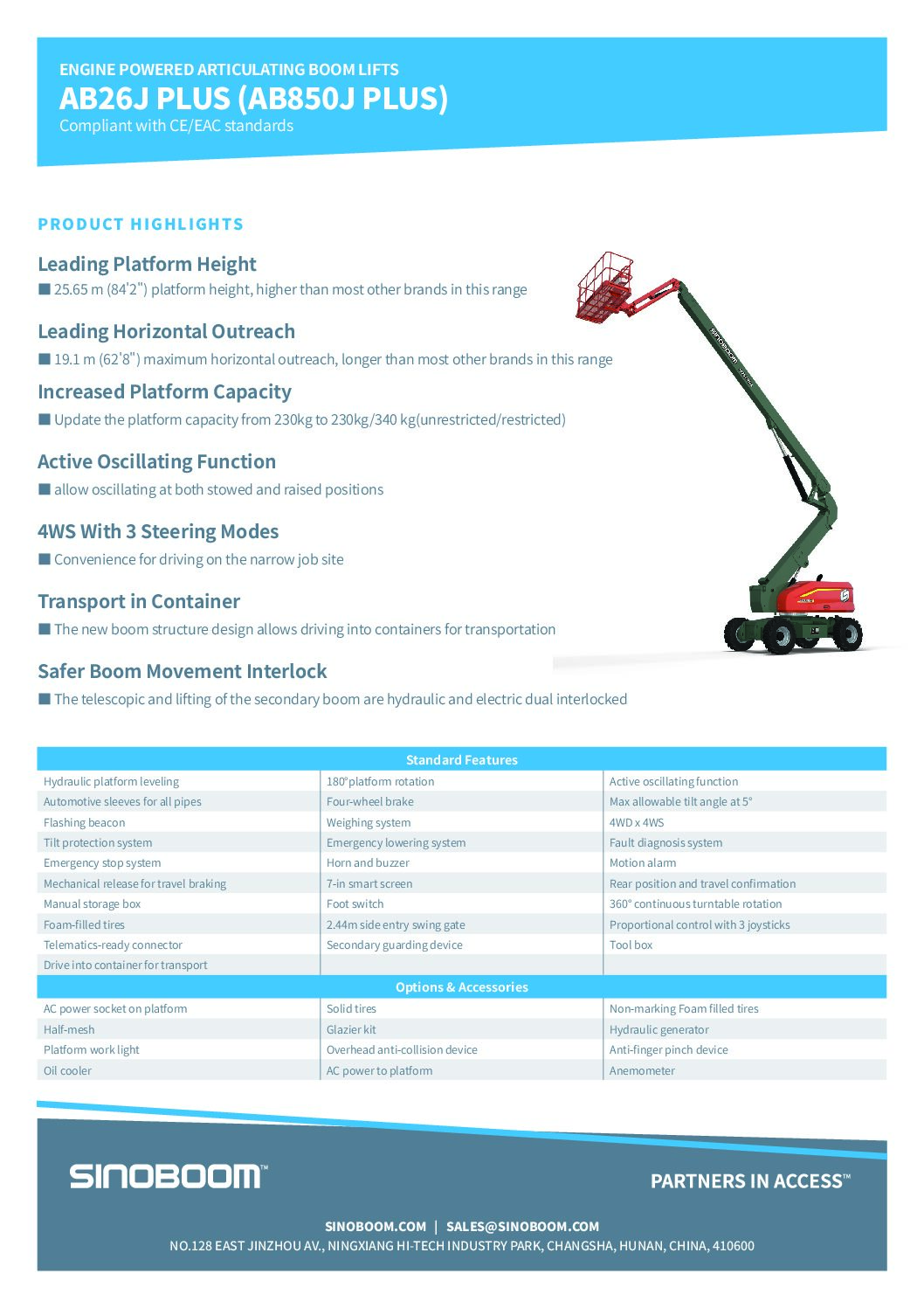

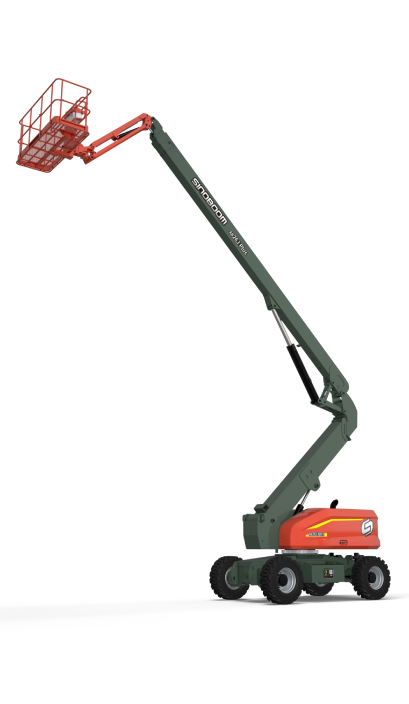

Sinoboom Articulating Boom Lift AB26J PLUS (AB850J PLUS)

DIMENSIONS

• Max. Platform Height: 25.65 m

• Max. Working Height: 27.65 m

• Max. Horizontal Outreach:

  • 19.1 m (230 kg)

  • 17.0 m (340 kg)

• Overall Length (Stowed): 12.09 m

• Overall Width (Stowed): 2.49 m

• Overall Height (Stowed): 2.93 m

• Wheelbase: 3.0 m

• Ground Clearance: 0.41 m

• Platform Dimensions (L × W × H):
  2.44 × 0.91 × 1.10 m

PERFORMANCE

• Platform Capacity:

  • Unrestricted: 230 kg

  • Restricted: 340 kg

• Turntable Rotation: 360° (continuous)

• Platform Rotation: 180°

• Drive Speed (Stowed): 0 – 4.8 km/h

• Drive Speed (Raised): 0 – 1.1 km/h

• Gradeability: 45%

• Turning Radius (Inside):

  • 3.65 m (2-wheel steering)

  • 2.25 m (4-wheel steering)

• Turning Radius (Outside):

  • 6.91 m (2-wheel steering)

  • 4.60 m (4-wheel steering)

• Turntable Tailswing: 1.13 m

• Tilt Rating: 5°

• Drive / Steer: 4WD × 4WS (2WS optional)

• Tires: 385/65-22.5, foam-filled

POWER

• Engine Options:

  • Cummins QSF2.8T3NA60 – 43 kW @ 2500 rpm (China T3 / EU Stage IIIA)

  • Deutz TD2.9 L4 – 55.4 kW @ 2600 rpm (EU Stage V / EPA Tier 4F)

• Auxiliary Power: 12 V DC

• Fuel Tank Capacity (Diesel): 150 L

• Hydraulic Tank Capacity: 180 L

GENERAL

• Machine Weight:

  • 18,640 kg (2-wheel steering)

  • 18,760 kg (4-wheel steering)

• Standards Compliance: CE / EAC
