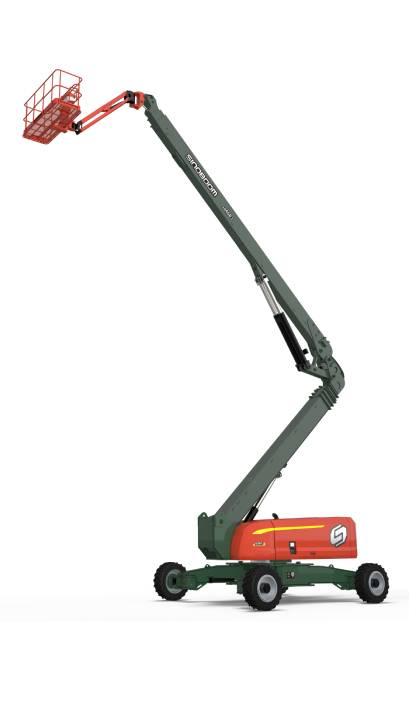

Sinoboom Articulating Boom Lift AB46RJ (AB1530RJ)

DIMENSIONS

• Max. Platform Height: 46.6 m

• Max. Working Height: 48.6 m

• Max. Horizontal Outreach: 23.1 m

• Overall Length (Stowed): 15.0 m

• Overall Width (Stowed): 2.49 m

• Overall Height (Stowed): 3.2 m

• Wheelbase: 5.2 m

• Ground Clearance: 0.44 m

• Platform Dimensions (L × W × H):
  2.44 × 0.91 × 1.10 m

PERFORMANCE

• Platform Capacity:

  • Restricted: 455 kg

  • Unrestricted: 275 kg

• Turntable Rotation: 360° (continuous)

• Platform Rotation: 180°

• Drive Speed (Stowed): 0 – 4.5 km/h

• Drive Speed (Raised): 0 – 0.48 km/h

• Gradeability: 40% (4WD)

• Turning Radius (Inside): 7.1 m

• Turning Radius (Outside): 9.52 m

• Turntable Tailswing: 4.6 m

• Tilt Rating: 5°

• Drive / Steer: 4WD × 4WS

• Tires: 445/50D710, 24PR, foam-filled

POWER

• Engine Options:

  • Cummins QSF3.8 – 74 kW @ 2200 rpm

  • Cummins QSF3.8 – EU Stage V / EPA Tier 4F

  • Deutz TCD 3.6 L4 – 74.4 kW @ 2300 rpm (EU Stage V / EPA Tier 4F)

• Auxiliary Power: 12 V DC

• Fuel Tank Capacity (Diesel): 200 L

• Hydraulic Tank Capacity: 410 L

GENERAL

• Machine Weight: 27,300 kg

• Standards Compliance: CE / EAC
