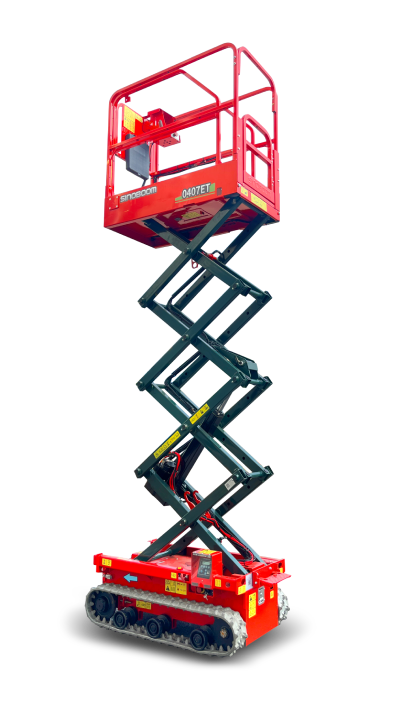

Sinoboom Rough Terrain Scissor Lift 0407ET (1530ET)

DIMENSIONS

• Max. Working Height (Indoor / Outdoor):

  • 6.5 m / 4.9 m

• Max. Platform Height (Indoor / Outdoor):

  • 4.5 m / 2.9 m

• Max. Horizontal Extension: 0.6 m

• Overall Length (Stowed):

  • 1.56 m (with / without outriggers)

• Overall Width (Stowed): 0.79 m

• Overall Height (Stowed):

  • 1.9 m (rail unfolded, 1.0 m platform height)

  • 2.0 m (rail folded, 1.1 m platform height)

• Wheelbase: 1.14 m

• Platform Dimensions (L × W × H):

  • 1.34 × 0.70 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants:

  • Indoor: 1 person

  • Outdoor: 1 person

• Platform Capacity: 230 kg

• Drive Speed (Stowed): 0 – 3 km/h

• Drive Speed (Raised): —

• Elevation Time (Unloaded): 30 – 33 s

• Descent Time (Unloaded): 25 – 30 s

• Gradeability: 30%

• Tilt Rating:

  • Front to Back: 3°

  • Side to Side (with outriggers, telescoping in/out): 3°

• Maximum Outrigger Leveling:

  • Side to Side: —

  • Front to Back: —

• Tires: Solid tires

POWER

• Battery:

  • 24 V, 120 Ah (lead-acid battery)

• Power Source: 24 V AC, 0.6 kW

• Drive Mode: —

• Hydraulic System Capacity: —

GENERAL

• Machine Weight:

  • 820 kg (with / without outriggers)

• Standards Compliance: CE
