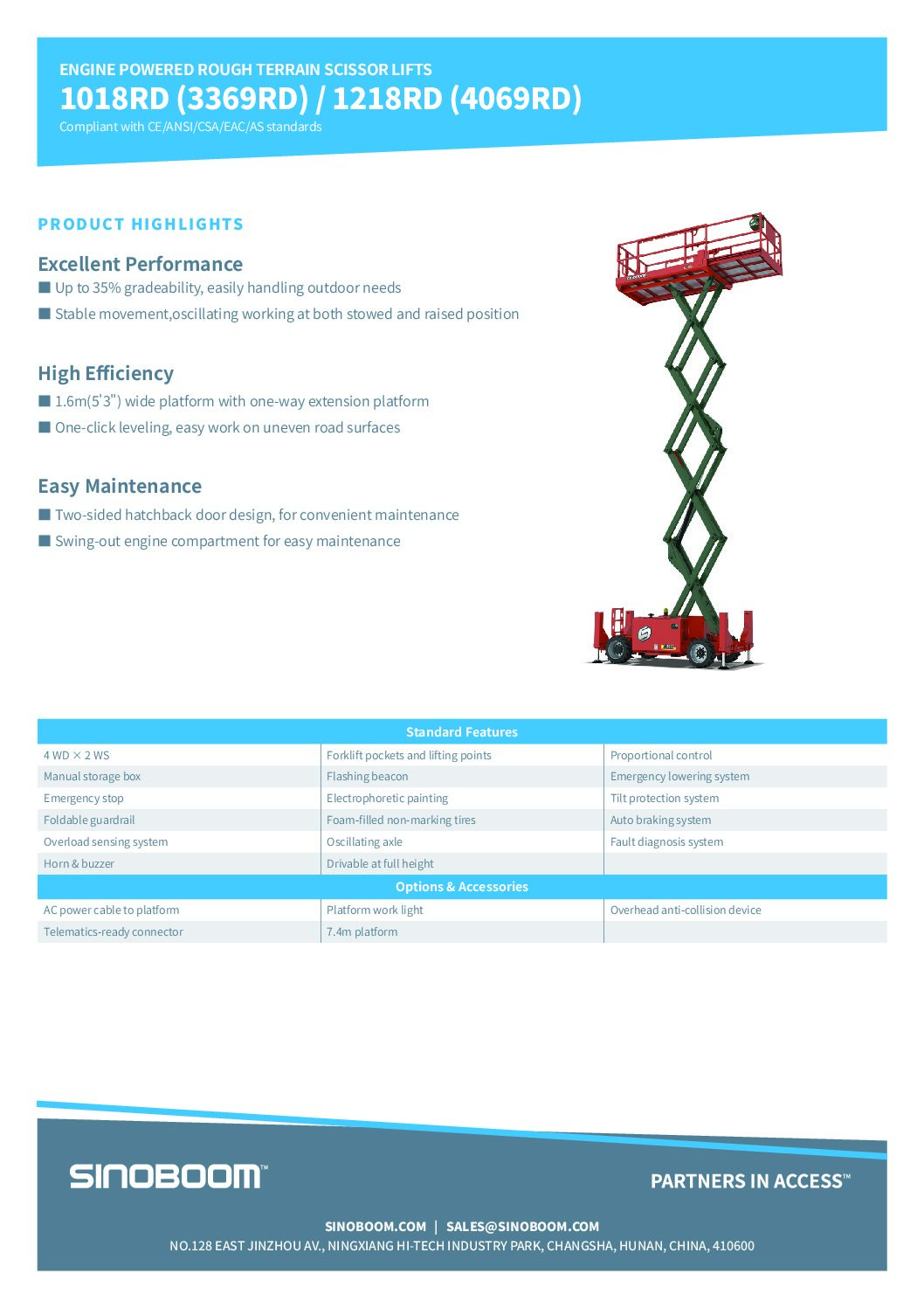

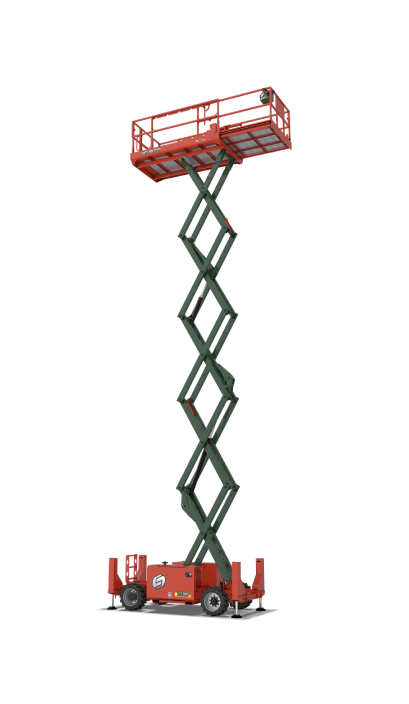

Sinoboom Rough Terrain Scissor Lift 1018RD (3369RD)

PRODUCT HIGHLIGHTS

Easy Maintenance

• Dual-sided hatchback door design for convenient servicing

• Swing-out engine compartment for easy maintenance access

High Efficiency

• 1.6 m wide platform with one-way extension

• One-click leveling for efficient operation on uneven surfaces

Excellent Performance

• Up to 40% gradeability, suitable for demanding outdoor applications

• Stable movement on rough and potholed ground

DIMENSIONS

• Max. Working Height: 12.0 m

• Max. Platform Height: 10.0 m

• Max. Horizontal Extension: 1.5 m

• Overall Length (Stowed, with / without outriggers):

  • 3.80 m / 3.19 m

• Overall Width (Stowed): 1.78 m

• Overall Height (Stowed, Rail Folded): 1.94 m

• Overall Height (Stowed, Rail Unfolded): 2.56 m

• Wheelbase: 2.28 m

• Ground Clearance: 0.22 m

• Platform Dimensions (L × W × H):

  • 2.80 × 1.60 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants:

  • Indoor: 4 persons

  • Outdoor: 2 persons

• Platform Capacity: 450 kg

• Drive Speed (Stowed): 0 – 5.6 km/h

• Drive Speed (Raised): 0 – 0.48 km/h

• Elevation Time (Unloaded): 42 – 52 s

• Descent Time (Unloaded): 40 – 50 s

• Gradeability: 35%

• Turning Radius (Inside / Outside):

  • 2.11 m / 4.60 m

• Tilt Rating:

  • Front to Back: 3°

  • Side to Side (with outriggers, telescoping in/out): 2°

• Maximum Outrigger Leveling:

  • Front to Back: 5.3° (front) / 4.2° (rear)

  • Side to Side: 11.7°

• Tires: Solid, foam-filled (26 × 12-16.5)

POWER

• Engine: Kubota D1105-E4B-EU-X1

• Drive Mode: 4WD × 2WS

• Fuel Tank Capacity (Diesel): 48 L

• Hydraulic System Capacity: 72 L

GENERAL

• Machine Weight (with / without outriggers):

  • 4,110 kg / 3,650 kg

• Standards Compliance: CE / ANSI / CSA / EAC / AS
