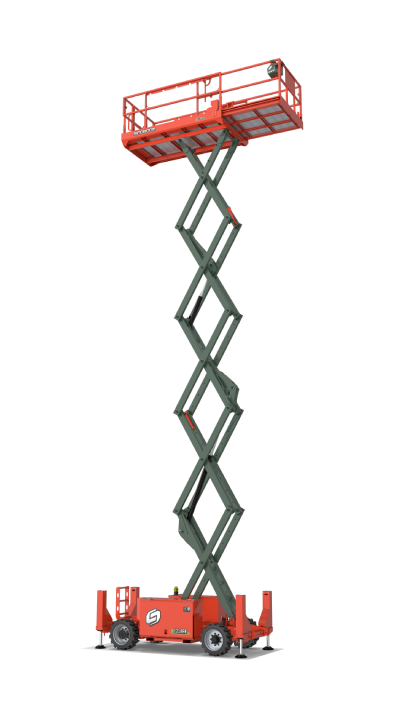

Sinoboom Rough Terrain Scissor Lift 1018RE (3369RE)

DIMENSIONS

• Max. Working Height: 12.0 m

• Max. Platform Height: 10.0 m

• Max. Horizontal Extension: 1.5 m

• Overall Length (Stowed, with / without outriggers):

  • 3.80 m / 3.19 m

• Overall Width (Stowed): 1.77 m

• Overall Height (Stowed, Rail Folded): 1.96 m

• Overall Height (Stowed, Rail Unfolded): 2.59 m

• Wheelbase: 2.28 m

• Ground Clearance: 0.22 m

• Platform Dimensions (L × W × H):

  • 2.80 × 1.60 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants:

  • Indoor: 4 persons

  • Outdoor: 2 persons

• Platform Capacity: 450 kg

• Drive Speed (Stowed): 0 – 6.0 km/h

• Drive Speed (Raised): 0 – 0.48 km/h

• Elevation Time (Unloaded): 42 – 52 s

• Descent Time (Unloaded): 40 – 50 s

• Gradeability: 35%

• Turning Radius (Inside / Outside):

  • 2.11 m / 4.60 m

• Tilt Rating:

  • Front to Back: 3°

  • Side to Side (with outriggers, telescoping in/out): 2°

• Maximum Outrigger Leveling:

  • Front to Back: 5.3° (front) / 4.2° (rear)

  • Side to Side: 11.7°

• Tires: Solid, foam-filled (26 × 12-16.5)

POWER

• Power Source: 48 V, 390 Ah

• Drive Mode: 2WD × 2WS

• Hydraulic System Capacity: 72 L

GENERAL

• Machine Weight (with / without outriggers):

  • 4,510 kg / 4,050 kg

• Standards Compliance: CE / ANSI / EAC
