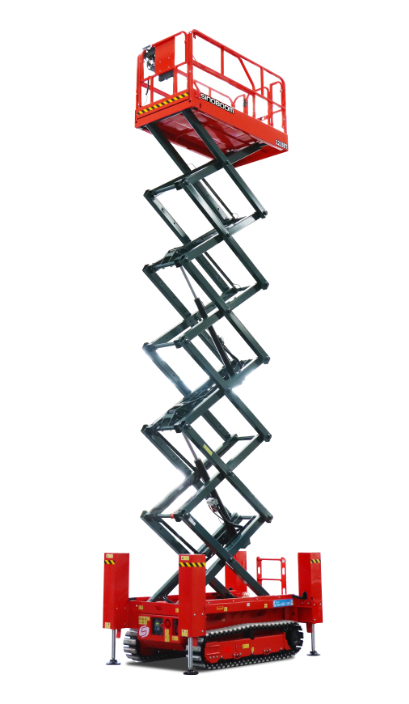

Sinoboom Rough Terrain Scissor Lift 1215ET (3962ET)

DIMENSIONS

• Max. Working Height: 14.0 m

• Max. Platform Height: 12.0 m

• Max. Horizontal Extension: 0.9 m

• Overall Length (Stowed, with / without outriggers): 2.79 m

• Overall Width (Stowed): 1.58 m

• Overall Height (Stowed, Rail Folded): 2.06 m

• Overall Height (Stowed, Rail Unfolded): 2.69 m

• Wheelbase:

  • Steel Track: 1.782 m

  • Rubber Track: 1.738 m

• Ground Clearance: 0.125 m

• Platform Dimensions (L × W × H):

  • 2.30 × 1.15 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants (Outdoor): 2 persons

• Platform Capacity: 320 kg

• Drive Speed (Stowed): 0 – 2.4 km/h

• Drive Speed (Raised): 0 km/h

• Elevation Time (Unloaded): 63 – 68 s

• Descent Time (Unloaded): 55 – 60 s

• Gradeability: 30%

• Tilt Rating:

  • Front to Back: 3°

  • Side to Side (with outriggers, telescoping in/out): 2°

• Maximum Outrigger Leveling:

  • Front to Back: 7°

  • Side to Side: 12°

• Tires / Tracks: Solid track system

POWER

• Power Source: 48 V DC, 5.0 kW

• Drive Mode: 48 V DC, 4.0 kW

• Hydraulic System Capacity: 20 L

GENERAL

• Machine Weight (with / without outriggers):

  • Steel Track: 3,690 kg

  • Rubber Track: 3,650 kg

• Standards Compliance: CE / EAC
