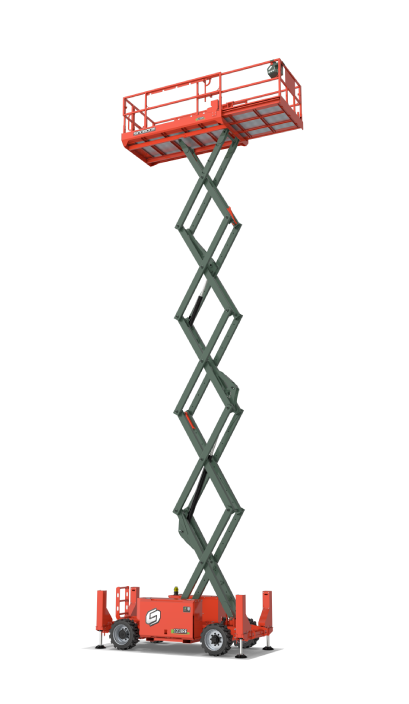

Sinoboom Rough Terrain Scissor Lift 1218RE (4069RE)

DIMENSIONS

• Max. Working Height: 14.2 m

• Max. Platform Height: 12.2 m

• Max. Horizontal Extension: 1.5 m

• Overall Length (Stowed):

  • 3.80 m (with outriggers)

  • 3.19 m (without outriggers)

• Overall Width (Stowed): 1.77 m

• Overall Height (Stowed, Rail Folded): 2.11 m

• Overall Height (Stowed, Rail Unfolded): 2.75 m

• Wheelbase: 2.28 m

• Ground Clearance: 0.22 m

• Platform Dimensions (L × W × H):
  2.80 × 1.60 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants:

  • Indoor: 3 persons

  • Outdoor: 2 persons

• Platform Capacity: 365 kg

• Drive Speed (Stowed): 0 – 6.0 km/h

• Drive Speed (Raised): 0 – 0.48 km/h

• Elevation Time (Unloaded): 55 – 65 s

• Descent Time (Unloaded): 50 – 60 s

• Gradeability: 35%

• Turning Radius (Inside / Outside):

  • 2.11 m / 4.60 m

• Tilt Rating:

  • Front to Back: 3°

  • Side to Side (with outriggers, telescoping in/out): 2° / 0.8°

• Maximum Outrigger Leveling:

  • Side to Side: 11.7°

  • Front to Back: 5.3° (front) / 4.2° (rear)

• Tires: 26 × 12–16.5, solid, foam-filled

POWER

• Battery: 48 V, 390 Ah

• Power Source: 48 V DC

• Drive Mode: Electric drive

• Hydraulic System Capacity: 72 L

GENERAL

• Machine Weight:

  • 5,580 kg (with outriggers)

  • 5,110 kg (without outriggers)

• Standards Compliance: CE / ANSI / EAC
