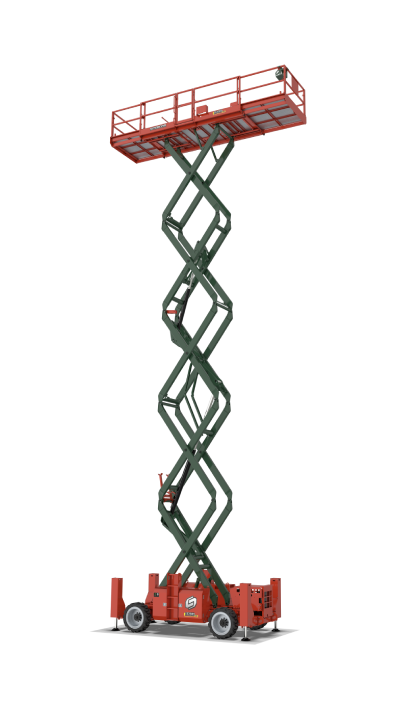

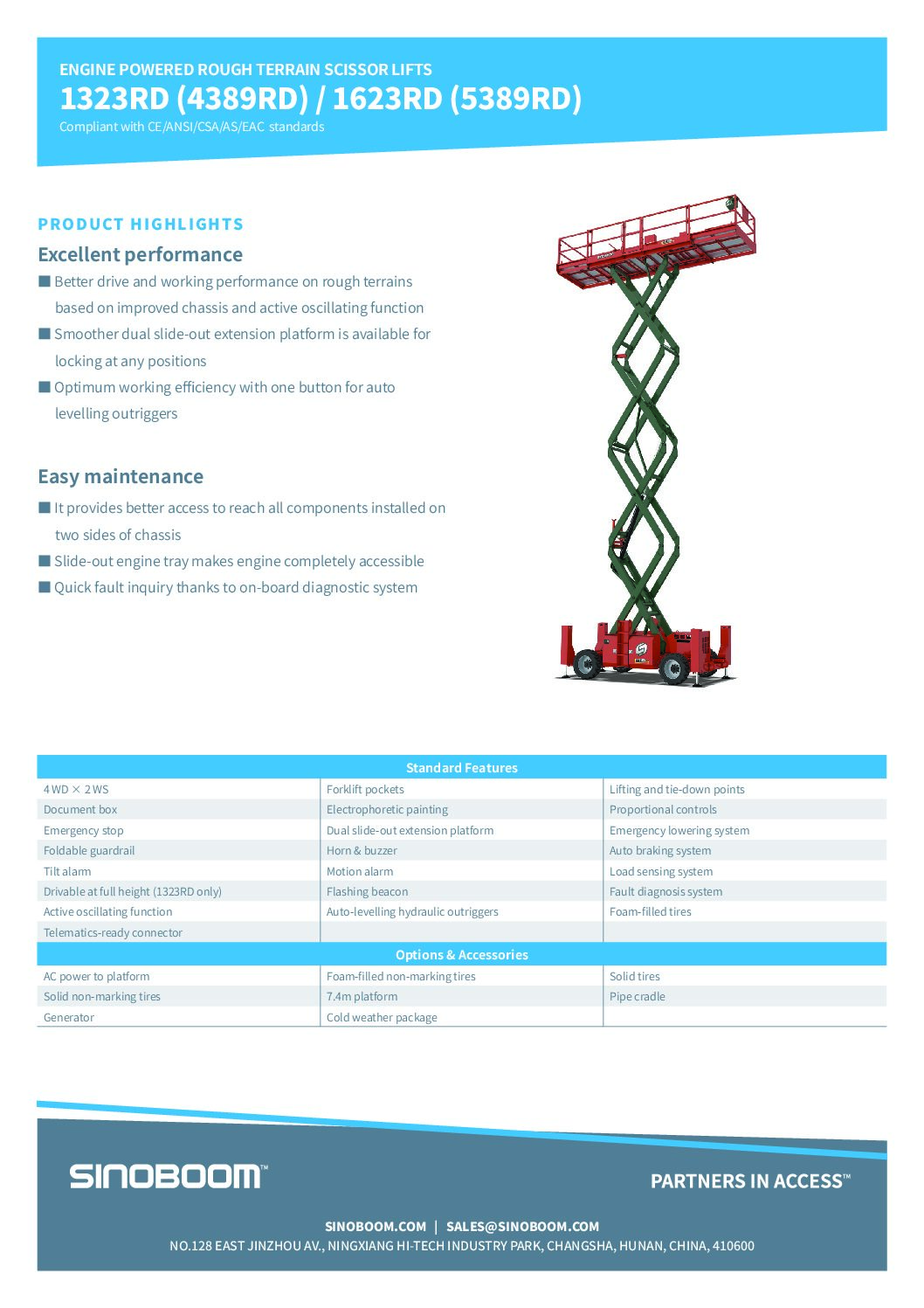

Sinoboom Rough Terrain Scissor Lift 1623RD (5389RD)

PRODUCT HIGHLIGHTS

Easy Maintenance

• Integrated pipeline layout for quick troubleshooting

• Double-door design for easy access and spacious maintenance area

• Drawer-type engine compartment for simplified servicing

Strong Off-Road Performance

• Up to 40% gradeability, suitable for demanding outdoor applications

• Stable travel performance on uneven and pothole-damaged ground

Excellent Performance

• High platform capacity for increased jobsite efficiency

• Two-way extendable platform for larger working area

• Wide-angle tilt capability with one-touch outrigger leveling

DIMENSIONS

• Max. Working Height: 18.2 m

• Max. Platform Height: 16.2 m

• Max. Horizontal Extension:

  • 1.5 m

  • 1.2 m

• Overall Length (Stowed):

  • 4.88 m (with / without outriggers)

• Overall Width (Stowed): 2.31 m

• Overall Height (Stowed, Rail Folded): 2.42 m

• Overall Height (Stowed, Rail Unfolded): 3.18 m

• Wheelbase: 2.85 m

• Ground Clearance: 0.36 m

• Platform Dimensions (L × W × H):

  • 6.5 m platform: 3.98 × 1.83 × 1.10 m

  • 7.4 m platform: 4.84 × 1.82 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants:

  • Indoor: 4 persons

  • Outdoor: 4 persons

• Platform Capacity: 680 kg

• Drive Speed (Stowed):

  • 6.1 km/h (Yanmar engine)

  • 5.0 km/h (Kubota engine)

• Drive Speed (Raised): 1.1 km/h

• Elevation Time (Unloaded): 70 – 90 s

• Descent Time (Unloaded): 45 – 55 s

• Gradeability: 40%

• Turning Radius (Inside / Outside):

  • 2.2 m / 5.3 m

• Tilt Rating:

  • Front to Back: 3°

  • Side to Side (with outriggers, telescoping in/out): 2°

• Maximum Outrigger Leveling:

  • Side to Side: 12°

  • Front to Back: 7°

• Tires: 315/55D20, foam-filled

POWER

• Engine Options:

  • Yanmar 4TNV88C-DFLT, 35.5 kW (EPA Tier 4 / EU Stage 5)

  • Yanmar 4TNV88-ZCDCSL, 35.3 kW (China Stage 4)

  • Kubota D1105-E4B-EU-X1, 18.2 kW

  • Kubota V2403-CR-TIE4B-SPB-1, 39.6 kW (EPA Tier 4)

• Drive Mode: 4WD × 2WS

• Fuel Tank Capacity (Diesel): 110 L

• Hydraulic System Capacity: 107 L

GENERAL

• Machine Weight:

  • 8,210 kg (with outriggers)

  • 8,000 kg (without outriggers)

• Standards Compliance: CE / ANSI / CSA / AS / EAC
