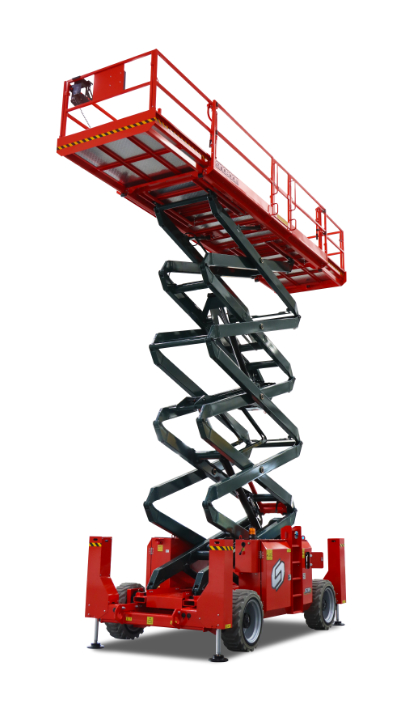

Sinoboom Rough Terrain Scissor Lift 1623RE (5389RE)

DIMENSIONS

• Max. Working Height: 18.2 m

• Max. Platform Height: 16.2 m

• Max. Horizontal Extension:

  • 1.5 m

  • 1.2 m

• Overall Length (Stowed): 4.88 m

• Overall Width (Stowed): 2.28 m

• Overall Height (Stowed, Rail Folded): 2.42 m

• Overall Height (Stowed, Rail Unfolded): 3.18 m

• Wheelbase: 2.84 m

• Ground Clearance: 0.36 m

• Platform Dimensions (L × W × H):

  • Standard Platform: 3.96 × 1.82 × 1.10 m

  • Extended Platform: 4.84 × 1.82 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants:

  • Indoor: 4 persons

  • Outdoor: 4 persons

• Platform Capacity: 680 kg

• Drive Speed (Stowed): 0 – 5.3 km/h

• Drive Speed (Raised): 0 – 1.1 km/h

• Elevation Time (Unloaded): 70 – 90 s

• Descent Time (Unloaded): 45 – 55 s

• Gradeability: 40%

• Turning Radius (Inside / Outside):

  • 2.20 m / 5.30 m

• Tilt Rating:

  • Front to Back: 3°

  • Side to Side (with outriggers, telescoping in/out): 2° / 0.5°

• Maximum Outrigger Leveling:

  • Side to Side: 12°

  • Front to Back: 7°

• Tires: 33 × 12–20, solid

POWER

• Battery Options:

  • 48 V, 480 Ah (lead-acid)

  • 51.2 V, 500 Ah (lithium)

• Power Source: 48 V DC

• Drive Mode: Electric drive

• Hydraulic System Capacity: 110 L

GENERAL

• Machine Weight:

  • 8,800 kg (with outriggers)

  • 9,190 kg (without outriggers)

• Standards Compliance: GB / CE / ANSI / EAC
