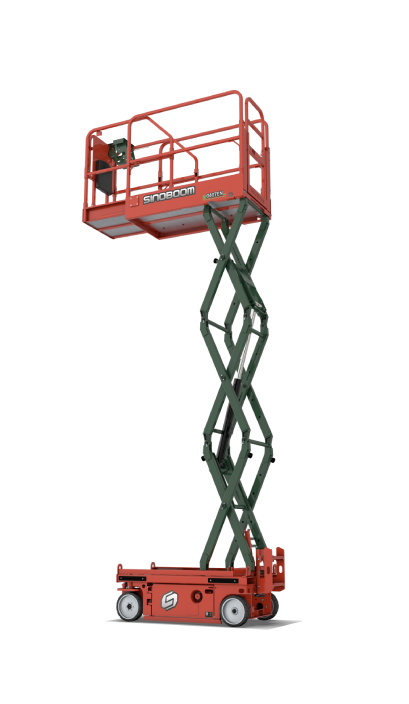

Sinoboom Electric Scissor Lift 0407EN (1530EN)

DIMENSIONS

• Max. Working Height (Indoor / Outdoor):

  • 6.3 m / 5.8 m

• Max. Platform Height (Indoor / Outdoor):

  • 4.3 m / 3.8 m

• Max. Horizontal Extension: 0.6 m

• Overall Length (Stowed):

  • 1.47 m (ladder folded)

  • 1.58 m (ladder unfolded)

• Overall Width (Stowed): 0.78 m

• Overall Height (Stowed, Rail Folded): 1.55 m

• Overall Height (Stowed, Rail Unfolded): 1.91 m

• Wheelbase: 1.14 m

• Ground Clearance:

  • 0.061 m (pothole guard stowed)

  • 0.02 m (pothole guard deployed)

• Platform Dimensions (L × W × H):
  1.41 × 0.76 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants (Indoor / Outdoor):

  • 2 persons / 1 person

• Platform Capacity: 230 kg

• Lift Extension Capacity: 120 kg

• Drive Speed (Stowed): 0 – 4.0 km/h

• Drive Speed (Raised): 0 – 0.5 km/h

• Elevation Time (Unloaded): 20 – 23 s

• Descent Time (Unloaded): 26 – 30 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0.1 m / 1.48 m

• Tilt Rating (Front–Back / Side–Side):

  • 3° / 1.5°

• Tires: 280 × 76 mm, solid

POWER

• Batteries:

  • 24 V, 120 Ah (20 hr, lead-acid)

• Power Source: 24 V DC, 2.2 kW

• Drive Motor: 24 V DC, 0.4 kW

• Charger Input: 100 – 240 V AC

• Charger Output: 15 A

• Hydraulic System Capacity: 4 L

GENERAL

• Machine Weight (Indoor / Outdoor): 920 kg

• Standards Compliance: CE / ANSI / CSA / AS / EAC
