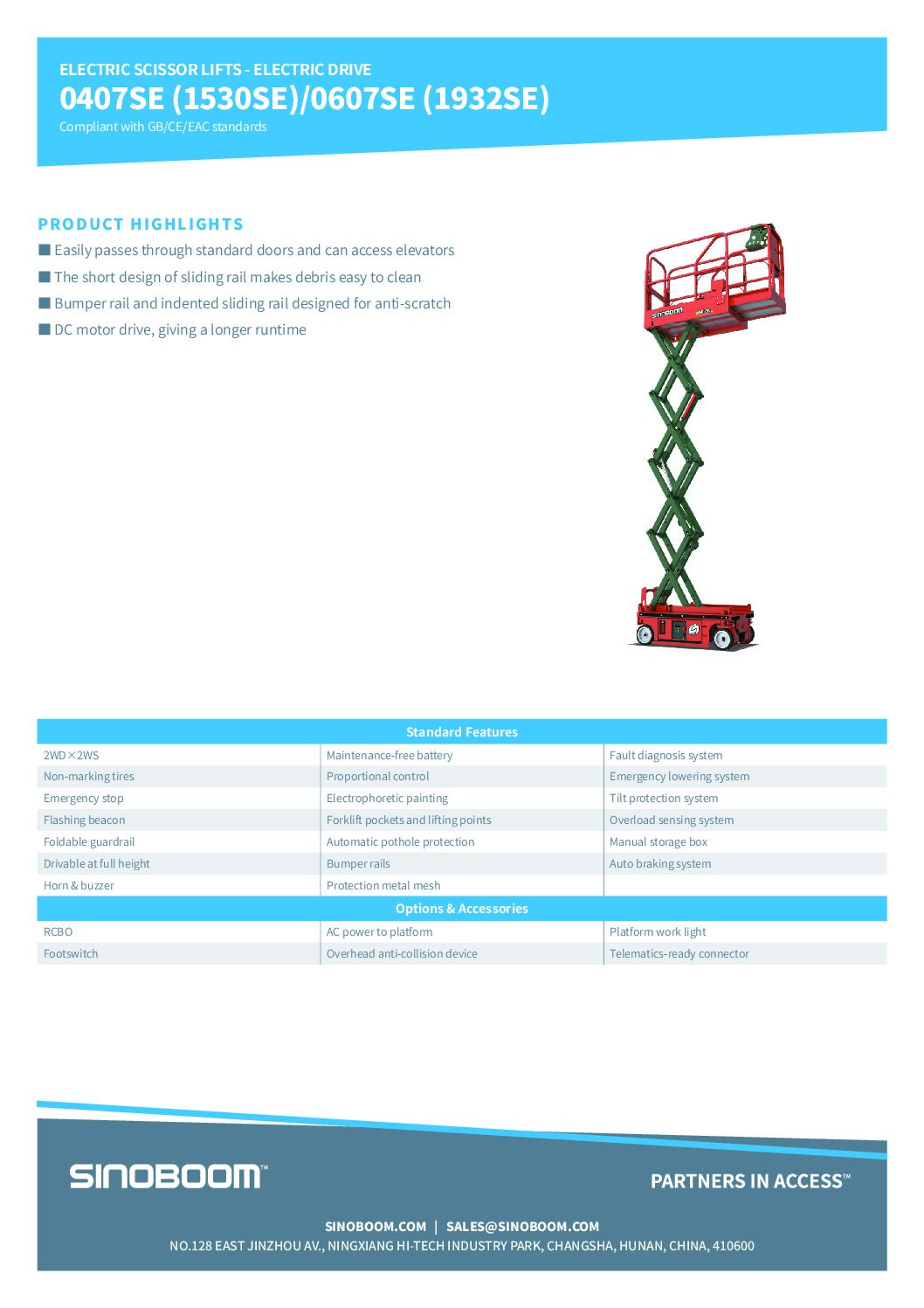

Sinoboom Electric Scissor Lift 0607SE (1932SE)

DIMENSIONS

• Max. Working Height (Indoor / Outdoor):

  • 7.6 m / 6.6 m

• Max. Platform Height (Indoor / Outdoor):

  • 5.6 m / 4.6 m

• Max. Horizontal Extension: 0.6 m

• Overall Length (Stowed): 1.52 m

• Overall Width (Stowed): 0.81 m

• Overall Height (Stowed, Rail Folded): 1.77 m

• Overall Height (Stowed, Rail Unfolded): 2.10 m

• Wheelbase: 1.13 m

• Ground Clearance:

  • 0.065 m (pothole guard stowed)

  • 0.023 m (pothole guard deployed)

• Platform Dimensions (L × W × H):
  1.37 × 0.70 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants (Indoor / Outdoor):

  • 2 persons / 1 person

• Platform Capacity: 230 kg

• Lift Extension Capacity: 120 kg

• Drive Speed (Stowed): 0 – 4.0 km/h

• Drive Speed (Raised): 0 – 0.5 km/h

• Elevation Time (Unloaded): 24 – 28 s

• Descent Time (Unloaded): 25 – 30 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0.45 m / 1.60 m

• Tilt Rating (Front–Back / Side–Side):

  • 3° / 1.5°

• Tires: 255 × 76 mm, solid

POWER

• Battery Options:

  • 24 V, 100 Ah (3 hr)

  • 24 V, 120 Ah (20 hr)

• Power Source: 24 V DC

• Drive Mode: 2WD × 2WS

• Charger Input: 100 – 240 V AC

• Charger Output: 15 A

• Hydraulic System Capacity: 4 L

GENERAL

• Machine Weight (Indoor / Outdoor): 1,210 kg

• Standards Compliance: GB / CE / EAC
