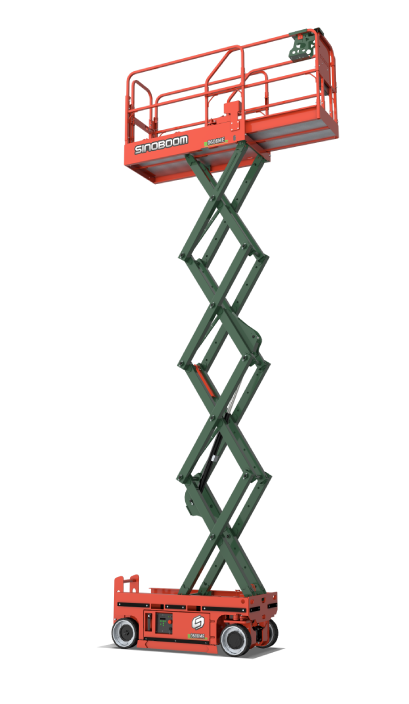

Sinoboom Electric Scissor Lift 0608ME ALL (1932ME ALL)

DIMENSIONS

• Max. Working Height: 7.8 m

• Max. Platform Height: 5.8 m

• Max. Horizontal Extension: 0.9 m

• Overall Length (Stowed): 1.80 m

• Overall Width (Stowed): 0.81 m

• Overall Height (Stowed, Rail Folded): 1.88 m

• Overall Height (Stowed, Rail Unfolded): 2.14 m

• Wheelbase: 1.334 m

• Ground Clearance:

  • 0.061 m (pothole guard stowed)

  • 0.024 m (pothole guard deployed)

• Platform Dimensions (L × W × H):
  1.64 × 0.76 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants (Indoor / Outdoor):

  • 2 persons / 1 person

• Platform Capacity: 230 kg

• Lift Extension Capacity: 120 kg

• Drive Speed (Stowed): 0 – 4.0 km/h

• Drive Speed (Raised): 0 – 0.5 km/h

• Elevation Time (Unloaded): 25 – 30 s

• Descent Time (Unloaded): 25 – 30 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0 / 1.62 m

• Tilt Rating (Front–Back / Side–Side):

  • 3° / 1.5°

• Tires: 323 × 100 mm, solid, non-marking

POWER

• Battery:

  • 24 V, 220 Ah (AGM)

• Power Source: 24 V AC, 0.6 kW

• Drive Mode: 2WD × 2WS

• Charger Input: 100 – 240 V AC

• Charger Output: 30 A

GENERAL

• Machine Weight (Indoor / Outdoor): 1,600 kg

• Standards Compliance: CE / ANSI / CSA
