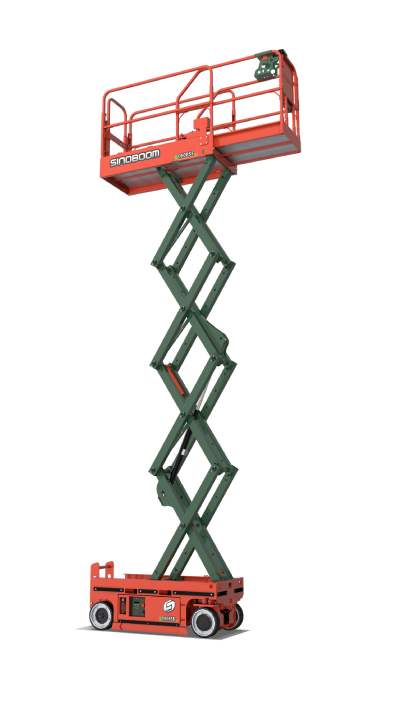

Sinoboom Electric Scissor Lift 0608SE (1930SE)

PRODUCT HIGHLIGHTS

MORE RELIABLE PERFORMANCE

• Integrated bumper rail protection for enhanced durability

REDUCED MAINTENANCE COSTS

• Fast and convenient transportation with two-way forklift pockets

• Lower total cost of ownership through highly interchangeable components

EFFICIENT AND ENVIRONMENTALLY FRIENDLY

• High energy efficiency

• Zero emissions, environmentally friendly operation

DIMENSIONS

• Max. Working Height: 7.8 m

• Max. Platform Height: 5.8 m

• Max. Horizontal Extension: 0.9 m

• Overall Length (Stowed): 1.80 m

• Overall Width (Stowed): 0.79 m

• Overall Height (Stowed, Rail Folded): 1.88 m

• Overall Height (Stowed, Rail Unfolded): 2.14 m

• Wheelbase: 1.334 m

• Ground Clearance:

  • 0.075 m (pothole guard stowed)

  • 0.019 m (pothole guard deployed)

• Platform Dimensions (L × W × H):
  1.64 × 0.76 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants:

  • 2 persons (indoor use only)

• Platform Capacity: 230 kg

• Lift Extension Capacity: 120 kg

• Drive Speed (Stowed): 0 – 4.0 km/h

• Drive Speed (Raised): 0 – 0.5 km/h

• Elevation Time (Unloaded): 15 – 20 s

• Descent Time (Unloaded): 25 – 30 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0 / 1.49 m

• Tilt Rating (Front–Back / Side–Side):

  • 3° / 1.5°

• Tires: 323 × 100 mm, solid

POWER

• Battery Options:

  • 24 V, 170 Ah (3 hr, lead-acid)

  • 24 V, 220 Ah (20 hr, lead-acid)

  • 25.6 V, 156 Ah (1 hr, lithium)

• Power Source: 24 V DC, 2.2 kW

• Drive Mode: 2WD × 2WS

• Charger Input: 100 – 240 V AC

• Charger Output: 30 A

• Hydraulic System Capacity: 6 L

GENERAL

• Machine Weight (Indoor / Outdoor): 1,575 kg

• Standards Compliance: CE / ANSI / CSA / EAC
