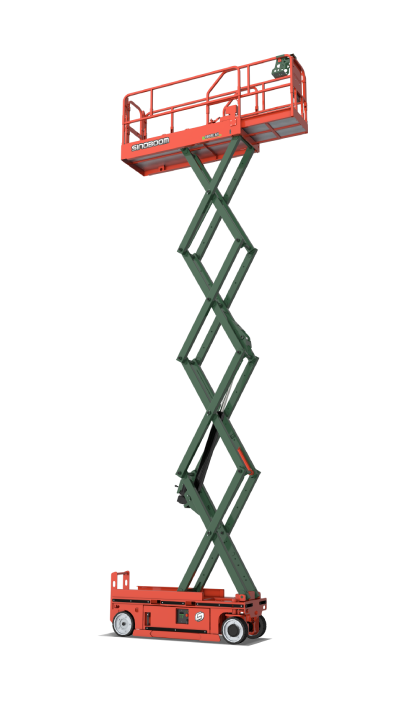

Sinoboom Electric Scissor Lift 0808E ALL (2732E ALL)

DIMENSIONS

• Max. Working Height (Indoor / Outdoor):

  • 10.1 m / 8.0 m

• Max. Platform Height (Indoor / Outdoor):

  • 8.1 m / 6.0 m

• Max. Horizontal Extension: 0.9 m

• Overall Length (Stowed): 2.46 m

• Overall Width (Stowed): 0.83 m

• Overall Height (Stowed, Rail Folded): 1.96 m

• Overall Height (Stowed, Rail Unfolded): 2.36 m

• Wheelbase: 1.88 m

• Ground Clearance:

  • 0.10 m (pothole guard stowed)

  • 0.025 m (pothole guard deployed)

• Platform Dimensions (L × W × H):
  2.30 × 0.80 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants (Indoor / Outdoor):

  • 2 persons / 1 person

• Platform Capacity: 250 kg

• Lift Extension Capacity: 120 kg

• Drive Speed (Stowed): 0 – 4.0 km/h

• Drive Speed (Raised): 0 – 0.5 km/h

• Elevation Time (Unloaded): 40 – 45 s

• Descent Time (Unloaded): 40 – 45 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0.61 m / 2.20 m

• Tilt Rating (Front–Back / Side–Side):

  • 3° / 1.5°

• Tires: 380 × 125 mm, solid, non-marking

POWER

• Batteries:

  • 24 V, 220 Ah (20 hr, lead-acid)

• Drive Mode: 24 V AC, 0.7 kW

• Charger Input: 100 – 240 V AC

• Charger Output: 36 A

GENERAL

• Machine Weight (Indoor / Outdoor): 2,265 kg

• Standards Compliance: CE / ANSI / CSA
