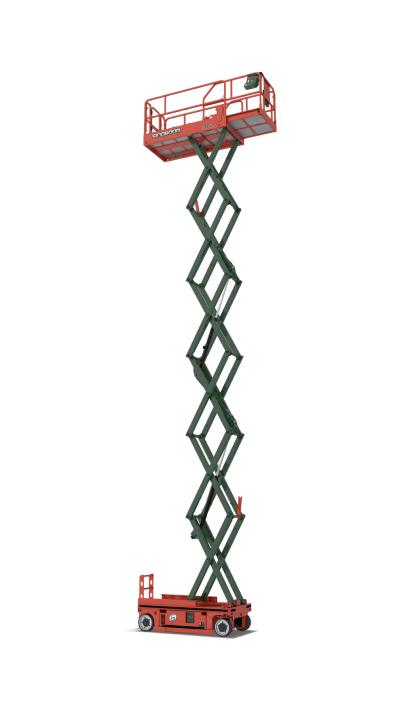

Sinoboom Electric Scissor Lift 1212E (4046E)

DIMENSIONS

• Max. Working Height (Indoor / Outdoor):

  • 13.9 m / 10.0 m

• Max. Platform Height (Indoor / Outdoor):

  • 11.9 m / 8.0 m

• Max. Horizontal Extension: 0.9 m

• Overall Length (Stowed): 2.45 m

• Overall Width (Stowed): 1.17 m

• Overall Height (Stowed, Rail Folded): 1.98 m

• Overall Height (Stowed, Rail Unfolded): 2.60 m

• Wheelbase: 1.88 m

• Ground Clearance:

  • 0.10 m (pothole guard stowed)

  • 0.025 m (pothole guard deployed)

• Platform Dimensions (L × W × H):
  2.30 × 1.15 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants (Indoor / Outdoor):

  • 2 persons / 1 person

• Platform Capacity: 320 kg

• Lift Extension Capacity: 120 kg

• Drive Speed (Stowed): 0 – 4.0 km/h

• Drive Speed (Raised): 0 – 0.8 km/h

• Elevation Time (Loaded): 63 – 68 s

• Descent Time (Loaded): 55 – 60 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0 / 2.35 m

• Tilt Rating (Front–Back / Side–Side):

  • 3° / 1.5°

• Tires: 380 × 125 mm, solid

POWER

• Battery Options:

  • 24 V, 200 Ah (3 hr, lead-acid)

  • 24 V, 280 Ah (20 hr, lead-acid)

  • 25.6 V, 200 Ah (1 hr, lithium)

• Power Source: 24 V DC, 3.3 kW

• Drive Options:

  • 24 V DC, 0.85 kW

  • 24 V AC, 0.7 kW

• Charger Input: 100 – 240 V AC

• Charger Output: 30 A

• Hydraulic System Capacity: 15 L

GENERAL

• Machine Weight (Indoor / Outdoor): 3,210 kg

• Standards Compliance: CE / ANSI / CSA / AS / EAC / KCS
