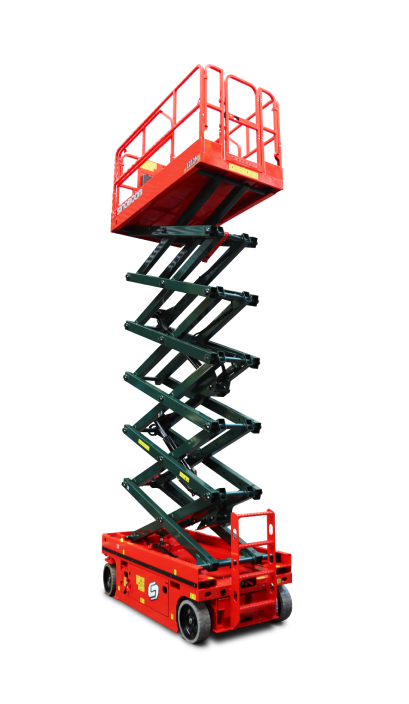

Sinoboom Hydraulic Scissor Lift 1212N (4046N)

DIMENSIONS

• Max. Working Height (Indoor / Outdoor):

  • 13.9 m / 11.0 m

• Max. Platform Height (Indoor / Outdoor):

  • 11.9 m / 9.0 m

• Max. Horizontal Extension: 0.9 m

• Overall Length (Stowed): 2.39 m

• Overall Width (Stowed): 1.18 m

• Overall Height (Stowed, Rail Folded): 1.98 m

• Overall Height (Stowed, Rail Unfolded): 2.62 m

• Wheelbase: 1.85 m

• Ground Clearance: 0.088 m

• Platform Dimensions (L × W × H):
  2.25 × 1.15 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants (Indoor / Outdoor):

  • 2 persons / 1 person

• Platform Capacity: 320 kg

• Drive Speed (Stowed): 3.2 km/h

• Drive Speed (Raised): 0.5 km/h

• Elevation Time (Unloaded): 63 – 68 s

• Descent Time (Unloaded): 44 – 49 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0.18 m / 2.35 m

• Tilt Rating (Front–Back / Side–Side):

  • 3° / 1.5°

• Tires: 380 × 125 mm, solid

POWER

• Battery Options:

  • 24 V, 220 Ah (AGM, maintenance-free)

  • 25.6 V, 200 Ah (lithium)

• Power Source: 24 V DC

• Drive Mode: 2WD, front-wheel drive

• Brake: Dual rear-wheel brakes

• Charger Input: 100 – 240 V AC

• Charger Output: 30 A

• Hydraulic System Capacity: 24.5 L

GENERAL

• Machine Weight (Indoor / Outdoor): 2,880 kg

• Standards Compliance: CE / ANSI / EAC
