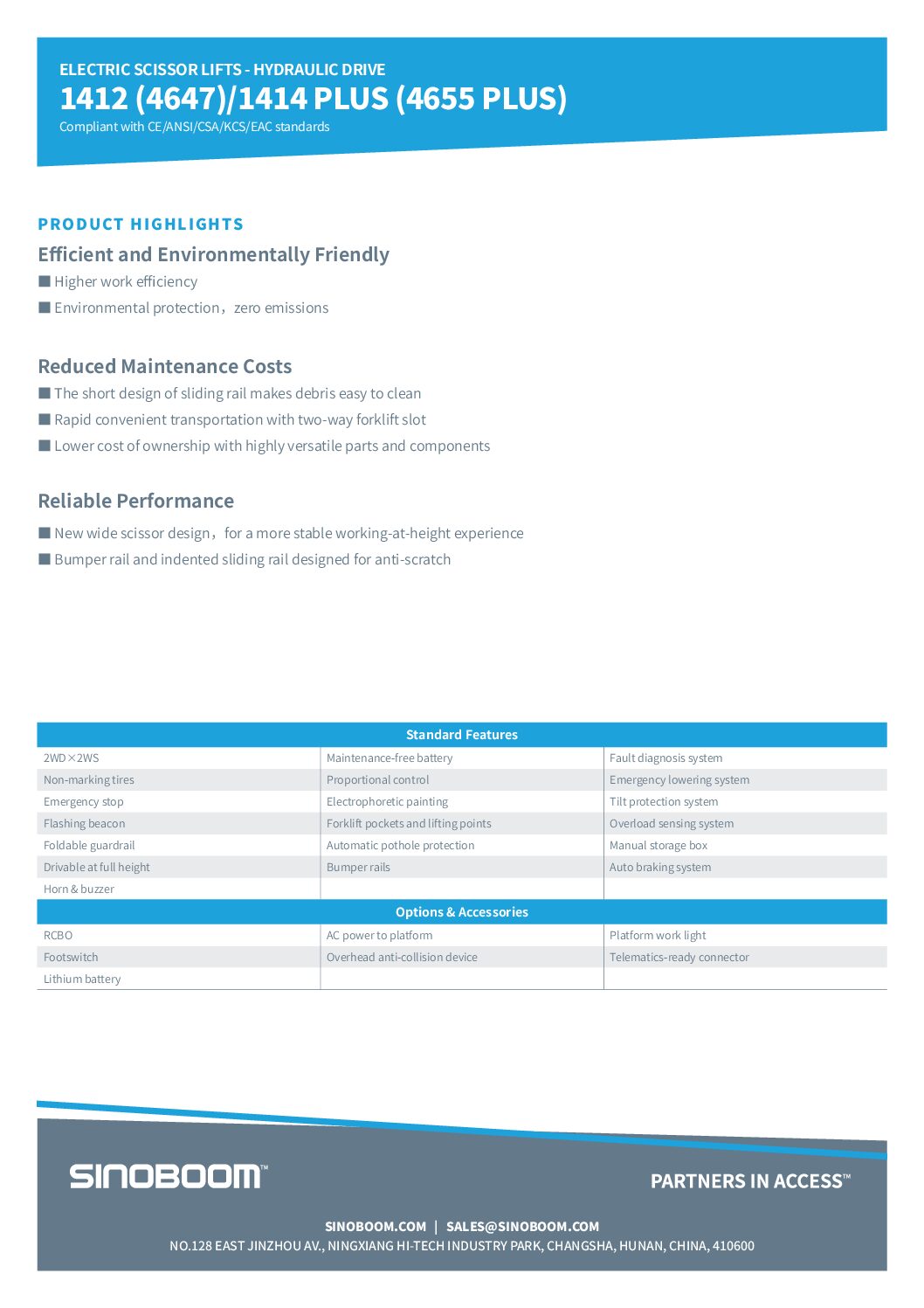

Sinoboom Hydraulic Scissor Lift 1414 PLUS (4655 PLUS)

PRODUCT HIGHLIGHTS

MORE RELIABLE PERFORMANCE

• Battery voltage early-warning system to protect battery life

• Bumper rail protection

• Pothole guard monitoring and horizontal protection system for stable operation

REDUCED MAINTENANCE COSTS

• Double-door design for easy maintenance access

• Fault troubleshooting support for fast diagnostics

• High-quality components for long service life

FLEXIBLE OPERATION

• Small turning radius for efficient operation in narrow spaces

• Standard forklift pockets for easy transportation

• Folding guardrails for convenient transport and storage

DIMENSIONS

• Max. Working Height (Indoor / Outdoor):

  • 15.8 m / 10.5 m

• Max. Platform Height (Indoor / Outdoor):

  • 13.8 m / 8.5 m

• Max. Horizontal Extension: 0.9 m

• Overall Length (Stowed): 2.78 m

• Overall Width (Stowed): 1.41 m

• Overall Height (Stowed, Rail Folded): 1.98 m

• Overall Height (Stowed, Rail Unfolded): 2.60 m

• Wheelbase: 2.22 m

• Ground Clearance:

  • 0.095 m (pothole guard stowed)

  • 0.025 m (pothole guard deployed)

• Platform Dimensions (L × W × H):
  2.64 × 1.30 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants (Indoor / Outdoor):

  • 2 persons / 1 person

• Platform Capacity: 350 kg

• Drive Speed (Stowed): 0 – 3.2 km/h

• Drive Speed (Raised): 0 – 0.8 km/h

• Elevation Time (Unloaded): 75 – 85 s

• Descent Time (Unloaded): 55 – 63 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0 / 2.64 m

• Tilt Rating (Front–Back / Side–Side):

  • 3° / 1.5°

• Tires: 380 × 125 mm, solid

POWER

• Battery Options:

  • 24 V, 280 Ah (lead-acid)

  • 25.6 V, 200 Ah (lithium)

• Power Source: 24 V DC, 4.5 kW

• Drive Mode: 2WD × 2WS

• Brake: Dual rear-wheel brakes

• Charger Input: 100 – 240 V AC

• Charger Output: 30 A

• Hydraulic System Capacity: 15 L

GENERAL

• Machine Weight (Indoor / Outdoor): 3,560 kg

• Standards Compliance: CE / ANSI / CSA / EAC
