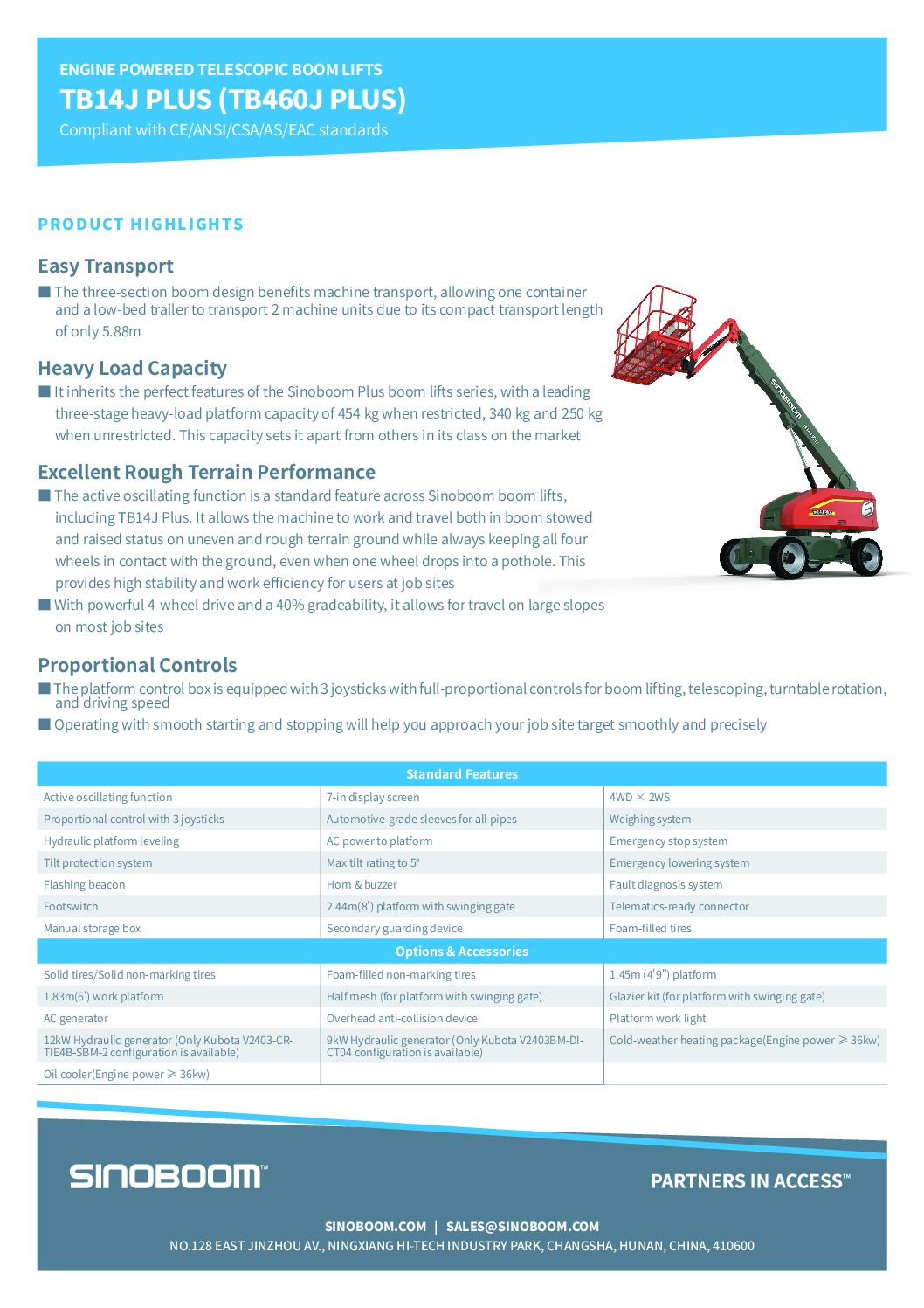

Sinoboom Telescopic Boom Lift TB14J PLUS (TB460J PLUS)

DIMENSIONS

Max Platform Height：14.1 m
Max Working Height：16.1 m
Max Horizontal Extension：9.1 m / 10 m / 10.9 m
Length – Stowed：7.99 m
Width：2.3 m
Height – Stowed：2.49 m
Wheelbase：2.3 m
Ground Clearance：0.35 m
Platform Dimensions (L × W × H)：2.44 × 0.91 × 1.10 m

PERFORMANCE

Platform Capacity (Unrestricted)：250 kg / 340 kg
Platform Capacity (Restricted)：454 kg
Turntable Rotation：360° Continuous
Platform Rotation：160°
Drive Speed – Stowed：0 – 5.5 km/h
Drive Speed – Raised：0 – 0.8 km/h
Gradeability：40%
Turning Radius – Inside：1.82 m
Turning Radius – Outside：4.78 m
Turntable Tailswing：0.98 m
Tilt Rating：5°
Drive / Steer：4WD × 2WS
Tyres：33×12D610 (Foam-filled)

POWER

Engine Option 1：18.4 kW @ 3000 rpm (Yanmar, EU Stage V / EPA Tier 4F)
Engine Option 2：18.2 kW @ 3000 rpm (Kubota D1105, EU Stage V / EPA Tier 4F)
Engine Option 3：43.2 kW @ 2400 rpm (Kubota V2403-CR, EPA Tier 4)
Engine Option 4：36 kW @ 2600 rpm (Kubota V2403BM-DI, China IV)
Auxiliary Power Unit：12 V DC
Fuel Tank Capacity (Diesel)：100 L
Hydraulic Tank Capacity：120 L

OTHER

Machine Weight (18.4 kW Engine)：7,300 kg
Machine Weight (36 kW Engine)：7,560 kg
Standards Compliance：CE / ANSI / CSA / AS / EAC
