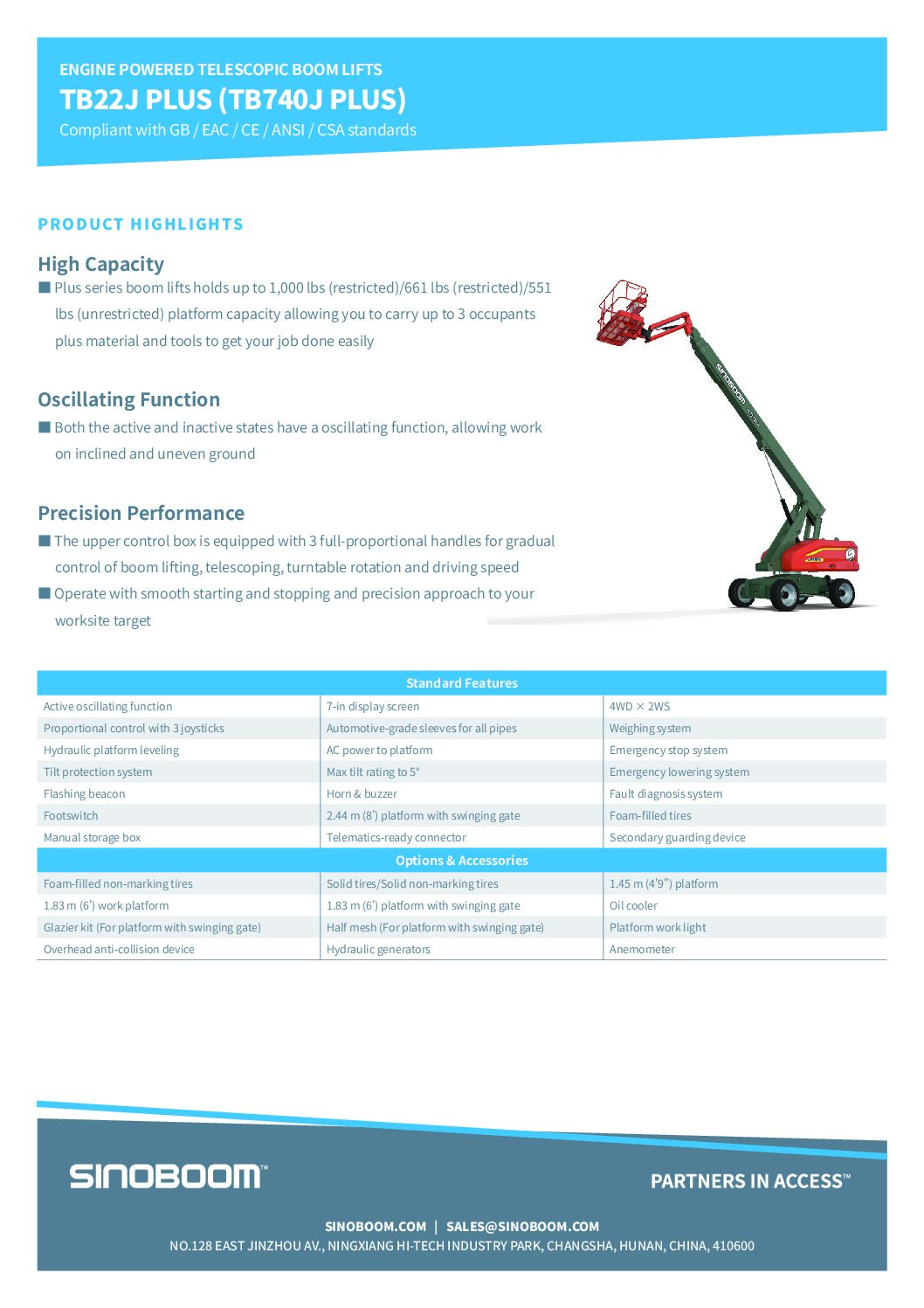

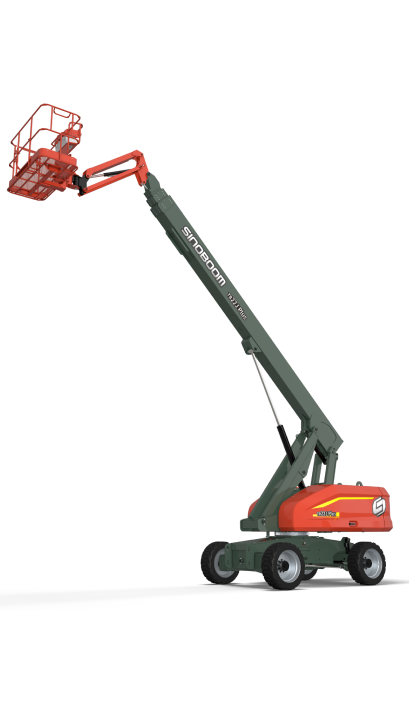

Sinoboom Telescopic Boom Lift TB22J PLUS (TB740J PLUS)

PRODUCT HIGHLIGHTS

Optimized Working Height：Working heights from 22 m to 24 m, suitable for most construction and industrial applications
Precision Performance：Proportional control, boom swing, extension, turntable rotation and smooth drive for precise positioning
Powerful Off-Road Performance：45% gradeability with anti-skid control for strong off-road capability
Smart Maintenance：Smart screen display for real-time machine status, fault diagnosis and parameter monitoring

DIMENSIONS

Max Platform Height：22.5 m
Max Working Height：24.5 m
Max Horizontal Extension：14.0 m (Restricted) / 15.8 m (Restricted) / 16.7 m (Unrestricted)
Length – Stowed：10.68 m
Width：2.49 m
Height – Stowed：2.81 m
Wheelbase：2.49 m
Ground Clearance：0.44 m
Platform Dimensions (L × W × H)：2.44 × 0.91 × 1.10 m

PERFORMANCE

Platform Capacity (Unrestricted)：250 kg
Platform Capacity (Restricted)：300 kg / 454 kg
Turntable Rotation：360° (Continuous)
Platform Rotation：160°
Drive Speed – Stowed：0 – 4.8 km/h
Drive Speed – Raised：0 – 1.1 km/h
Gradeability：45%
Turning Radius – Inside：2.4 m
Turning Radius – Outside：5.55 m
Turntable Tailswing：1.45 m
Tilt Rating：5°
Drive / Steer：4WD × 2WS
Tyres：355/55D625 (Foam-filled) / 36×14-20 (Solid)

POWER

Engine Options：
43 kW @ 2500 rpm (Cummins / China T3, EU Stage III)
36.4 kW @ 2600 rpm (TD2.9, EU Stage V / EPA Tier 4F)

Auxiliary Power Unit：12 V DC
Fuel Tank Capacity (Diesel)：150 L
Hydraulic Tank Capacity：180 L

OTHER

Machine Weight：12,225 kg
Standards Compliance：CE / ANSI / CSA / EAC
