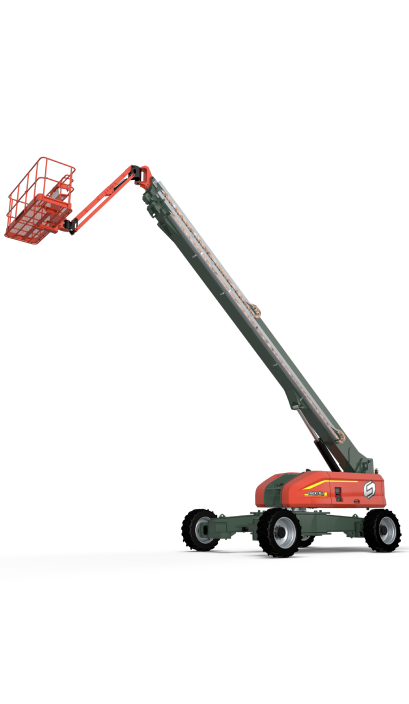

Sinoboom Telescopic Boom Lift TB42RJ PLUS (TB1370RJ PLUS)

DIMENSIONS

• Max Platform Height: 41.6 m

• Max Working Height: 43.6 m

• Max Horizontal Extension: 22.1 m / 23.0 m / 24.1 m (Restricted / Unrestricted)

• Length (Stowed): 15.24 m

• Width: 2.49 m

• Height (Stowed): 2.84 m

• Wheelbase: 4.4 m / 3.99 m (Outrigger retracted / extended)

• Ground Clearance: 0.43 m

• Platform Dimensions (L × W × H): 2.44 × 0.91 × 1.1 m

PERFORMANCE

• Platform Capacity (Unrestricted): 250 kg

• Platform Capacity (Restricted): 480 kg / 340 kg

• Turntable Rotation: 360° (Continuous)

• Platform Rotation: 180°

• Drive Speed (Stowed): 0 – 4.4 km/h

• Drive Speed (Raised): 0 – 0.7 km/h

• Turning Radius (Inside): 3.98 m (Outrigger retracted / extended)

• Turning Radius (Outside): 6.37 m / 5.22 m (Outrigger retracted / extended)

• Gradeability: 40%

• Turntable Tailswing: 2.32 m / 1.64 m (Outrigger retracted / extended)

• Tilt Rating: 5°

• Drive / Steer: 4WD × 4WS

• Tyres:
  445/65-24 (Solid)
  445/65-24 (Non-marking, solid)
  445.50D710 18PR (Foam-filled)
  445.50D710 20PR (Foam-filled)

POWER

• Engine Options:
  54 kW @ 2400 rpm – Cummins QSF2.8 (China T3 / EU Stage III)
  55.8 kW @ 2200 rpm – YCF3075 (China T4)
  55.4 kW @ 2600 rpm – Deutz TD2.9 L4 (EPA Tier 4F)

• Auxiliary Power Unit: 12V DC

• Fuel Tank Capacity (Diesel): 200 L

• Hydraulic Tank Capacity: 280 L

OTHER

• Machine Weight: 22,400 kg

• Standards Compliance: CE
