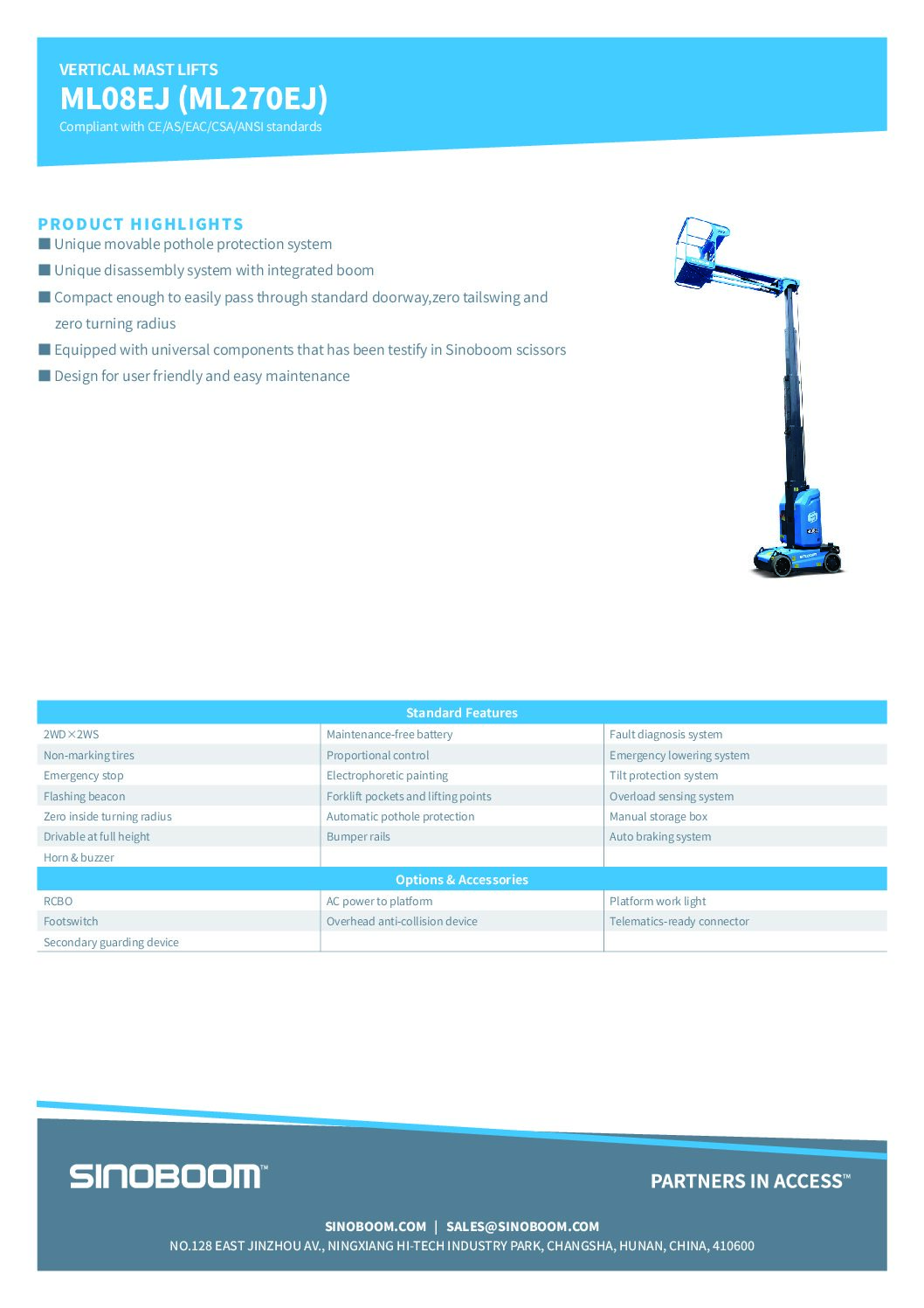

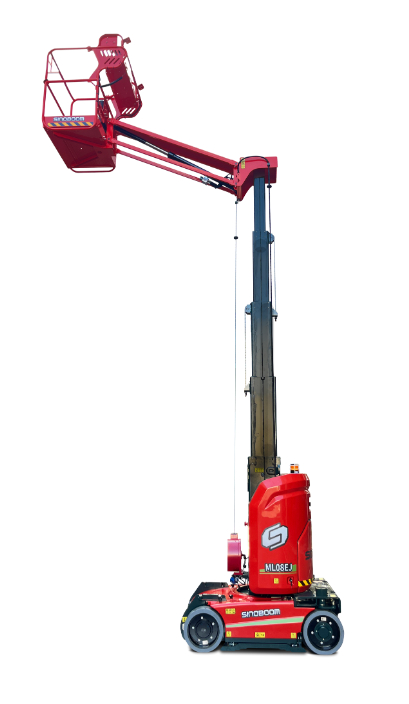

Sinoboom Vertical Mast Lift ML08EJ (ML270EJ)

PRODUCT HIGHLIGHTS

• Easy Access Through Standard Doorways
  Compact design allows passage through most standard doors, with zero tail swing.

• Integrated Boom Disassembly System
  Unique disassembly structure with integrated boom for efficient transport and maintenance.

• Movable Pothole Protection System
  Active, movable pothole protection enhances stability during operation.

DIMENSIONS

• Maximum Platform Height: 8.3 m

• Maximum Working Height: 10.3 m

• Maximum Horizontal Reach: 3.3 m

• Turntable Rotation: 345°

• Vertical Jib Rotation: +70° / −50°

• Overall Height (Stowed): 1.99 m

• Overall Width (Stowed): 0.99 m

• Overall Length (Stowed): 2.97 m

• Wheelbase: 1.20 m

• Ground Clearance:

  • Pothole Guard Stowed: 0.06 m

  • Pothole Guard Deployed: 0.02 m

• Platform Dimensions (L × W × H):

  • 0.99 × 0.70 × 1.10 m

PERFORMANCE

• Platform Capacity: 200 kg

• Platform Occupancy (Indoor / Outdoor): 2 persons / 1 person

• Travel Speed (Stowed): 4.0 km/h

• Travel Speed (Raised): 0.6 km/h

• Elevation Time (Unloaded): 32–36 s

• Descent Time (Unloaded): 32–37 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0 / 1.55 m

• Tilt Rating (Front to Back / Side to Side): 3° / 3°

• Tires: Solid, 406 × 127 mm

POWER & HYDRAULICS

• Battery: 24 V, 240 Ah

• Power Source: 24 V DC, 4.0 kW

• Drive Configuration: 2WD × 2WS

• Brake System: 2 rear-wheel brakes

• Charger Input: 100–240 V AC

• Charger Output: 30 A

• Hydraulic Tank Capacity: 13 L

WEIGHT & COMPLIANCE

• Operating Weight: 2,678 kg

• Standards Compliance: CE / AS / EAC / CSA / ANSI
