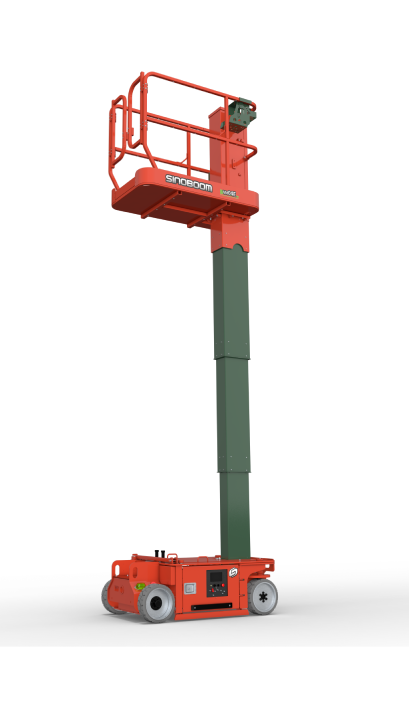

Sinoboom Vertical Mast Lift VM04E (VM120E)

PRODUCT HIGHLIGHTS

• Easy Maintenance
  Simplified structure for quick inspection and servicing.

• Electric Drive Maneuvering
  Environmentally friendly electric drive with smooth, precise control and high efficiency.

• AGM Maintenance-Free Battery
  High energy density AGM battery designed for long service life and minimal maintenance.

DIMENSIONS

• Maximum Working Height: 5.8 m

• Maximum Platform Height: 3.8 m

• Maximum Horizontal Extension: —

• Overall Length (Stowed): 1.38 m

• Overall Width (Stowed): 0.78 m

• Overall Height (Stowed): 1.66 m

• Wheelbase: 1.06 m

• Ground Clearance

  • Pothole Guard Stowed: 0.068 m

  • Pothole Guard Deployed: 0.015 m

• Platform Dimensions (L × W × H):

  • 1.35 × 0.74 × 1.10 m

PERFORMANCE

• Platform Capacity: 227 kg

• Platform Allowable Occupants (Indoor / Outdoor): 2 persons

• Travel Speed (Stowed): 4.0 km/h

• Travel Speed (Raised): 0.5 km/h

• Elevation Time (Unloaded): 15–20 s

• Descent Time (Unloaded): 20–25 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0.14 / 1.34 m

• Tilt Rating (Front to Back / Side to Side): 3° / 1.5°

• Tires:

  • Solid, non-marking

  • Front: 305 × 114 mm

  • Rear: 305 × 100 mm

POWER & DRIVE

• Battery: 24 V, 120 Ah (AGM, maintenance-free)

• Power Source: 24 V DC, 2.2 kW

• Drive Configuration: 2WD × 2WS

• Charger Input: 100–240 V AC

• Charger Output: 15 A

• Brake System: Rear-wheel braking

• Hydraulic Tank Capacity: 6 L

WEIGHT & COMPLIANCE

• Operating Weight: 780 kg

• Standards Compliance: CE / ANSI / CSA / AS / EAC
