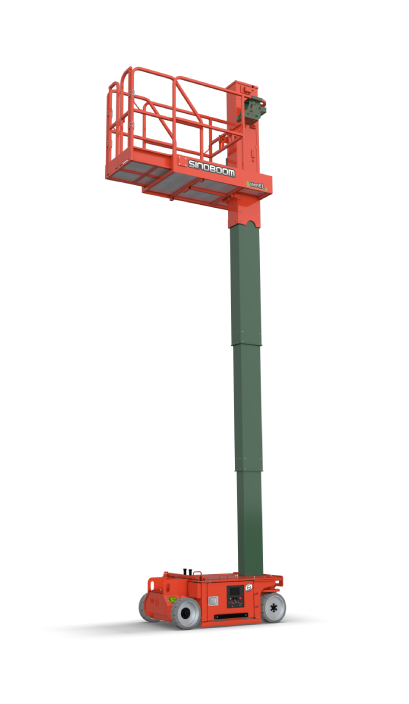

Sinoboom Vertical Mast Lift VM05EL (VM160EL)

DIMENSIONS

• Maximum Working Height

  • Indoor: 6.9 m

  • Outdoor: 5.7 m

• Maximum Platform Height

  • Indoor: 4.9 m

  • Outdoor: 3.7 m

• Maximum Horizontal Extension: 0.5 m

• Overall Length (Stowed): 1.38 m

• Overall Width (Stowed): 0.78 m

• Overall Height (Stowed): 1.99 m

• Wheelbase: 1.06 m

• Ground Clearance

  • Pothole Guard Stowed: 0.068 m

  • Pothole Guard Deployed: 0.015 m

• Platform Dimensions (L × W × H):

  • 1.34 × 0.74 × 1.10 m

PERFORMANCE

• Platform Capacity: 227 kg

• Platform Occupancy (Indoor / Outdoor): 1 person

• Travel Speed (Stowed): 0–4.0 km/h

• Travel Speed (Raised): 0–0.5 km/h

• Elevation Time (Rated Load): 24–28 s

• Descent Time (Rated Load): 24–28 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0.14 / 1.34 m

• Tilt Rating (Front to Back / Side to Side): 3° / 1.5°

• Tires:

  • Solid, non-marking

  • 305 × 100 mm or 305 × 114 mm

POWER & DRIVE

• Battery: 24 V, 120 Ah

• Power Source: 24 V DC, 2.2 kW

• Drive Configuration: 2WD × 2WS

• Charger Input: 100–240 V AC

• Charger Output: 15 A

• Hydraulic Tank Capacity: 6 L

WEIGHT & COMPLIANCE

• Operating Weight: 970 kg

• Standards Compliance: CE / ANSI / CSA
