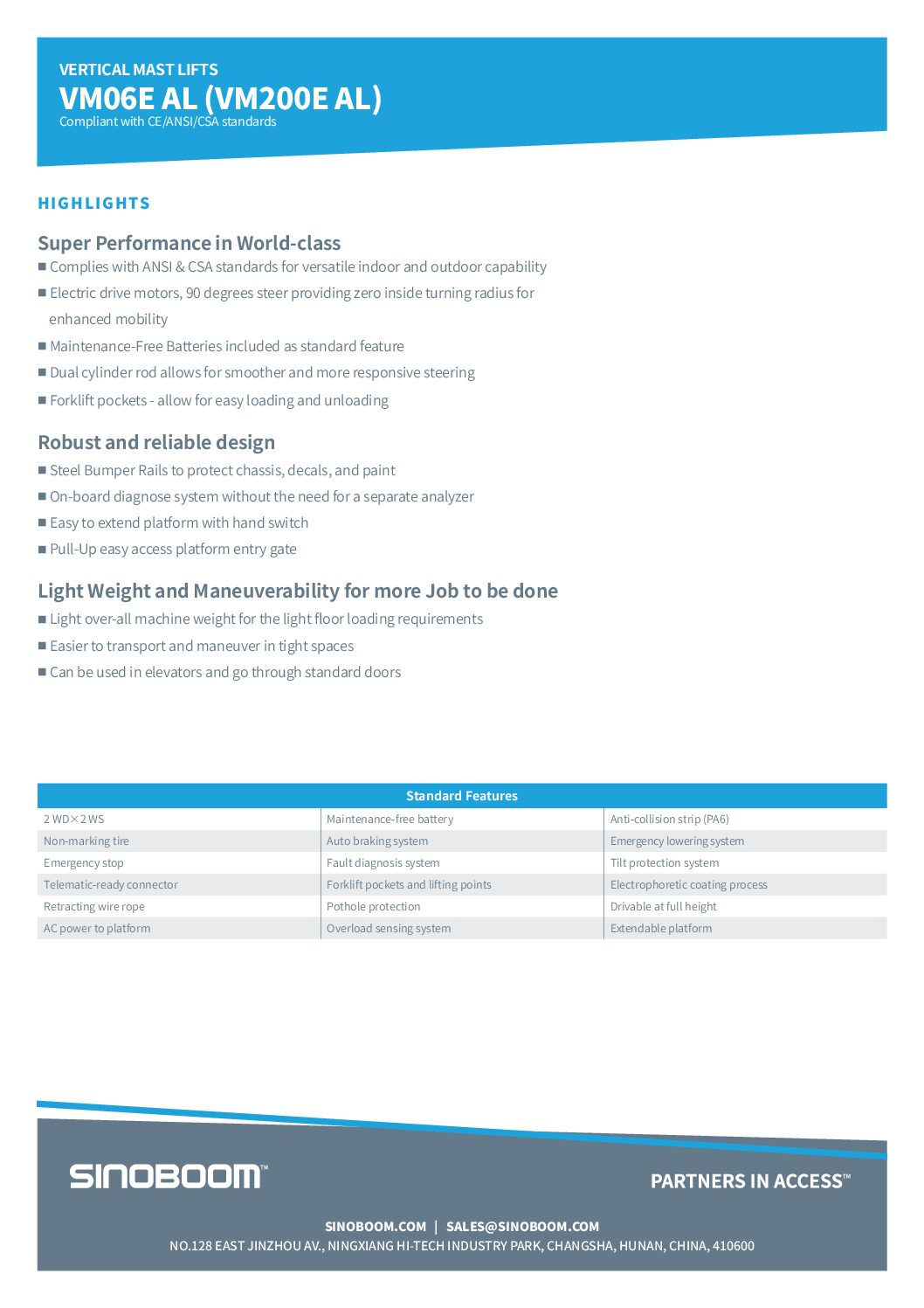

Sinoboom Vertical Mast Lift VM06E AL (VM200E AL)

DIMENSIONS

• Maximum Working Height:

  • Indoor: 8.0 m

  • Outdoor: 6.8 m

• Maximum Platform Height:

  • Indoor: 6.0 m

  • Outdoor: 4.8 m

• Maximum Horizontal Extension: 0.5 m

• Overall Length (Stowed): 1.40 m

• Overall Width (Stowed): 0.78 m

• Overall Height (Stowed): 1.99 m

• Wheelbase: 1.075 m

• Ground Clearance:

  • Pothole Guard Stowed: 0.054 m

  • Pothole Guard Deployed: 0.020 m

• Platform Dimensions (L × W × H):

  • 0.77 × 0.74 × 1.10 m

PERFORMANCE

• Platform Capacity: 160 kg

• Platform Occupancy (Indoor / Outdoor): 1 person

• Travel Speed (Stowed): 0–3.0 km/h

• Travel Speed (Raised): 0–0.8 km/h

• Elevation Time (Unloaded): 21 s

• Descent Time (Unloaded): 30 s

• Gradeability: 25%

• Turning Radius (Inside / Outside):

  • 0 / 1.55 m

• Tilt Rating (Front to Back / Side to Side): 3° / 1.5°

• Tires: Solid, non-marking, 305 × 100 mm

POWER & DRIVE

• Battery: 24 V, 120 Ah (lead-acid, 20-hour rate)

• Power Source: 24 V DC, 2.2 kW

• Drive Configuration: 2WD × 2WS

• Charger Input: 100–240 V AC

• Charger Output: 15 A

• Hydraulic Tank Capacity: 6 L

WEIGHT & COMPLIANCE

• Operating Weight: 1,180 kg

• Standards Compliance: CE / ANSI / CSA
