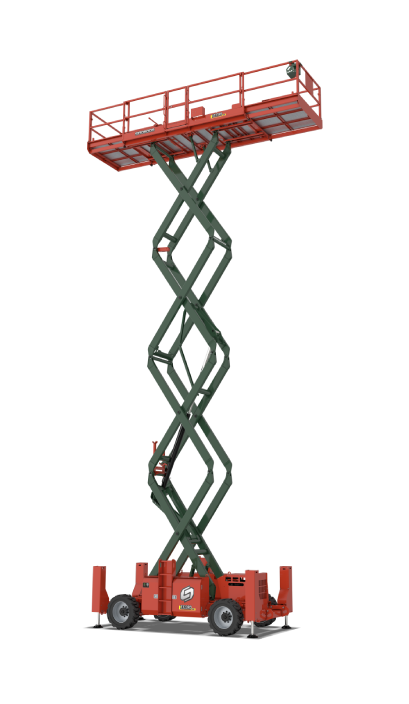

Sinoboom Rough Terrain Scissor Lift 1323RD (4389RD)

DIMENSIONS

• Max. Working Height: 15.1 m

• Max. Platform Height: 13.1 m

• Max. Horizontal Extension:

  • 1.5 m

  • 1.2 m

• Overall Length (Stowed): 4.88 m

• Overall Width (Stowed): 2.31 m

• Overall Height (Stowed, Rail Folded): 2.20 m

• Overall Height (Stowed, Rail Unfolded): 2.96 m

• Wheelbase: 2.85 m

• Ground Clearance: 0.36 m

• Platform Dimensions (L × W × H):

  • Standard Platform: 3.96 × 1.82 × 1.10 m

  • Extended Platform: 4.84 × 1.82 × 1.10 m

PERFORMANCE

• Platform Allowable Occupants:

  • Indoor: 7 persons

  • Outdoor: 7 persons

• Platform Capacity: 680 kg

• Drive Speed (Stowed):

  • 6.1 km/h (Yanmar engine)

  • 5.0 km/h (Kubota engine)

• Drive Speed (Raised): 0 – 1.1 km/h

• Elevation Time (Unloaded): 50 – 60 s

• Descent Time (Unloaded): 34 – 44 s

• Gradeability: 40%

• Turning Radius (Inside / Outside):

  • 2.20 m / 5.30 m

• Tilt Rating:

  • Front to Back: 3°

  • Side to Side (with outriggers, telescoping in/out): 2°

• Maximum Outrigger Leveling:

  • Side to Side: 12°

  • Front to Back: 7°

• Tires: 315 / 55 D20, foam-filled

POWER

• Engine Options:

  • Yanmar 4TNV88C – 35.5 kW (EU Stage V / EPA Tier 4F)

  • Yanmar 4TNV88-ZCDCS12 – 35.3 kW (China T4)

  • Kubota D1105-E4B-EU-X1 – 18.2 kW

  • Kubota V2403-CR-TIE4B-SPB1 – 39.6 kW (EPA Tier 4F)

• Drive Mode: 4WD × 2WS

• Fuel Tank Capacity (Diesel): 110 L

• Hydraulic System Capacity: 107 L

GENERAL

• Machine Weight:

  • 7,380 kg

  • 7,170 kg

• Standards Compliance: CE / ANSI / CSA / AS / EAC
