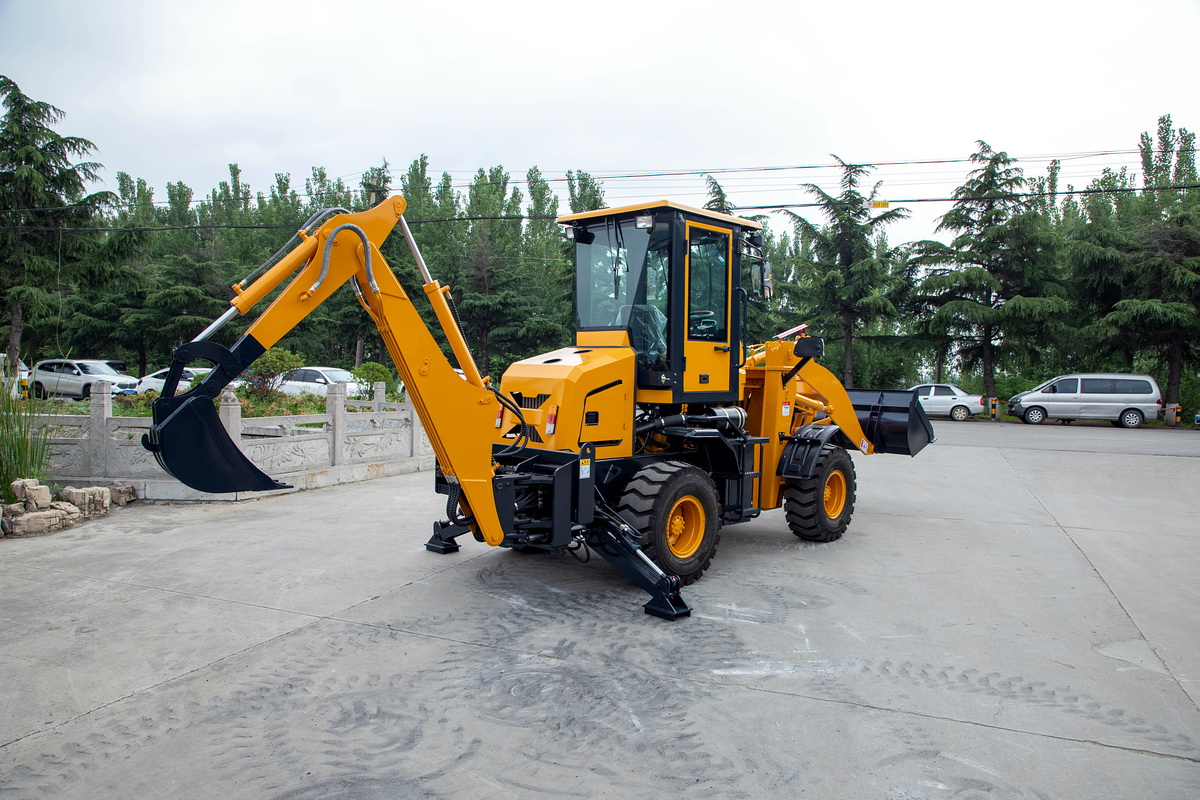

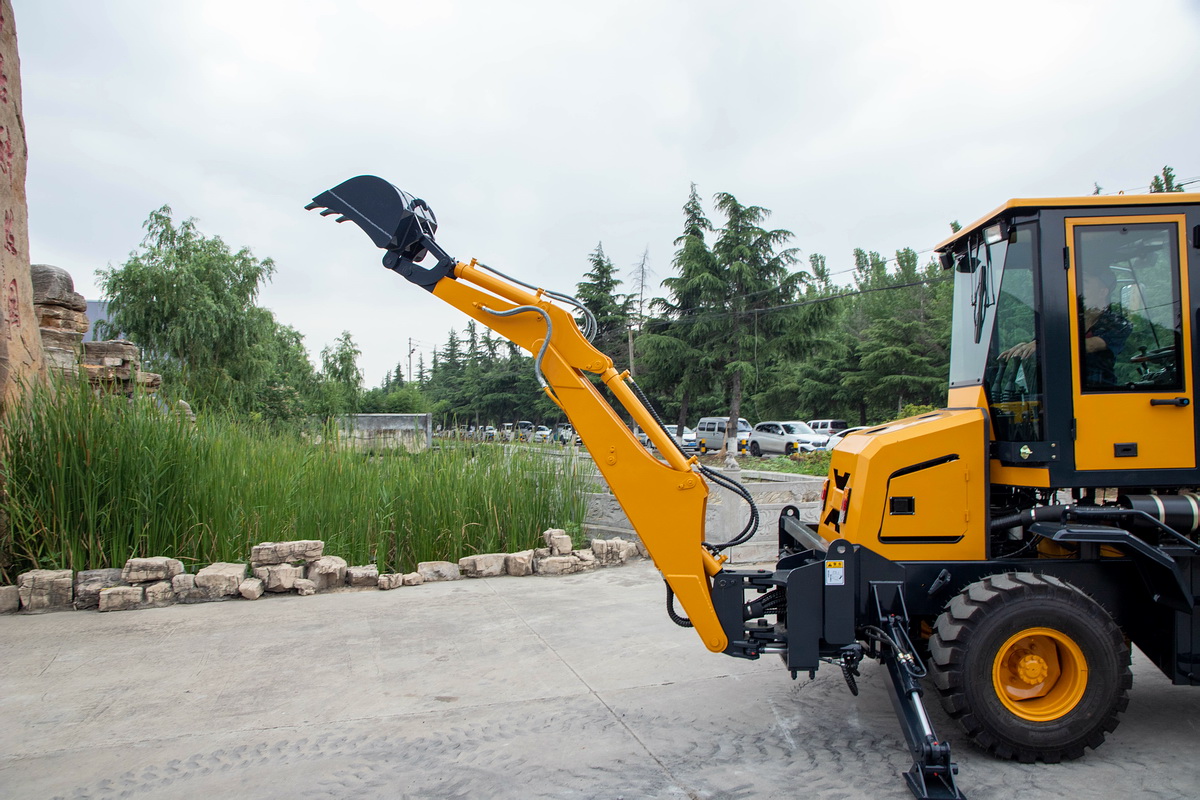

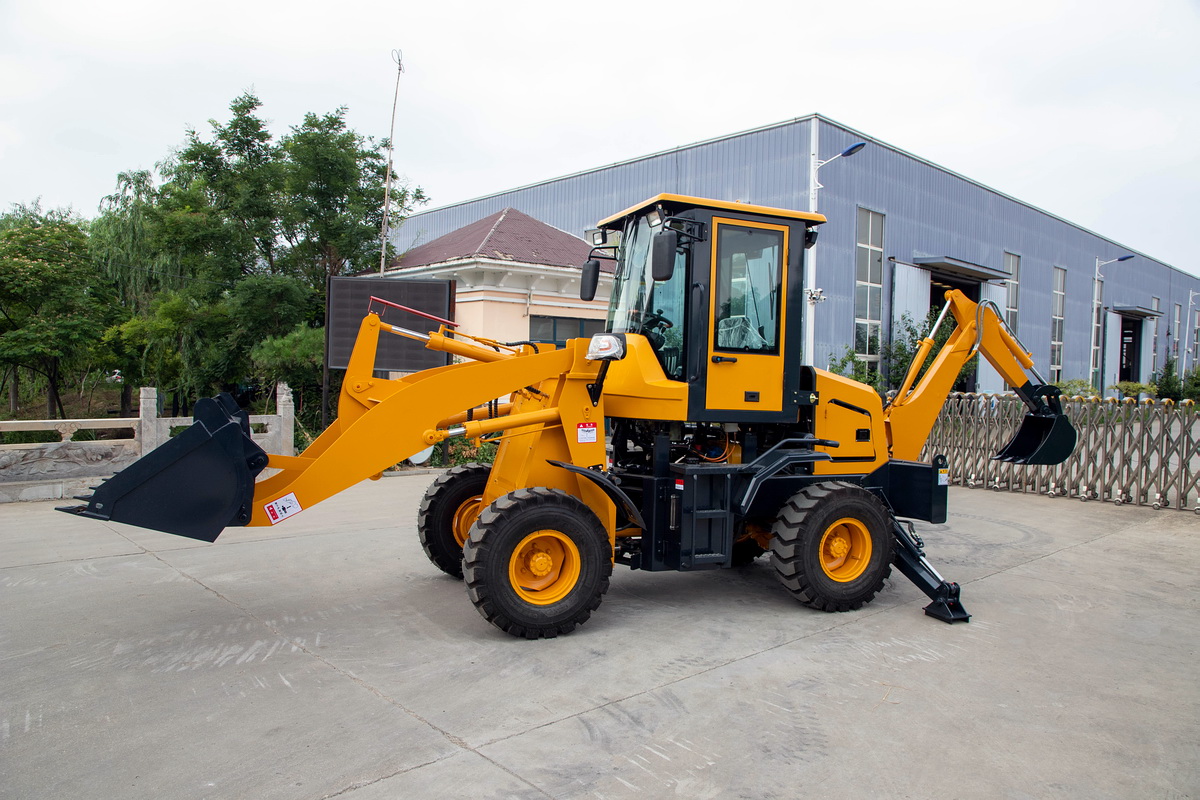

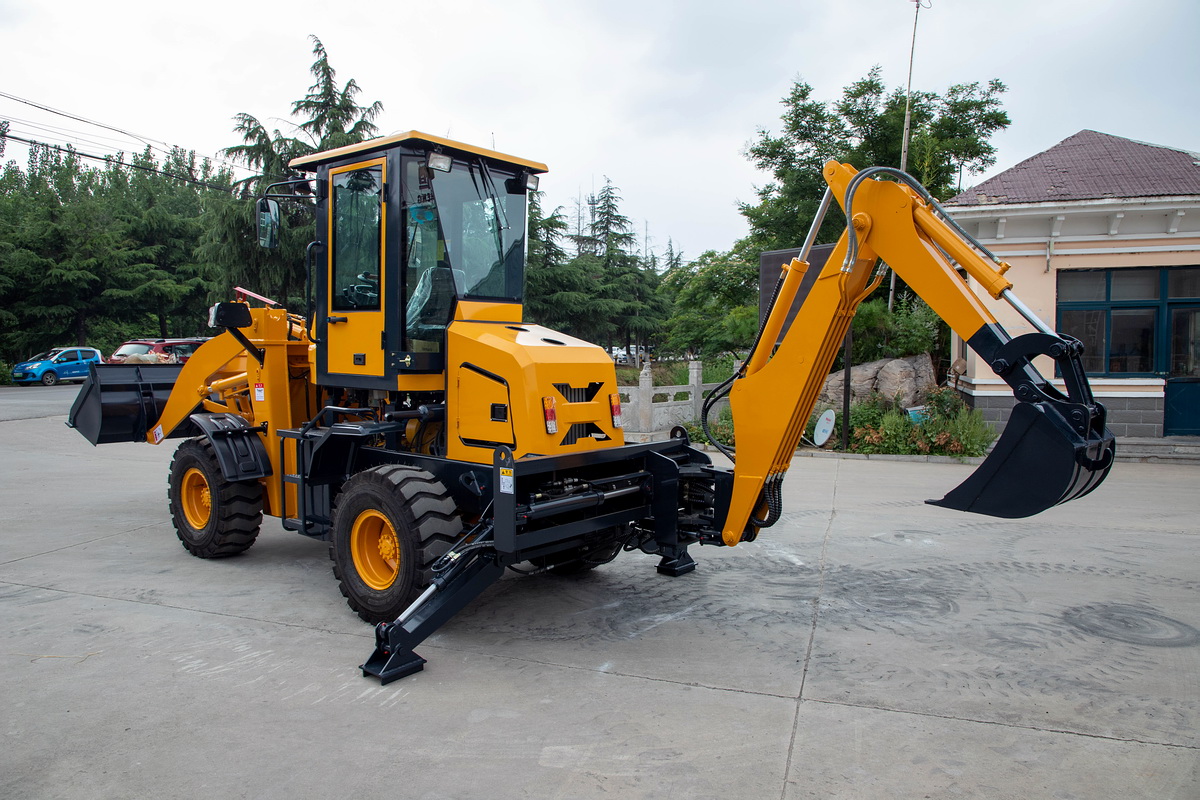

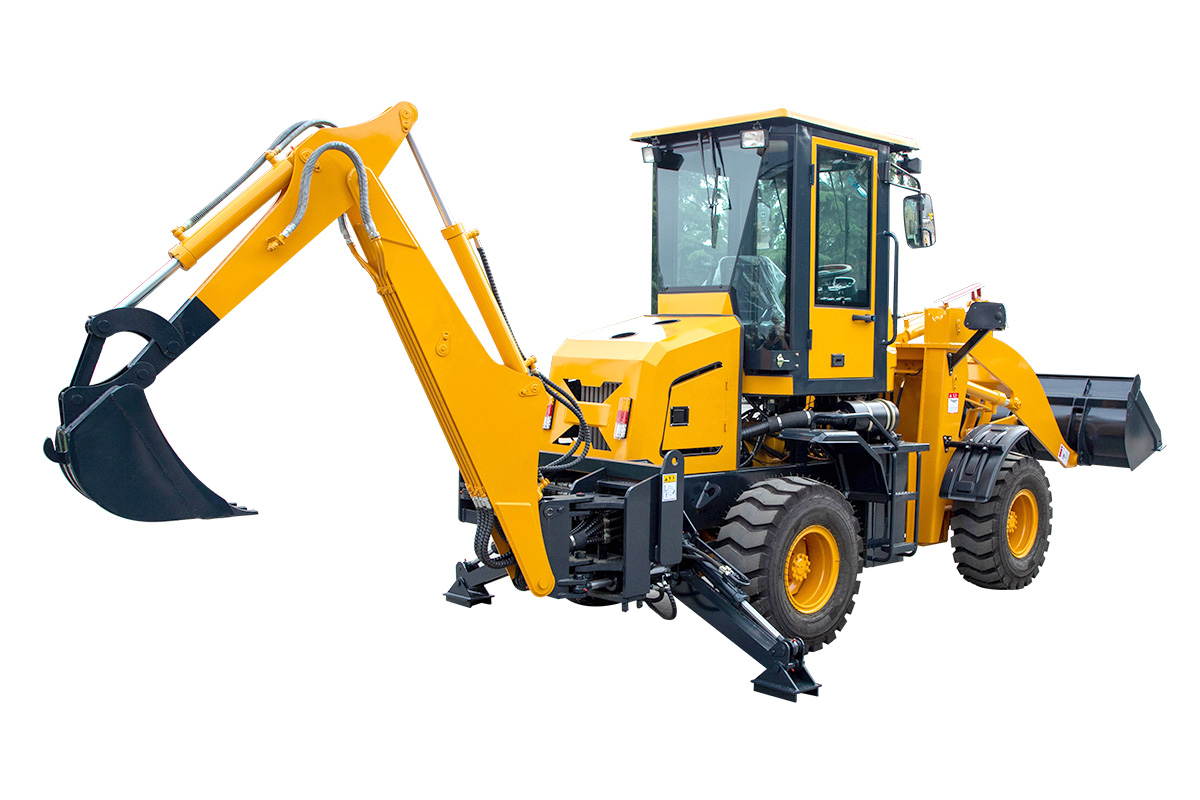

Backhoe Loader GMH-10-20

Excavator Loader Overview

The excavator loader, also known as the “busy at both ends” machine, combines both digging and loading functions in a compact and efficient design. With a wheeled chassis, it allows for flexible mobility across job sites and even on public roads. This multifunctional equipment performs simultaneous operations, significantly improving productivity and reducing labor and cost expenses.

Applicable Working Conditions

With a variety of attachments, the excavator loader can handle multiple tasks such as digging, loading, trenching, breaking, leveling, and pipe laying. It is widely used in agricultural irrigation, water conservancy, municipal sanitation, construction, highway maintenance, and telecommunication projects, offering a reliable solution for comprehensive engineering work.

Main Specifications

Model	GMH-10-20
Dimensions (mm)	5500×1750×2650
Wheelbase (mm)	2070
Track Width (mm)	1475
Minimum Ground Clearance (mm)	250
System Pressure (MPa)	16
Total Weight (Kg)	3400
Maximum Speed (Km/h)	25
Maximum Climbing Ability (°)	25
Minimum Turning Radius (mm)	8500
Maximum Digging Depth (mm)	2000
Digging Unloading Height (mm)	1800
Maximum Digging Radius (mm)	2700
Bucket Width (mm)	400
Bucket Capacity (m³)	0.1
Maximum Digging Force (KN)	25
Excavator Rotation Angle (°)	180
Maximum Unloading Height (mm)	2800
Loader Bucket Capacity (m³)	0.5
Engine Model	Yunnei YN48GBZ
Engine Type	Turbocharged Four-Stroke
Rated Power (KW)	37
Rated Speed (r/min)	2400
Transmission	Fixed-Axle Power Shift
Gear Positions	2 Forward, 2 Reverse
Torque Converter	ZL29A
Drive Type	Four-Wheel Drive
Transmission Type	Hydraulic Transmission
Fuel Tank (L)	80
Hydraulic Oil Tank (L)	30
Braking Distance (mm)	830
