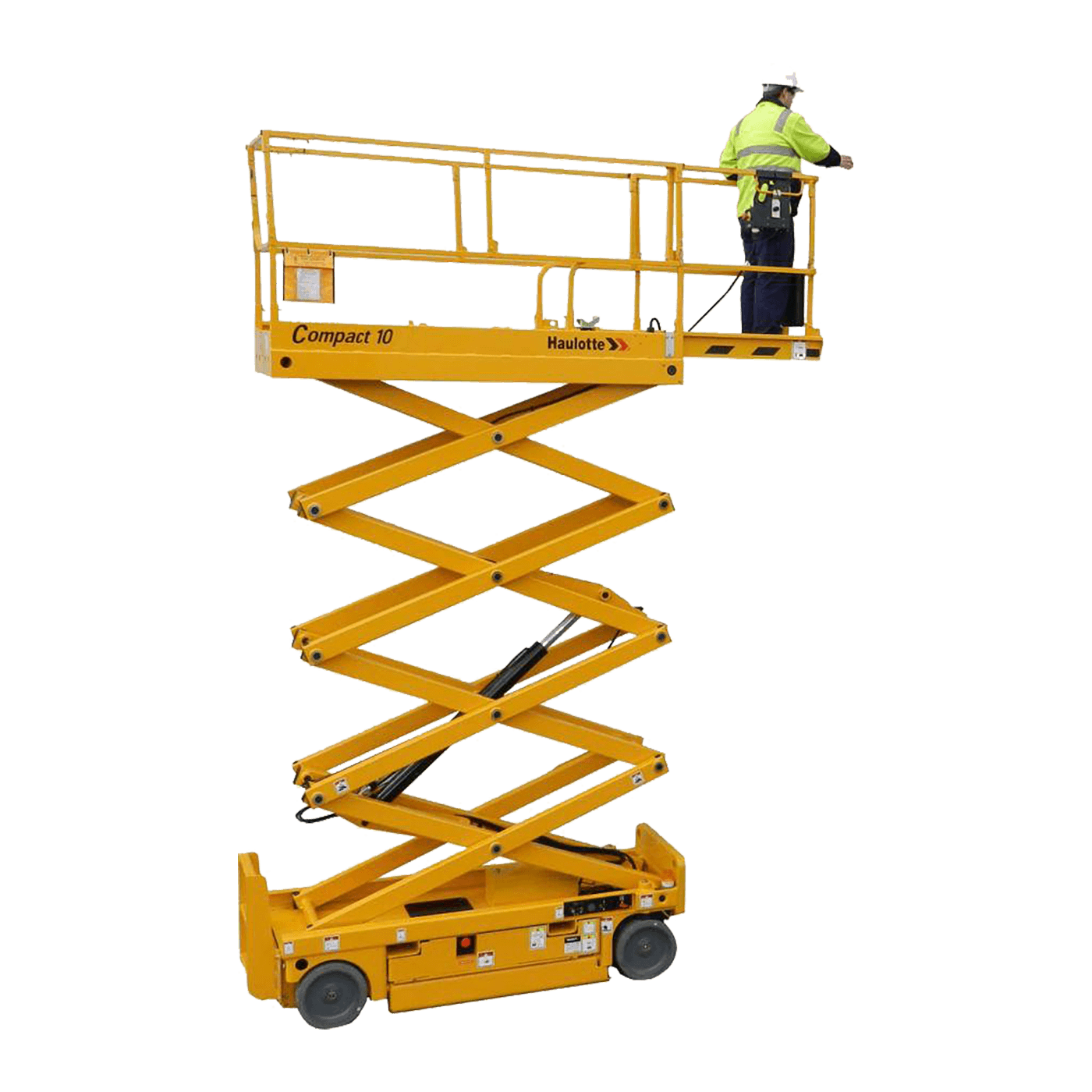

Haulotte Electric Scissor lift Compact 10

Haulotte Electric Scissor lift Compact 10

Lift capacity : 450 kg
Working height : 10 m
Facebook
Twitter
LinkedIn

Product Parameter

The COMPACT 10 scissor lift delivers exceptional strength and adapts perfectly to the constraints of demanding worksites. Every subassembly—from the chassis to the platform and scissor arms—has been carefully optimized to ensure durability, reliability, and efficiency.

Designed to guarantee high productivity and maximum uptime, the COMPACT 10 is ideal for intensive daily use in construction, maintenance, and industrial applications. The model with a 1.2 m wide platform provides a larger working area, offering operators greater comfort and efficiency when handling multiple tools or materials at height.

Working height 10 m
Platform height 8 m
Max. drive working height 8 m
Lift capacity – inside 450 kg (3 pers.)
Lift capacity – outside 450 kg (1 pers.)
Lift capacity on the extension 120 kg
A Platform length 2.4 m
B Platform length – extended 3.32 m
Length – extension 0.92 m
C Platform width – outside 1.17 m
D Height – stowed 2.35 m
Height – guardrails lowered 1.65 m
E Overall width 1.20 m
F Length 2.5 m
G Wheelbase 1.86 m
H Ground clearance – center 12.5 cm
Ground clearance – deployed potholes 2 cm
Drive speed 0.7 / 1.5 / 4.2 km/h
Gradeability 25 %
Tilt (longitudinal / lateral) 3.5° / 1.5°
Turning radius – outside 1.83 m
Non-marking tyres 15 × 5
Batteries 24 V – 225 Ah (C20)
Hydraulic system capacity 10 l
Weight 2,490 kg
