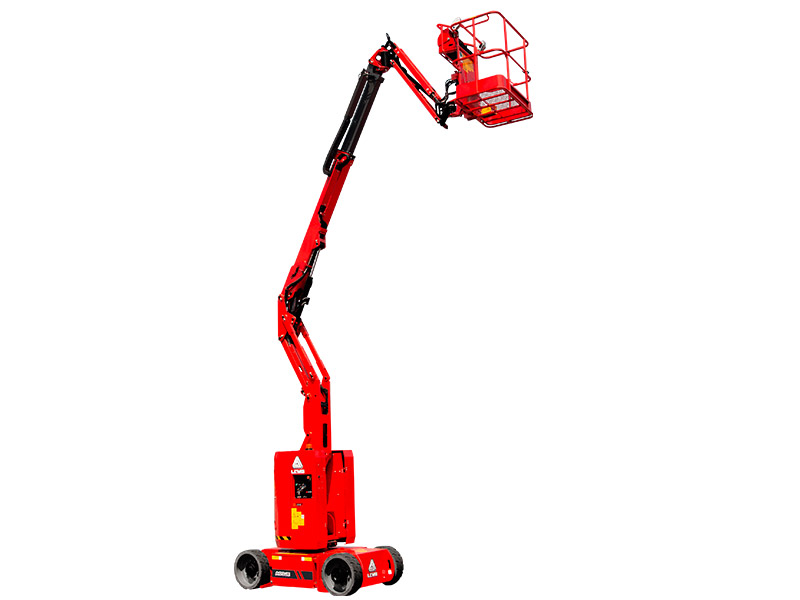

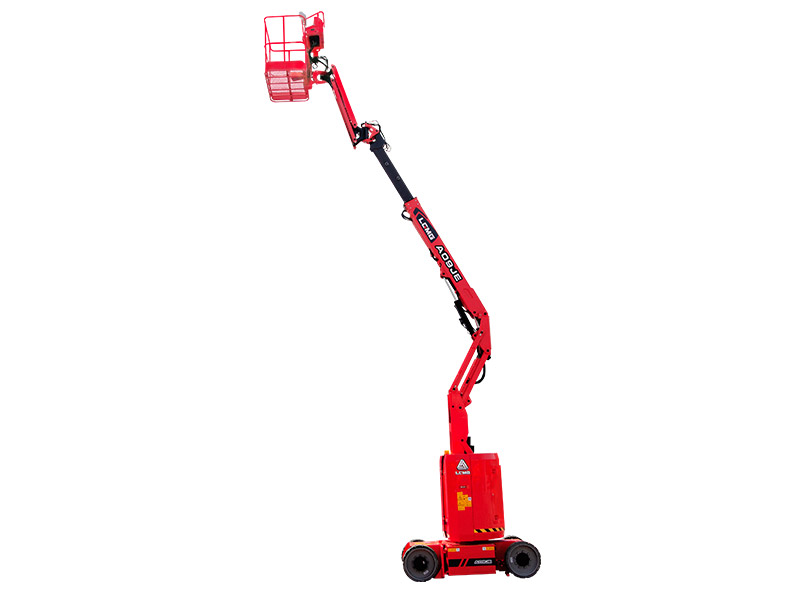

Why Should I Rent a Boom Lift?
Boom lifts are powerful tools equipped with a stable, articulating platform that allows workers to navigate both wide and narrow vertical spaces. This makes them ideal for tasks requiring precision,
Max. Platform Height
Rated Load
Overall Width
1.19 m ultra-compact body, easy to access narrow doorways and aisles, flexible operation.
Small jib can achieve horizontal +90° swing, providing a wider working range.
Lifting and driving fully powered by AC electric motors, maintenance-free and safer.
All functions adopt proportional control, ensuring optimal compound actions.
Joystick control with precise operation, smooth and responsive handling.
| Dimensions | |
|---|---|
| Max. Working Height / m | 11 |
| Max. Platform Height / m | 9 |
| Max. Horizontal Outreach / m | 6.25 |
| Max. Up and Over Clearance / m | 6.85 |
| Max. Crossing Height / m | 4.12 |
| Overall Length / m | 5.46 |
| Overall Width / m | 1.19 |
| Overall Height / m | 2 |
| Platform Size (L × W) / m | 1.17 × 0.76 |
| Wheelbase / m | 1.58 |
| Wheel Tread / m | 1.01 |
| Min. Ground Clearance / m | 0.09 |
| Performance | |
| Rated Load / kg | 230 |
| Turntable Rotation Angle | 355° |
| Tailswing / m | 0 |
| Platform Rotation Angle | 180° |
| Jib Luffing Range (Left/Right) | 180° |
| Jib Luffing Range (Up/Down) | 140° |
| Max. Allowable Chassis Inclination | 2.5° / 4.5° |
| Max. Travel Speed (Stowed) / km·h | 5 ± 0.25 |
| Max. Travel Speed (Deployed) / km·h | 0.65 ± 0.05 |
| Min. Turning Radius (Inside) / m | 1.65 |
| Min. Turning Radius (Outside) / m | 3.15 |
| Theoretical Gradeability (Unladen) % | 30 |
| Max. Allowable Wind Speed / m·s | 12.5 |
| Drive Type | Rear-Wheel Drive |
| Steering Type | Front-Wheel Steering |
| Tyres | Non-Marking Tyres |
| Tyre Specification | 22 × 7 × 467 |
| Power | |
| Battery | Lead-Acid Battery |
| Hydraulic Oil Tank / L | 17 |
| Weight | |
| Overall Weight / kg | 6700 |
