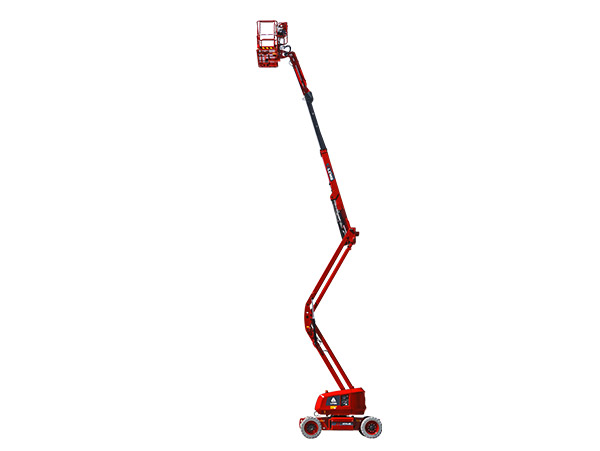

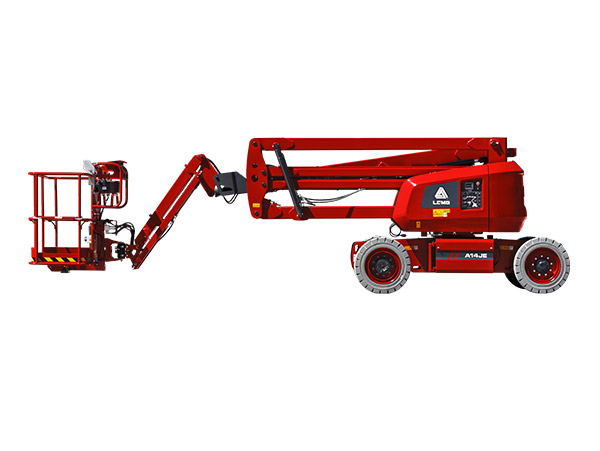

The LGMG A14JE electric articulating boom lift provides an environmentally friendly, zero-emission solution for both indoor and outdoor applications. With a platform height of up to 13.8 m, the A14JE offers excellent up-and-over capability, allowing operators to extend over obstacles in tight working areas.
Battery power ensures quiet operation, zero emissions, and a long duty cycle.
Proportional control delivers smooth driving, precise positioning, and comfortable operation.
Self-leveling platform with hydraulic rotation enhances productivity.
Intelligent self-diagnostic system allows for quick troubleshooting.
Two battery options available: lead-acid or lithium (A14JE-Li).
| Measurements | |
|---|---|
| Work Height Max. | 15.8 m |
| Platform Height | 13.8 m |
| Horizontal Outreach | 7.81 m |
| Up and Over Height | 7.26 m |
| Platform Length | 1.83 m |
| Platform Width | 0.76 m |
| A – Stowed Length | 6.66 m |
| Length – Transport (Jib Tucked) | 5.67 m |
| B – Overall Width | 1.8 m |
| C – Stowed Height | 1.98 m |
| Height – Transport | 2.54 m |
| D – Wheelbase | 2.03 m |
| E – Ground Clearance | 0.24 m |
| Productivity | |
| Max. Platform Occupancy | 2 |
| Platform Capacity | 230 kg |
| Turntable Rotation | 355° |
| Drive Speed – Stowed | 4.8 km/h |
| Drive Speed – Raised | 1 km/h |
| Gradeability | 30% |
| Max. Slope | 3° / 3° |
| Turning Radius – Inside | 1.83 m |
| Turning Radius – Outside | 4.1 m |
| Tire Type | Foam-filled Non-marking |
| Tire Size | 9-14.5 |
| Ground Pressure, Tyres | 820.8 kPa |
| Power | |
| Lead-acid Battery | 48 V 390 Ah, FLA |
| Lithium Battery (A14JE-Li) | 48 V 280 Ah |
| Hydraulic System | |
| Hydraulic Oil Capacity | 30 L |
| Weight | |
| Machine Weight (CE/ANSI) | 7500 kg |
