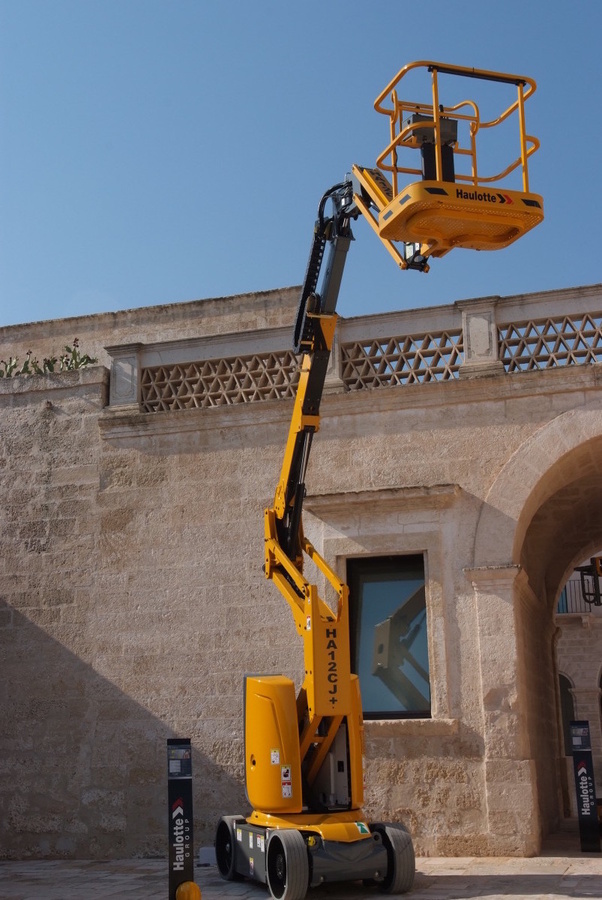

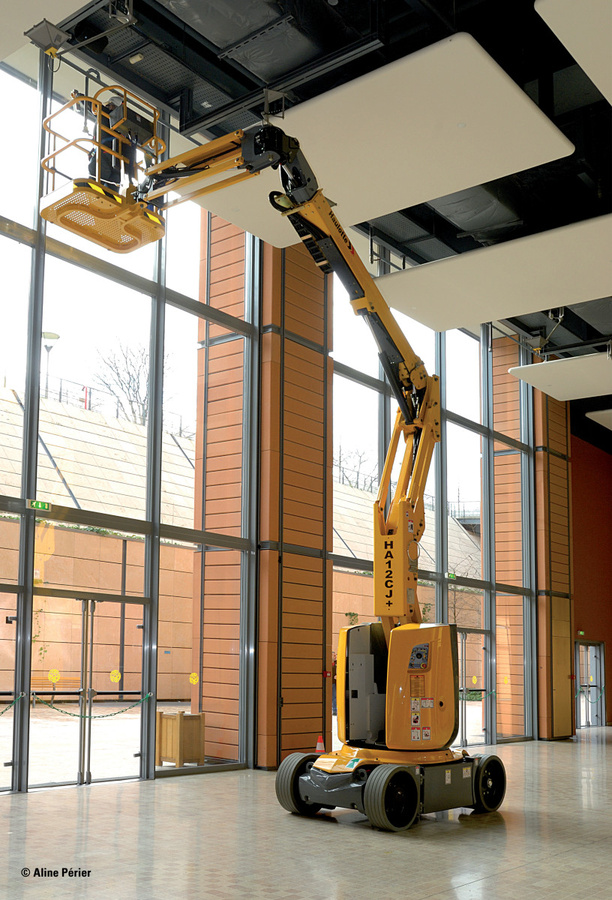

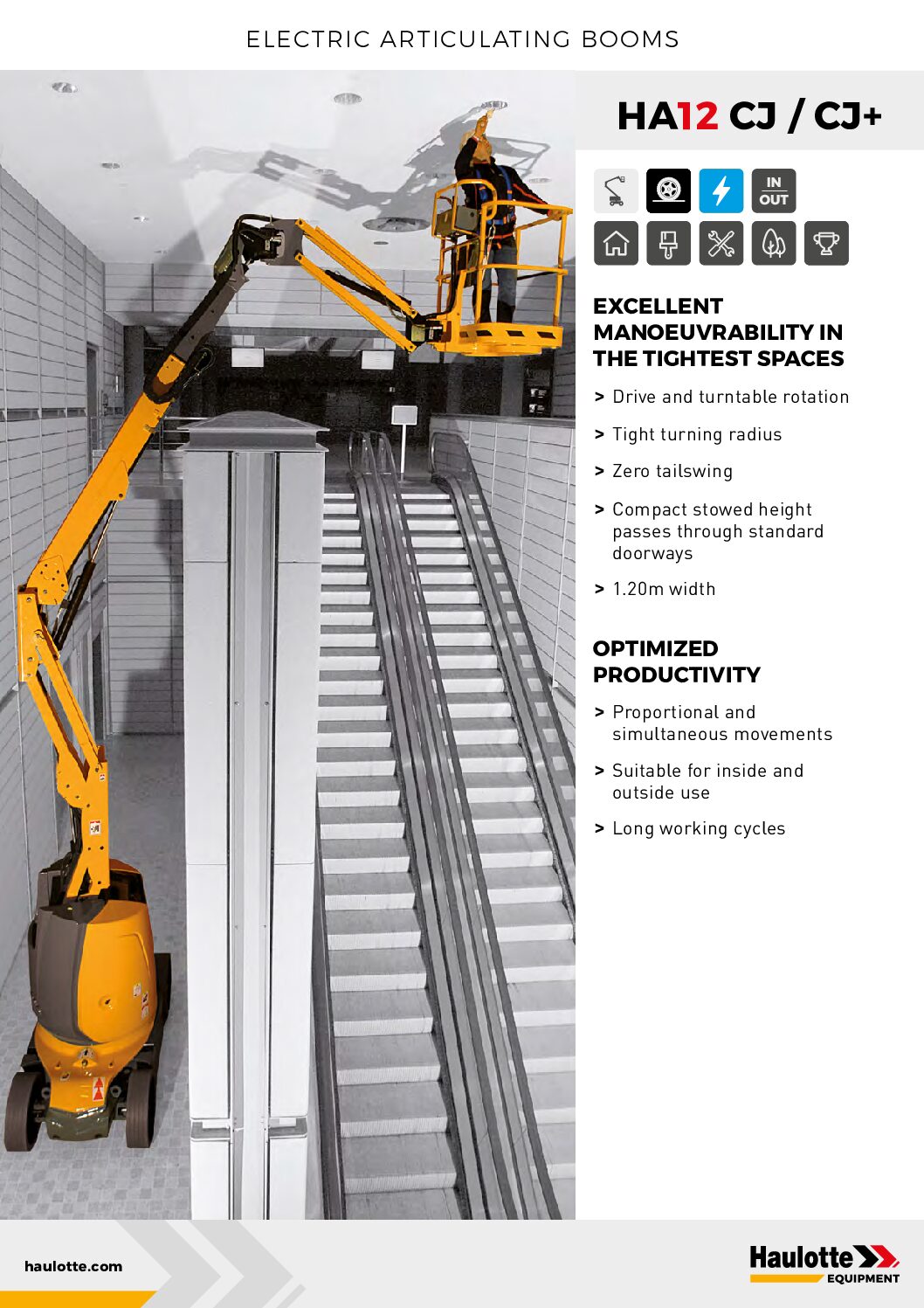

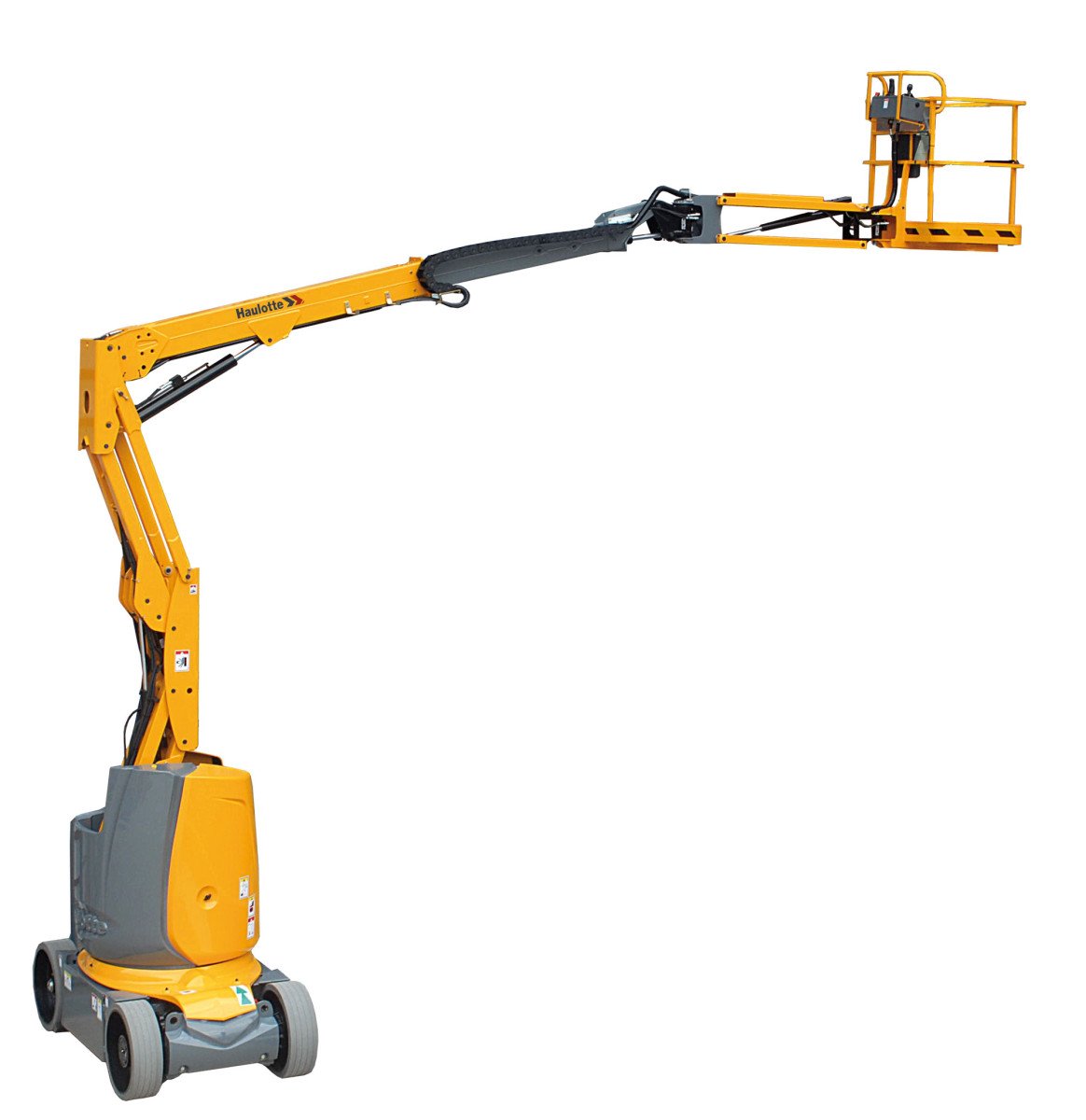

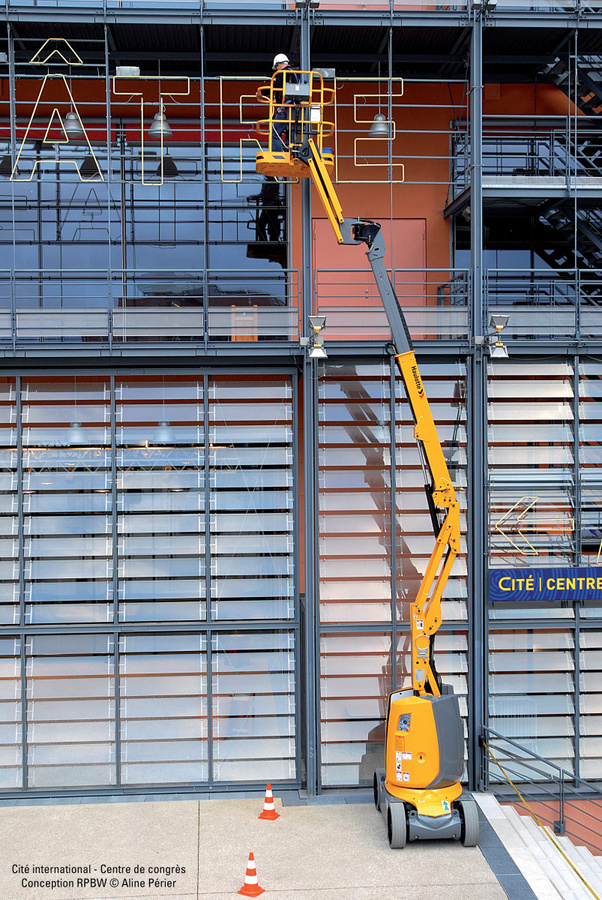

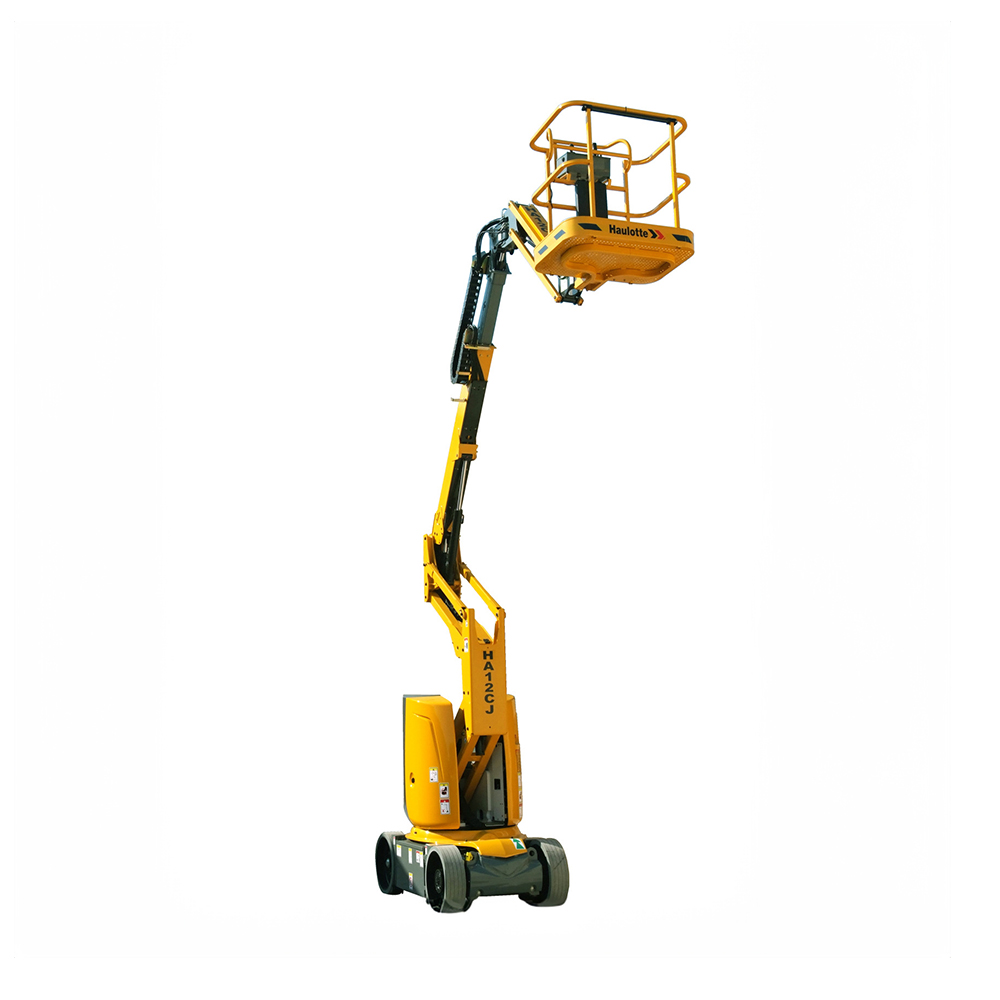

Haulotte Electric Articulated Boom Lift HA12CJ

Haulotte Electric Articulated Boom Lift HA12CJ

Lift capacity : 250 kg
Working height : 12 m
Facebook
Twitter
LinkedIn

Product Parameter

Thanks to its compact design and zero tail swing, the HA12 CJ provides excellent maneuverability in the tightest and most confined spaces. This makes it an ideal solution for indoor projects, urban worksites, and areas with limited access.

The HA12 CJ also delivers one of the best horizontal offsets on the market, allowing operators to easily reach work areas that would otherwise be difficult to access, while ensuring safe and efficient operation.

Working height 11.68 m
Platform height 9.68 m
Horizontal outreach 6.94 m
Up and over clearance 4.74 m
Lift capacity 250 kg (2 pers.)
A Length 5.36 m
B Width 1.2 m
C Height – stowed 1.99 m
D Wheelbase 1.65 m
E Ground clearance 10.7 cm
F × G Platform size 1.14 × 0.8 m
H Length – transport 3.86 m
J Height – transport 2.22 m
Tailswing 0 cm
Horizontal jib rotation N/A
Vertical jib rotation 132.2° (+63.5° / -68.7°)
Platform rotation 180° (+90° / -90°)
Turntable rotation 355°
Tilt
Proportional drive speed 0.68 – 6 km/h
Maximum wind speed rating 45 km/h
Gradeability 25 %
Turning radius – outside 3.65 m
Tyres – non marking 598 × 190

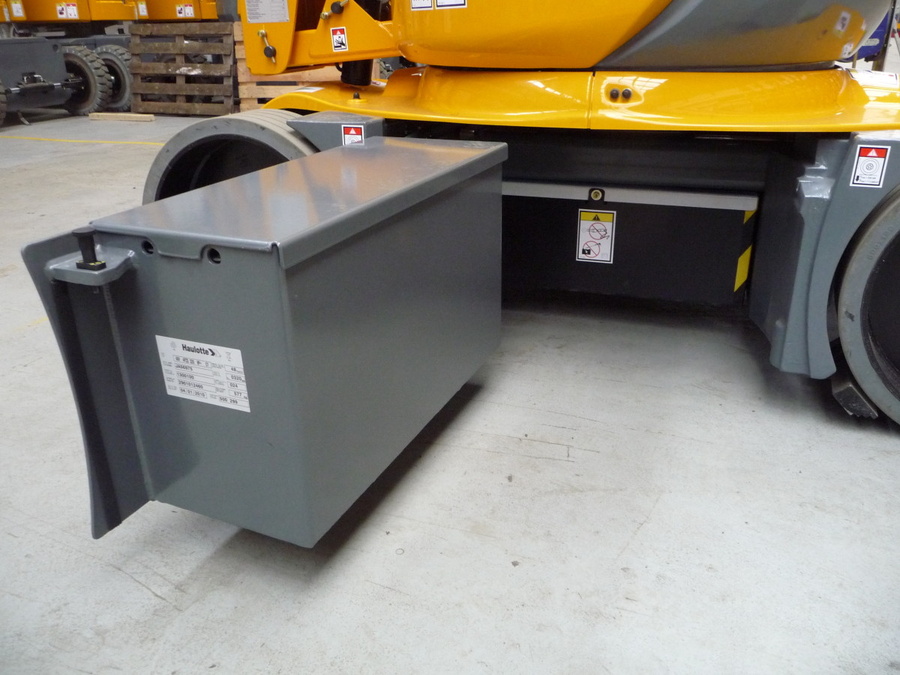

Energy 48 V – 320 Ah (C5)
Weight 7,065 kg
