Why Should I Rent a Boom Lift?
Boom lifts are powerful tools equipped with a stable, articulating platform that allows workers to navigate both wide and narrow vertical spaces. This makes them ideal for tasks requiring precision,

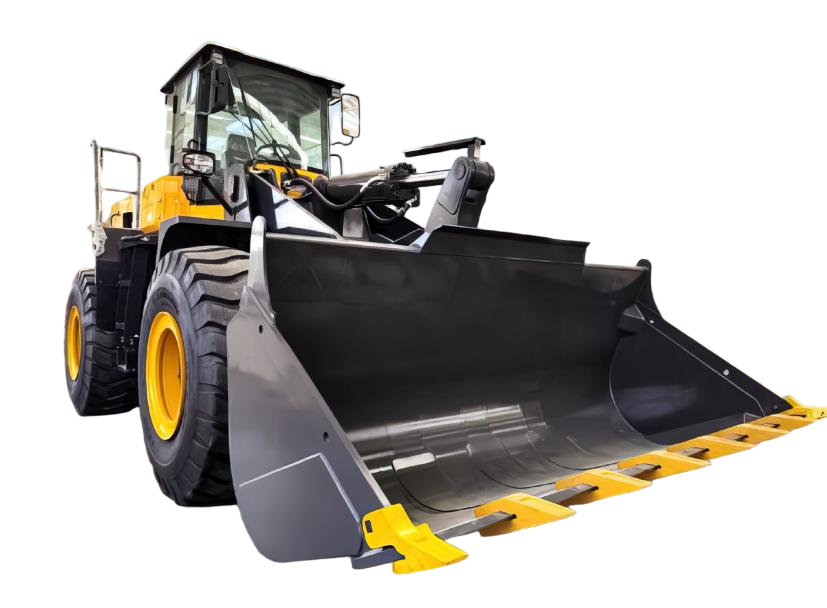

| Engine Model | WD10G220E231 |
| Number of Cylinders – Bore × Stroke | 6 – 126 / 130 mm |
| Total Exhaust Volume | 9.72 L |
| Rated Power / Speed | 162 / 2000 kW/rpm |
| Maximum Torque / Speed | 1100 / (1300–1500) Nm/rpm |
| Torque Converter Type | Single-stage four-element torque converter |
| Gearbox Type | Planet type |
| Machine Length (bucket placed flat on the ground) | 8220 mm |
| Machine Width (outside of tire) | 2835 mm |
| Bucket Width (including bucket teeth) | 3066 mm |
| Machine Height (with cab) | 3450 mm |
| Wheelbase | 3250 mm |
| Tire Spacing | 2238 mm |
| Minimum Ground Clearance | 440 mm |
| Maximum Unloading Height | 3050 mm |
| Maximum Unloading Distance | 1110 mm |
| Operating Weight | 17100 kg |
| Rated Bucket Capacity | 3.0 m³ |
| Rated Load Capacity | 5 T |
| Speed of Each Gear | Level I: 0–13 km/h; Level II: 0–40 km/h; Reverse: 0–15 km/h |
| Maximum Traction | 165±5 kN |
| Bucket Maximum Breakout Force | ≥170 kN |
| Maximum Climbing Ability | 30° |
| Turning Radius (outside bucket) | 7219 mm |
| Maximum Steering Angle | 35° |
| Drive Axle Type | Dry drive axle |
| Service Brake System | Air cap oil four-wheel caliper disc brake system |
| Parking Brake System | Manual inward hoof raising type |
| Working Hydraulic System | Quantitative double pump confluence |
| Steering Hydraulic System | Load sensing coaxial flow amplified steering system |
Boom lifts are powerful tools equipped with a stable, articulating platform that allows workers to navigate both wide and narrow vertical spaces. This makes them ideal for tasks requiring precision,
The electric telescopic boom lift has quickly gained popularity among dealers and end users due to its outstanding features. This article highlights the key aspects that make this equipment a
Let’s be real—10 years ago, if someone told you that electric boom lifts would take over the global rental market, you might’ve raised an eyebrow, or both. But today? Dingli’s
