Name: Non-Rotating Telehandlers ZTH2506
Availability: InStock

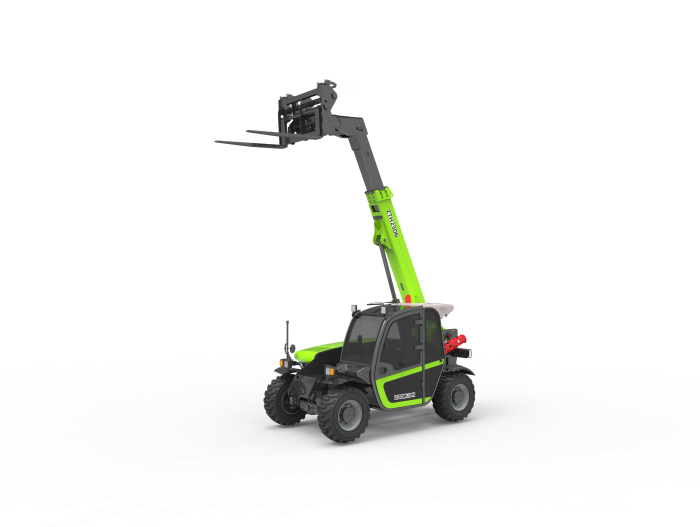

Non-Rotating Telehandlers ZTH2506

$51,600.00

Max. Working Height：6m

Platform Capacity：2500kg

Category Zoomlion Telehandlers Brand: Zoomlion

Product Parameter

Strong power chassis with excellent driving performance and off-road capacity
4×4 drive system, front and rear driving axle with antislip differential gear for great traction force and escape ability
Hydraulic cylinder driven extension system for smooth movement, strong capacity and large work envolope
10.1-inch display screen integrates monitoring, control and entertainment, with a good human-computer interaction experience
Standard floating fork and optional platform, bucket, boom and other attachments meet the diverse needs of customers

Size
A Overall length	3.95m	13ft
B Overall width	1.84m	6ft 0.5in
C Overall height	1.98m	6ft 6in
F Wheelbase	2.35m	7ft 8in
G Min ground clearance	0.33m	1ft 1in
Performance
Max lift height	6m	19ft 10in
Rated capacity	2500kg	5510lb
Lift capacity at max height	2000kg	4410lb
Max forward reach	3.43m	11ft 3in
Lift capacity at max reach	800kg	1760lb
Weight	4970kg	10957lb
Max traction force	35.5kN	7980lbf
Turning radius – outside	3.38m	11ft 1in
Power
Engine	KUBOTA V3307-CR-T-EW08M / KUBOTA V3307-DI-T-MAR1-ET02
Rated power	54.6kw	73.2hp
Max torque	289.3/267Nm	213.9/196.8ft·lb
Cylinder	4
Displacement	3310m³	10.87gal
Transmission	Hydrodynamic
Max drive speed	25km/h	12.2mph
Steering	Front wheels / 4WS / Crab
Tire
Type	12.00-16.5
Hydraulic
Implement pump	Gear pump
Hydraulic flow – pressure	88L/min-270bar	23.3gal/min-270bar
Tank
Hydraulic tank capacity	110L	29gal
Fuel tank capacity	65L	17gal
Fork
Fork size	1220mm × 100mm × 45mm	4ft × 3.9in × 1.77in
Fork rotary	130°
Working speed
Boom up/down	7.5/6.5s
Boom extend/retract	6/5s
Fork lift	4s
Fork retract	3.5s
