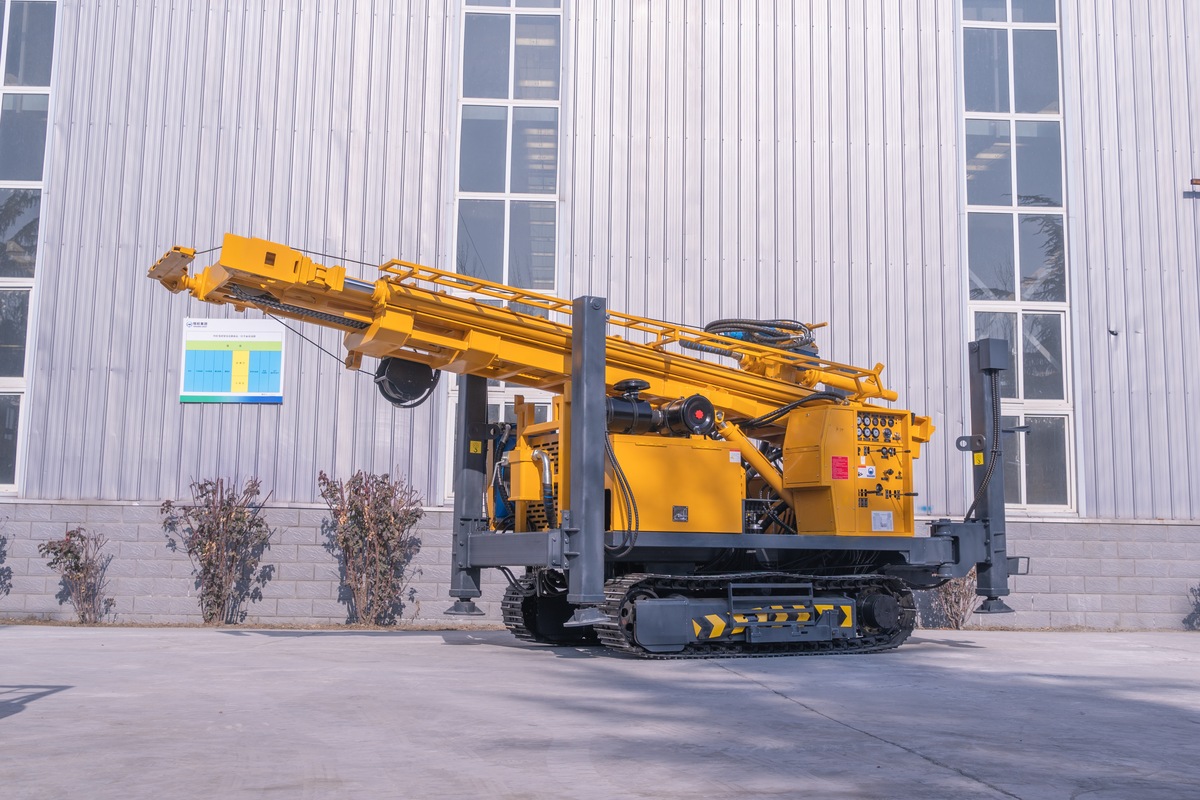

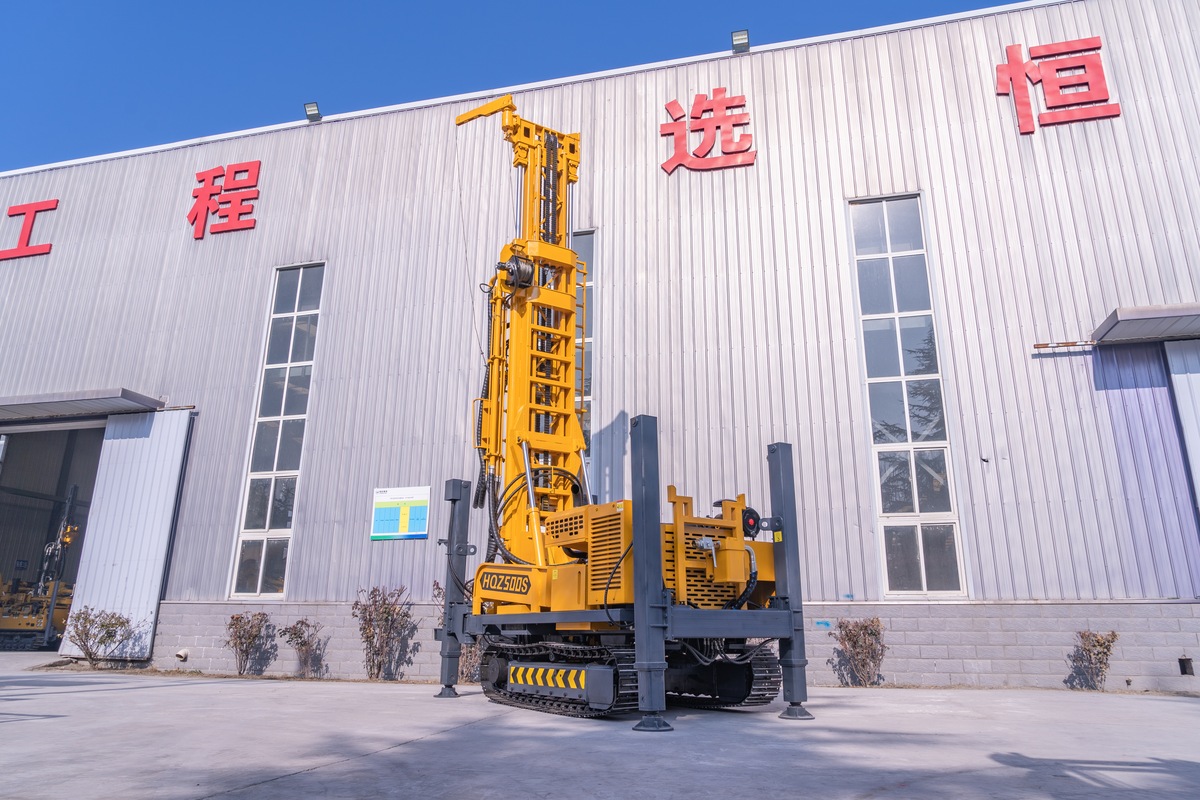

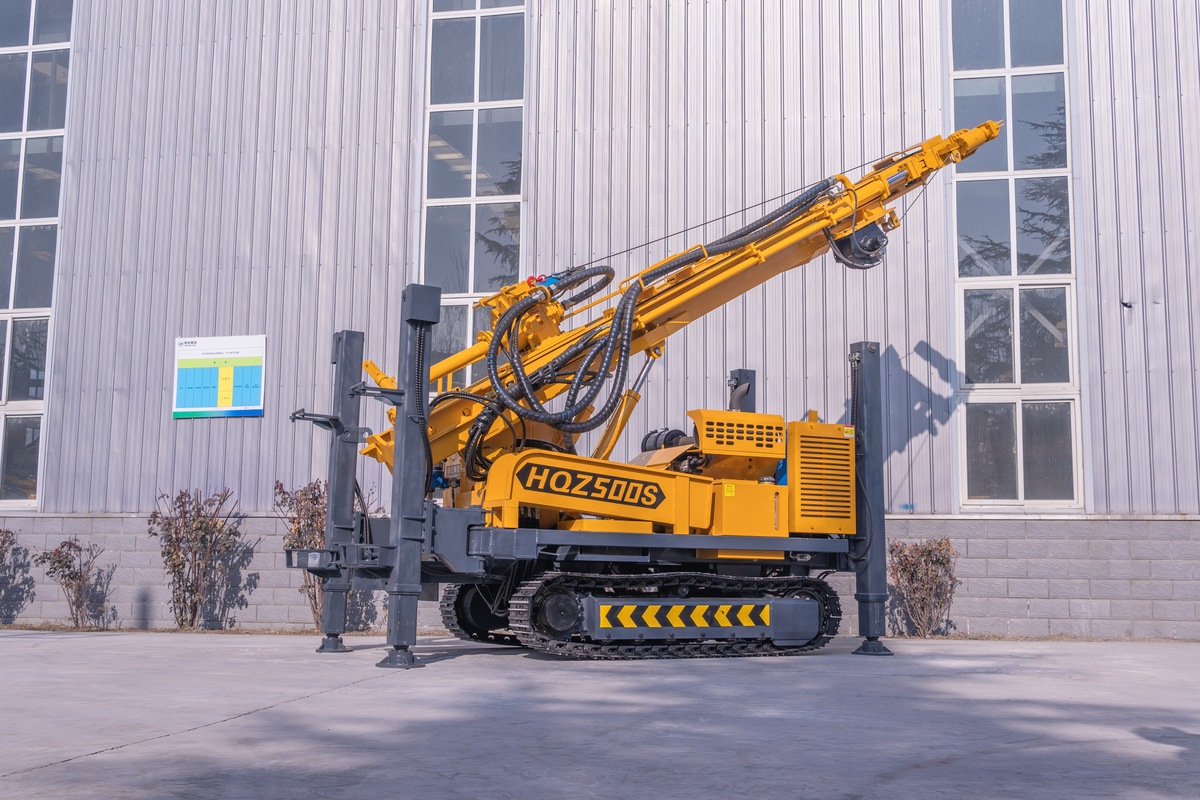

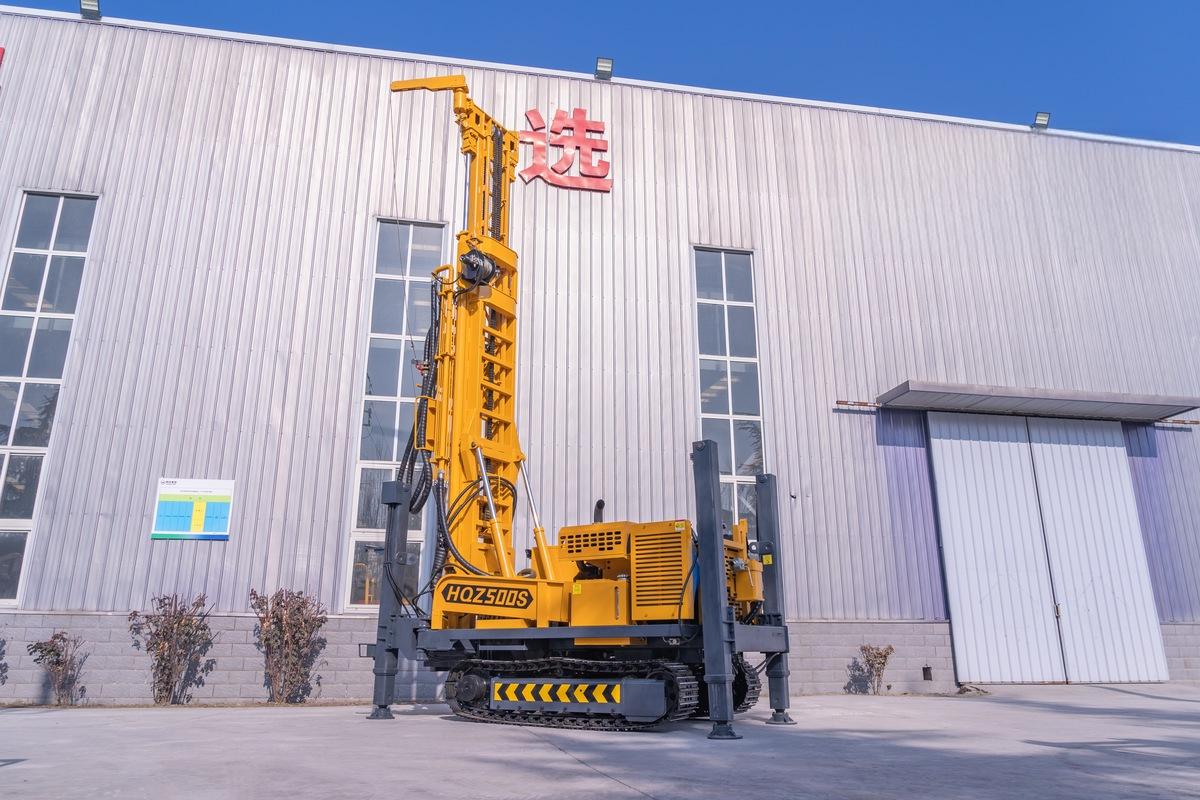

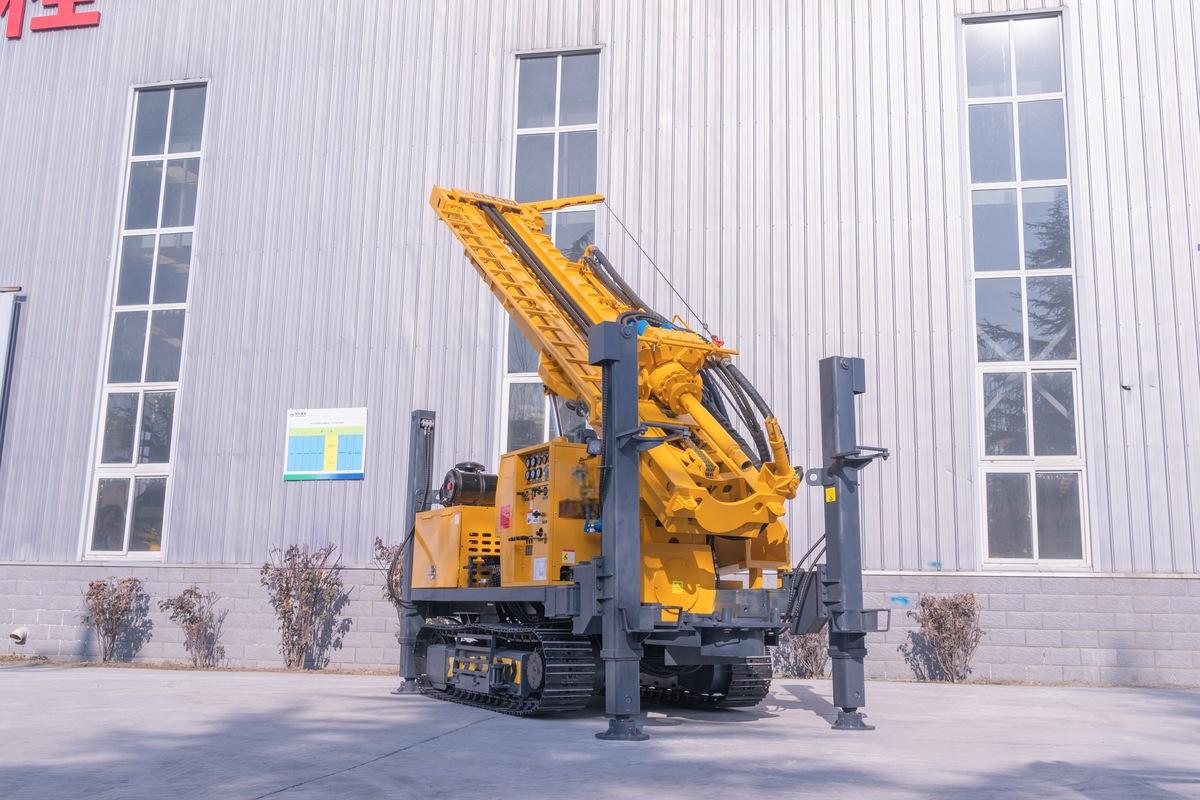

Pneumatic Drill Rig GMH-500S

This series of water well drilling rigs is a lightweight, efficient, and multifunctional drilling equipment mainly used for industrial and civil well drilling, as well as geothermal drilling. It features a compact structure, fast drilling speed, and flexible mobility, making it especially suitable for water extraction in mountainous and rocky terrains. This rig performs reliably under diverse geological conditions by adopting advanced hydraulic technology, a high-torque rotation motor, and a large-diameter hydraulic propulsion cylinder. It uses a multi-cylinder diesel engine equipped with a two-stage air filter and air compressor intake system, extending service life. The unique pump group design simplifies maintenance, reduces downtime, and ensures stable operation. The centrally controlled hydraulic console provides efficient, user-friendly operation. Mounted on an excavator crawler chassis, this model provides strong off-road performance and excellent adaptability. The modular design allows it to be truck-mounted for easy transport. Two-speed rotation and propulsion systems meet drilling needs in both soil and rock formations. The adjustable positioning system ensures precision, while the integrated winch system improves lifting and impactor handling efficiency, significantly reducing labor intensity and improving productivity.

Main Parameters:

Model	GMH-500S
Tower	/
Chassis	Crawler Type
Hole Diameter (mm)	105–400
Drilling Depth (m)	500
Travel Speed (Km/h)	3
Maximum Climbing Capability (°)	21
Engine Brand	Yuchai
Main Engine Power (KW)	110
Operating Pressure (MPa)	1.2–3.5
Air Consumption (m³/min)	16–55
Drill Rod Diameter (mm)	89/102
Drill Rod Length (m)	3.0/6.0
Lifting Force (T)	6T Lifting Force / 30T Winch
Rotation Speed (rpm)	0–75 / 0–150
Rotation Torque (N·m)	10000 / 5000
Dimensions (mm)	6200×1850×2550
Machine Weight (T)	10.5
Remarks	Crawler-mounted pneumatic drill comes standard with a high-leg winch, interchangeable with a low-leg option; excluding winch; casing extractor; welding machine; foam pump; high-low-speed valve; BW160/BW200/BW250 mud pump included with electric start.
