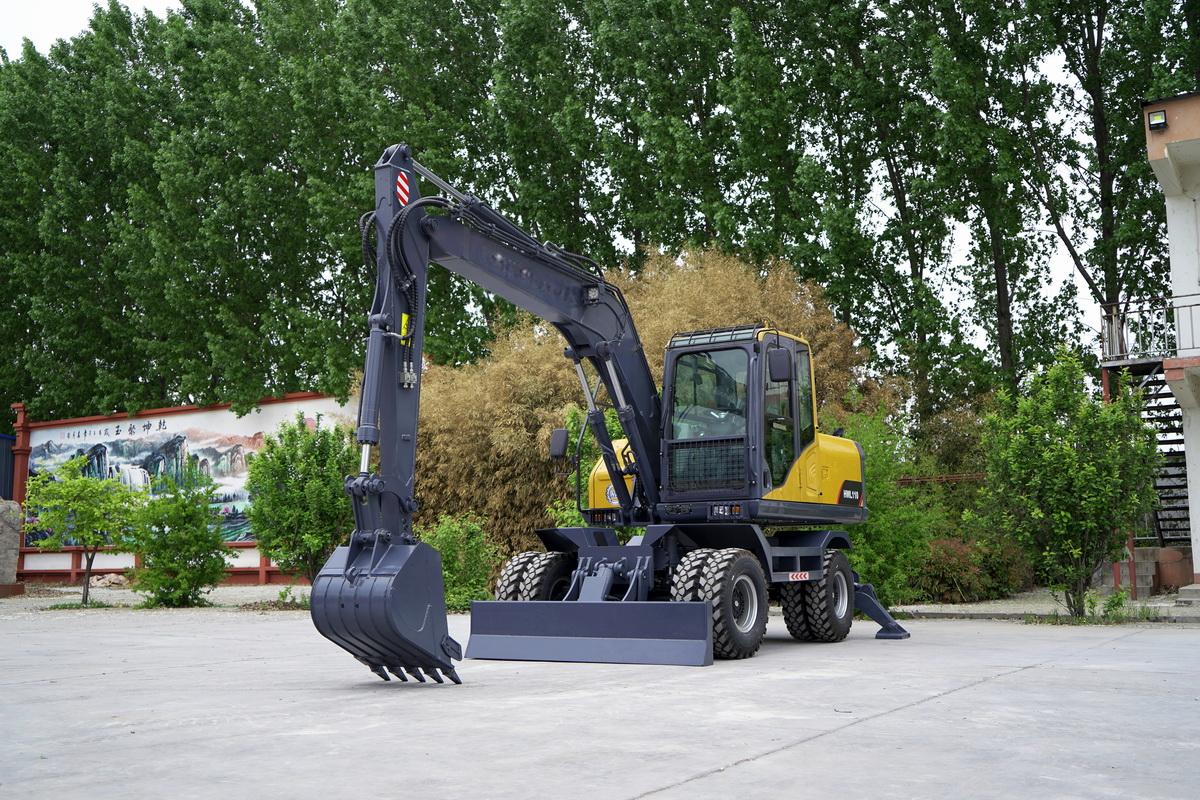

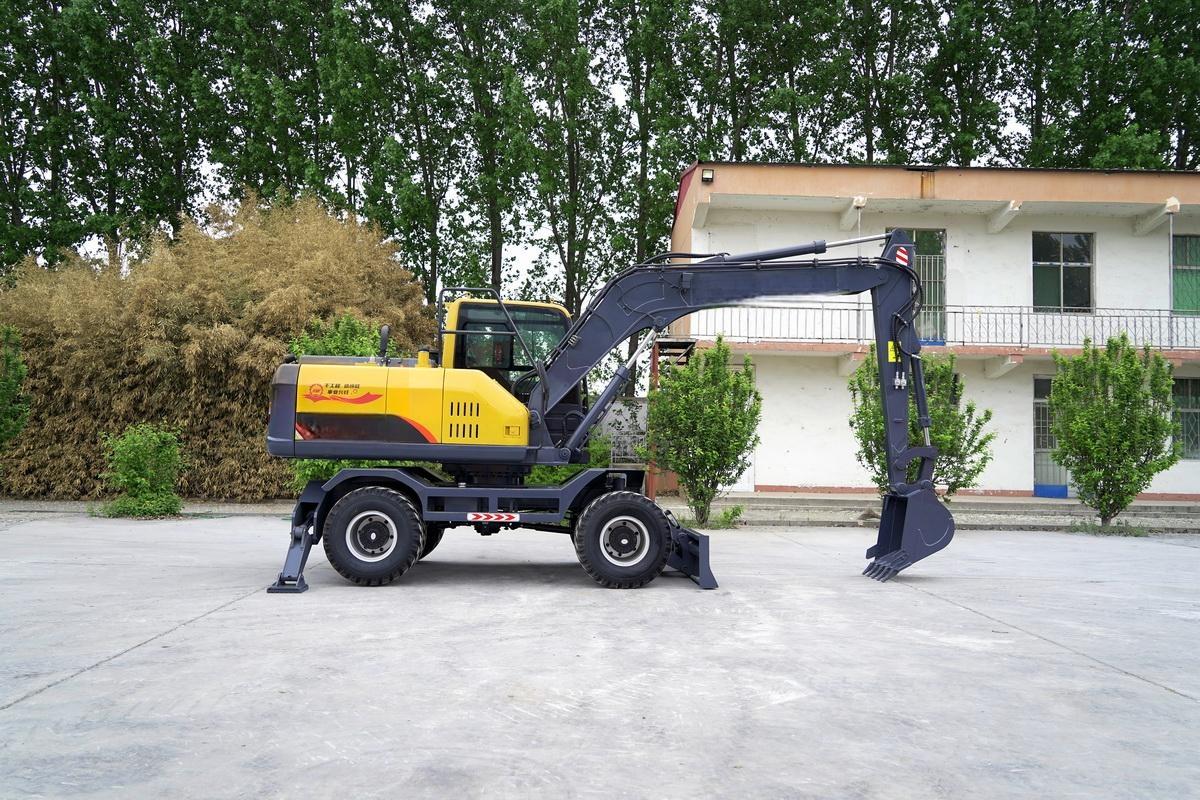

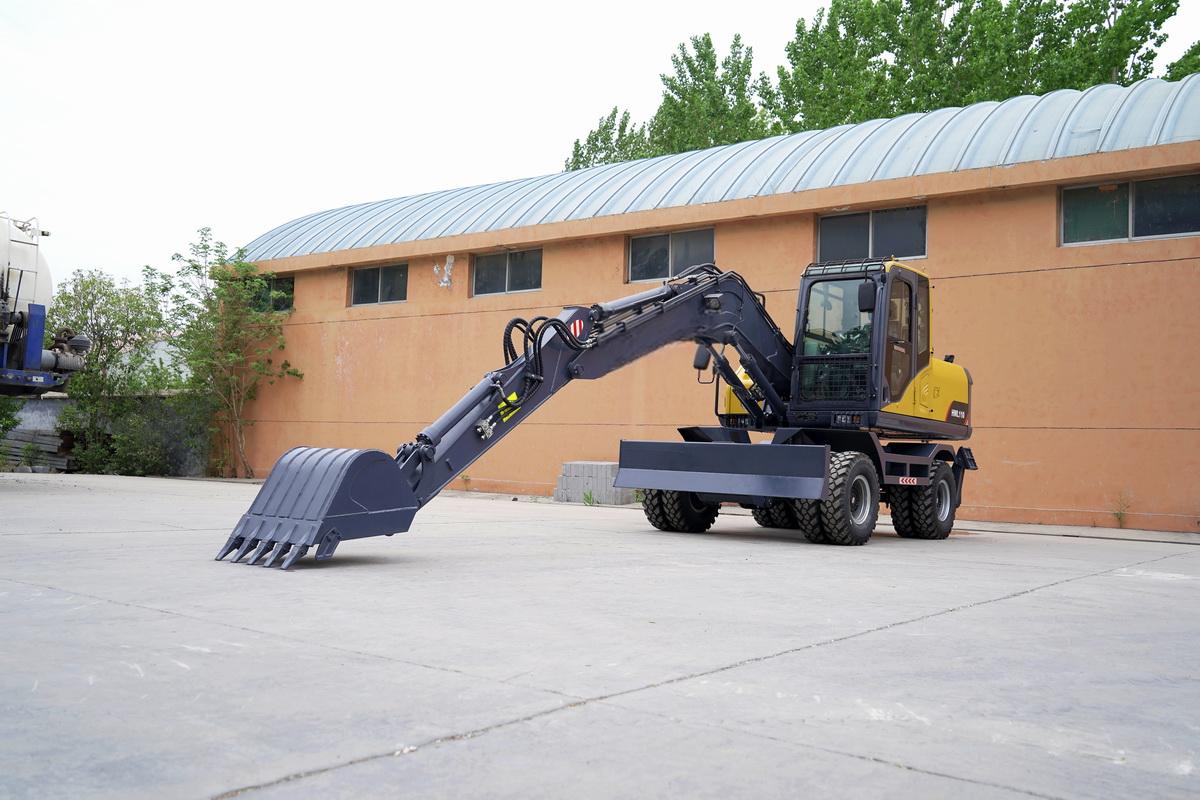

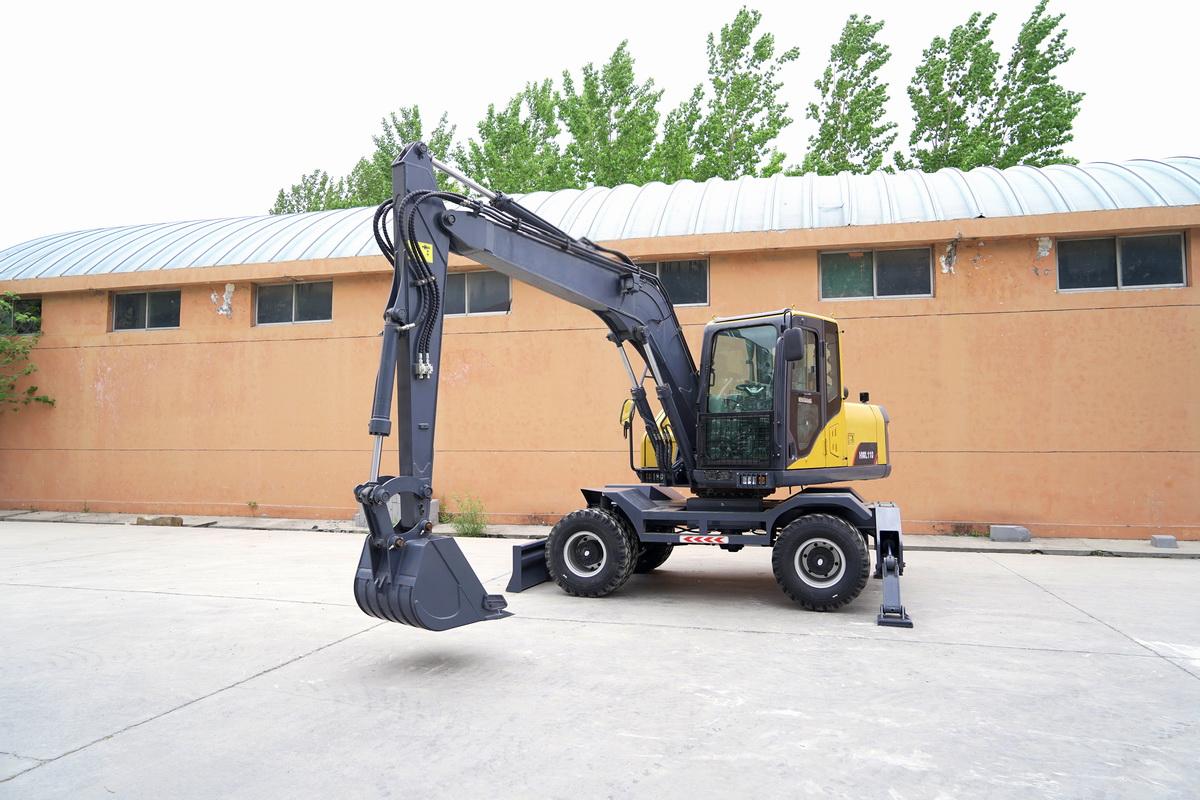

Wheeled Excavator GMHL-120

Wheel excavators, known for their flexibility and adaptability, are increasingly favored for construction, roadwork, municipal engineering, and agricultural projects. The GMHL-120 combines mobility, power, and precision, offering strong performance in both urban and off-road environments.

Main Advantages:

• High flexibility and broad adaptability.
• Can be modified to meet the needs of different types of work.
• Agile rotation, precise and focused performance.
• High return on investment.

Product Features:

1. Electrical System: Equipped with a color LCD display featuring self-check, monitoring, and emergency fault alarm. Offers good human–machine interaction, advanced control software, and higher reliability.
2. Power System: Advanced turbocharged exhaust engine with strong power reserve, capable of maximizing power output, achieving fuel efficiency, and reducing energy loss.
3. Hydraulic System: Uses imported hydraulic components ensuring low power loss, fast response, high efficiency, energy savings, and long service life.
4. Traveling System: Reinforced front and rear drive axles with heavy-duty gearboxes provide higher load capacity and stability.
5. Cabin: Ergonomic cabin with wide view, bright and spacious design, adjustable suspension seat, and silicone-oil shock absorption ensures superior comfort and control.
6. Cooling System: Parallel cooling installation design for efficient heat dissipation, easy maintenance, and long-term reliability.

Main Parameters:

GMHL-120 Wheel Excavator
Dimensions (L×W×H)	6890×2320×2880mm	Cabin Height	2880mm
Track Width	1735mm	Wheelbase	2355mm
Boom Length	3900mm	Arm Length	2200mm
Working Range
Maximum Digging Height	7625mm	Maximum Unloading Height	5740mm
Maximum Digging Depth	3980mm	Maximum Reach	7310mm
Minimum Digging Radius	6350mm	Minimum Tail Swing Radius	2105mm
Technical Parameters
Arm Digging Force	40kN	Bucket Digging Force	45kN
Bucket Capacity	0.35m³	Rotation Speed	10.5r/min
Travel Speed	35km/h	Climbing Ability	35°
Working Pressure	24MPa	Rated Power	62.5kW
Pump	Electronically controlled load-sensitive variable piston pump	Valve	Multi-way valve
Operating Weight	10T ± 0.5T
Tire Type	900-16	Number of Tires	8
Fuel Tank	160L	Hydraulic Oil Tank	140L

*Specifications are subject to change without prior notice to ensure product improvement and reliability.*
