Operating weight: 7.6T
Bucket capacity: 0.3m³
Rated power: 48KW

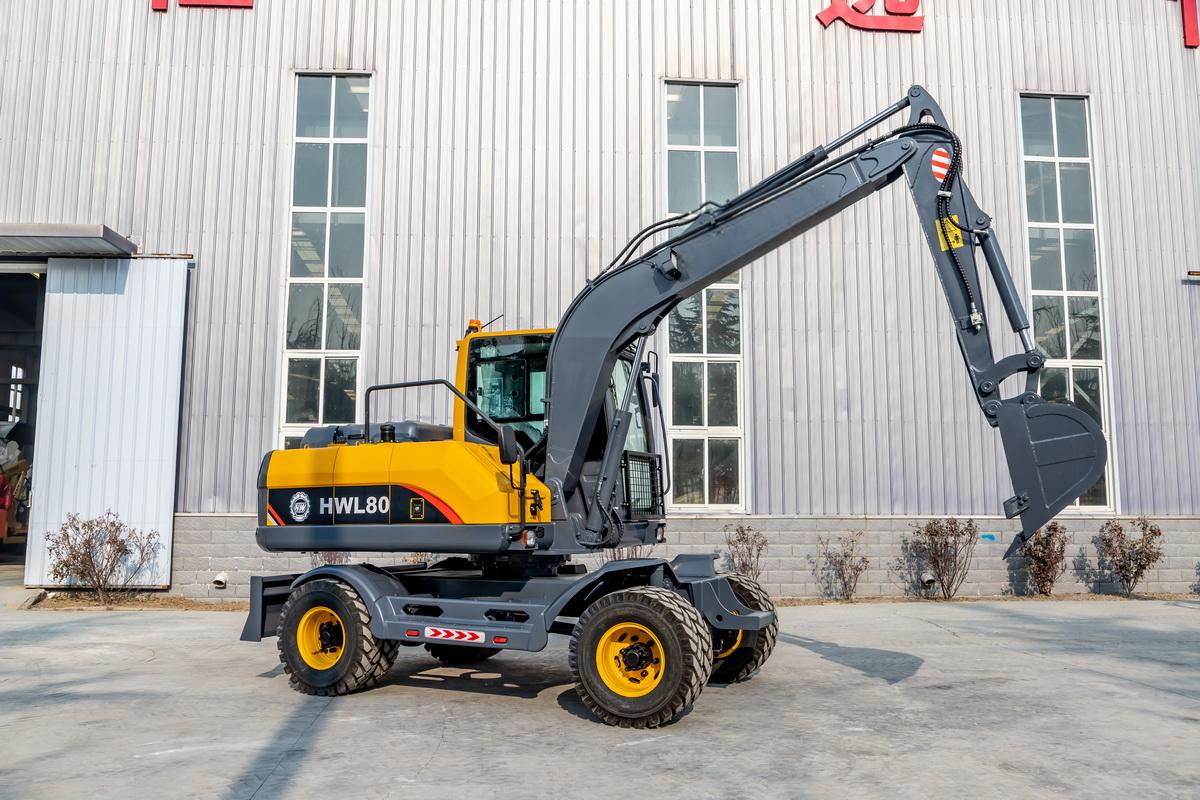

Wheel excavators, known for their flexible mobility and strong adaptability, are becoming increasingly popular across a wide range of industries. They combine the mobility advantages of wheeled vehicles with the powerful excavation and lifting performance of tracked machines, making them ideal for urban construction, road maintenance, municipal engineering, and agricultural projects.
High flexibility and broad adaptability — suitable for multiple terrains and working conditions.
Customizable for diverse tasks — can be equipped with different attachments to meet specific job requirements.
Agile rotation and precise operation — offers smooth, fast, and focused working efficiency.
High return on investment — durable design, low maintenance costs, and long service life deliver exceptional economic performance.

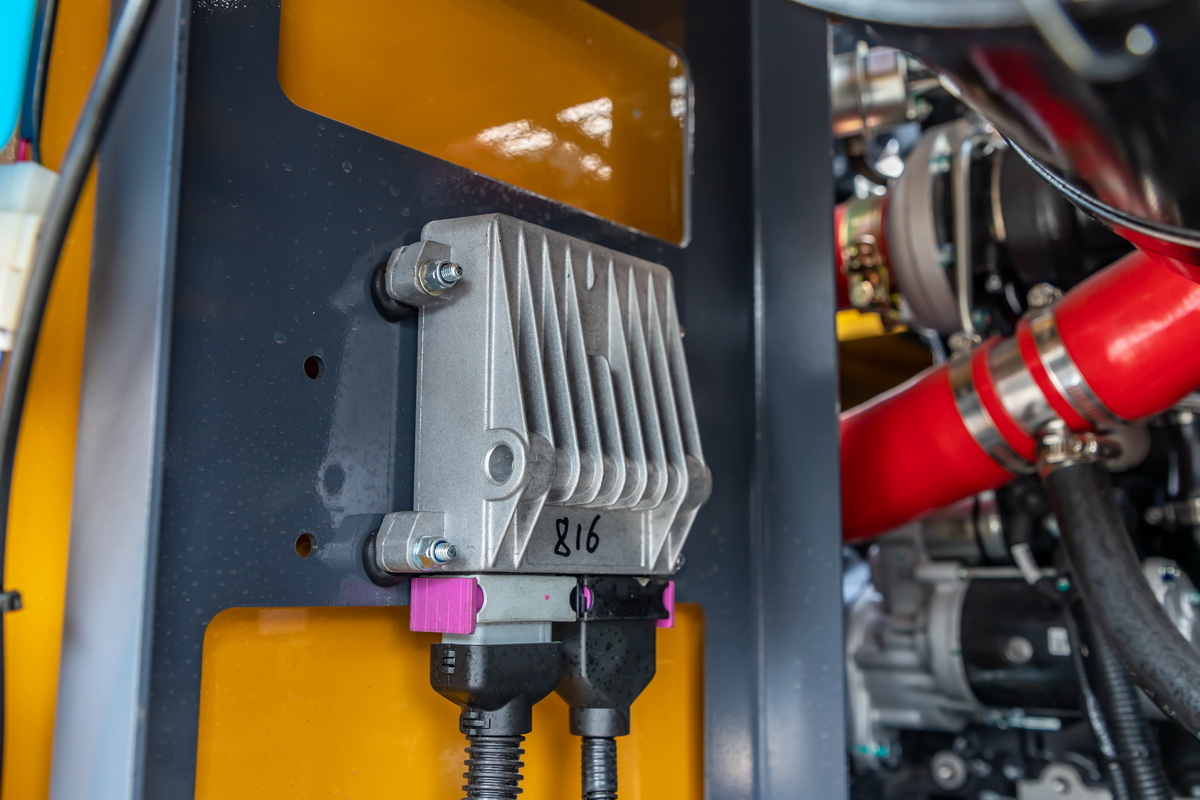

Electrical System:
Equipped with a color LCD display featuring self-check, real-time monitoring, emergency fault alarm, and advanced control software for enhanced human-machine interaction and reliability.

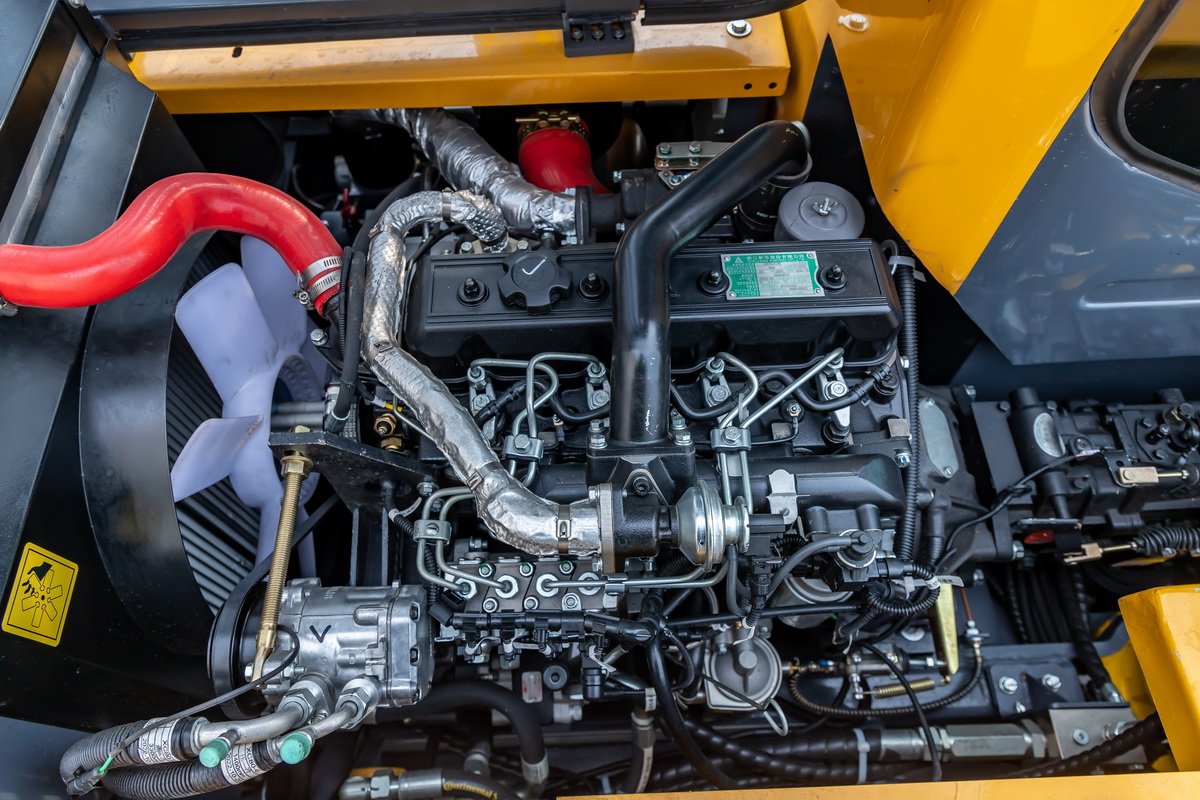

Power System:
Utilizes an advanced turbocharged exhaust engine with a strong power reserve, achieving optimal power-to-fuel matching, maximizing output, and reducing energy loss.

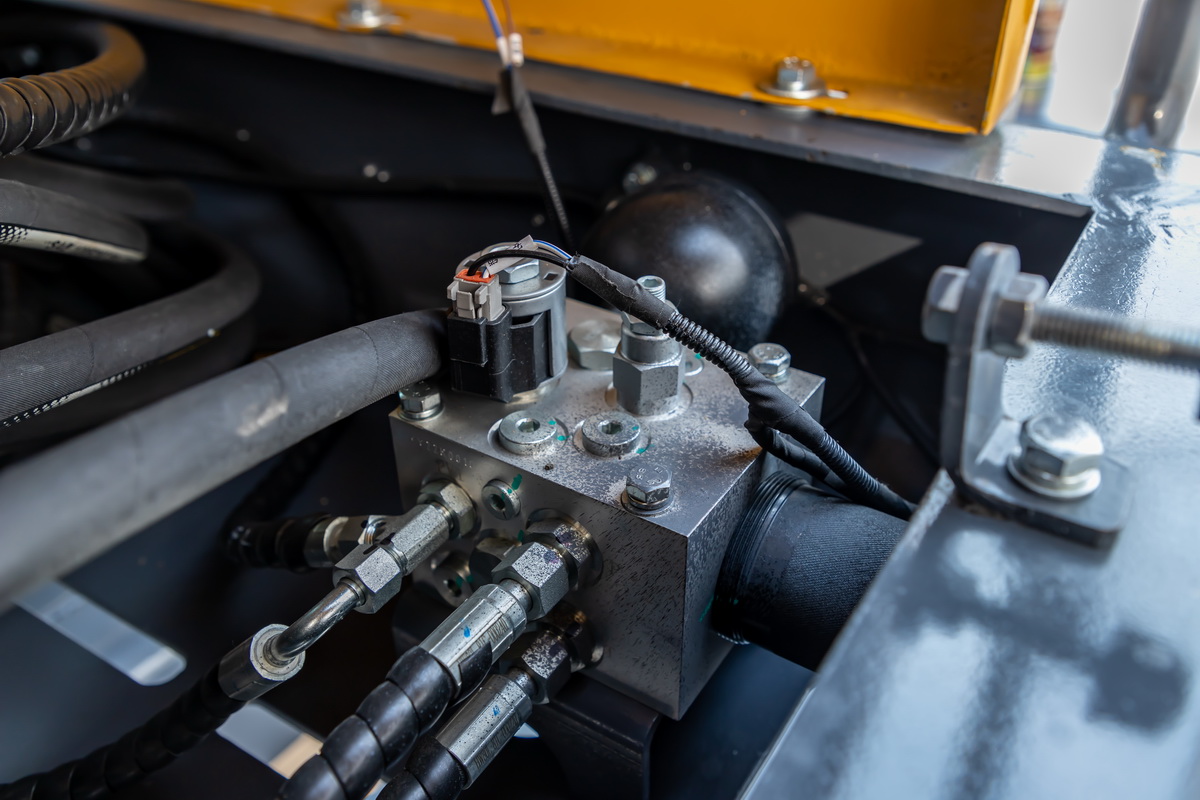

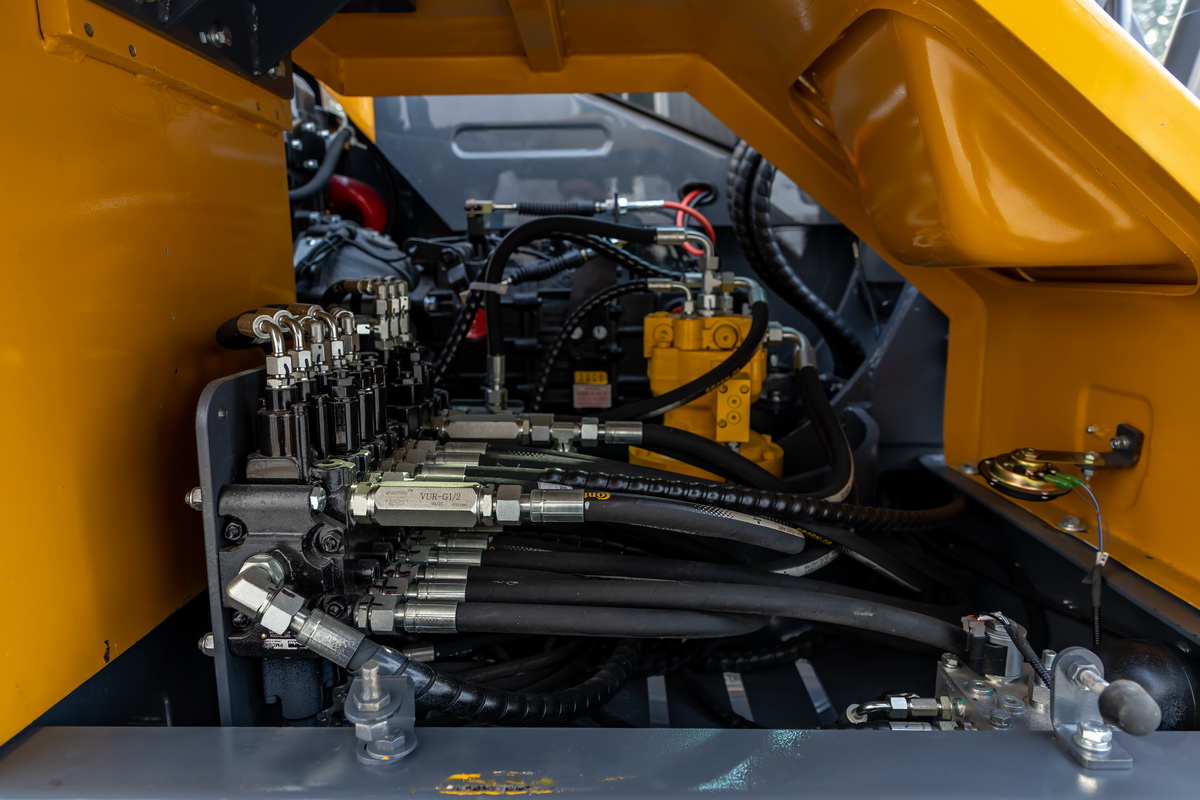

Hydraulic System:
Uses imported hydraulic components with low energy loss, fast response, precise compound movement coordination, and high efficiency. Ensures stable performance, energy savings, and long service life.
Walking System:
Reinforced front and rear drive axles combined with heavy-duty gearboxes provide higher load capacity and reliable off-road performance.

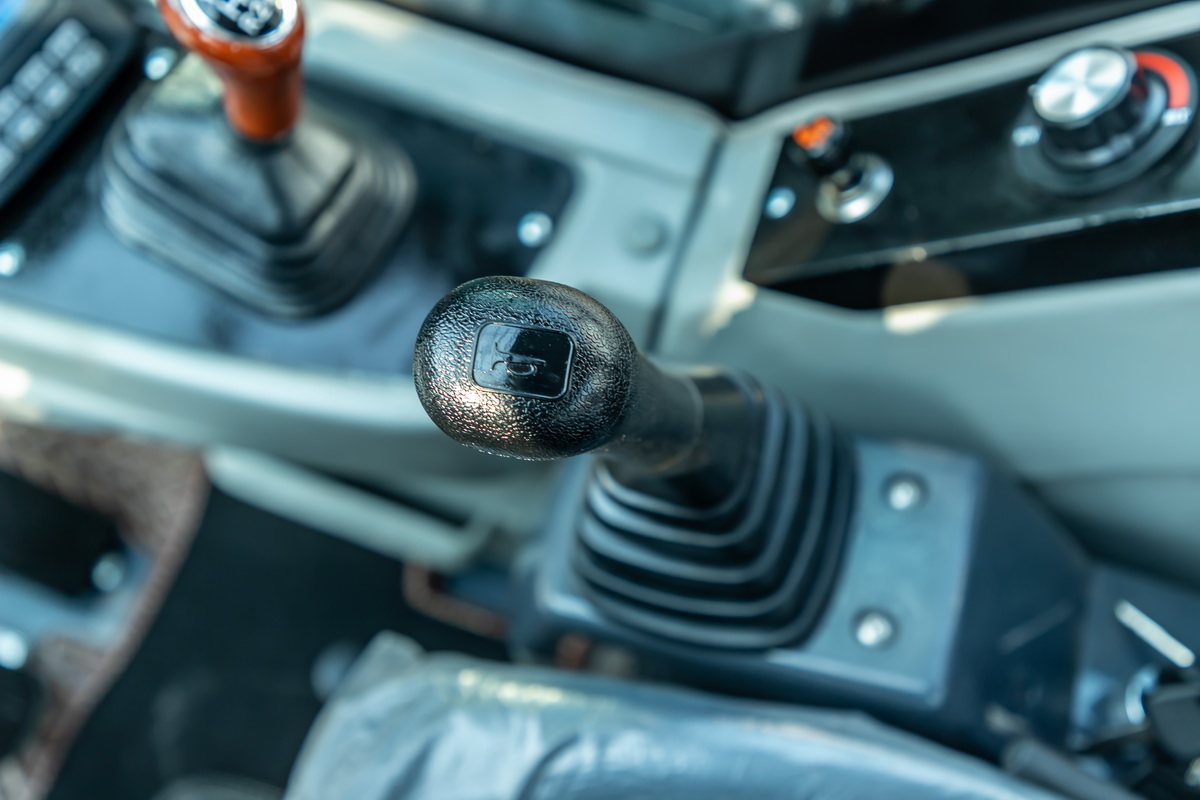

Cabin:
Newly designed cabin with wide field of vision, ergonomic controls, adjustable suspension seat, and silicone-oil damping ensures a comfortable and safe driving experience.
Cooling System:
Features a parallel cooling structure with high heat-dissipation efficiency, easy maintenance, and quick disassembly for improved reliability in continuous heavy-duty work.
| Model | GMH80-9S (Xinchai Gear Pump) |
| Overall Weight (KG) | 7200 |
| Bucket Capacity (m³) | 0.28 |
| Engine | |
|---|---|
| Model | Xinchai Gear 4D32 |
| Rated Power/Speed (kW/rpm) | 55/2500 |
| Max Torque/Speed (Nm/rpm) | 245/1350–1650 |
| Fuel Tank Capacity (L) | 130 |
| Hydraulic System | |
| Rated Displacement (ml/r) | 27×2+12×4 |
| Pilot Pressure (MPa) | 4 |
| Working Pressure (MPa) | 24 |
| Hydraulic Oil Tank Capacity (L) | 110 |
| Operating Range and Digging Force | |
| Max Digging Radius (mm) | 6362 |
| Max Digging Height (mm) | 6681 |
| Max Digging Depth (mm) | 3835 |
| Max Unloading Height (mm) | 4918 |
| Boom Length (mm) | 3450 |
| Stick Length (mm) | 1850 |
| Max Digging Force (kN) | 40 |
| Climbing Grade (°) | 35 |
| Swing Speed (rpm) | 10.5 |
| Max Traction Force (kN) | 40 |
| Max Travel Speed (km/h) | 35 |
| Dimensions | |
| Transport Length (mm) | 6130 |
| Transport Height (mm) | 2840 |
| Overall Width (mm) | 2020 |
| Tail Swing Radius (mm) | 1980 |
| Tire Diameter (mm) | 850 |
| Wheelbase (mm) | 1670 |
| Axle Distance (mm) | 2400 |
| Dozer Blade Width (mm) | 2116 |
| Dozer Blade Lifting Height (mm) | 336 |
| Dozer Blade Clearance (mm) | 25 |
| Counterweight Ground Clearance (mm) | 1040 |
| Min Ground Clearance (mm) | 220 |
| Chassis Width (mm) | 840 |
