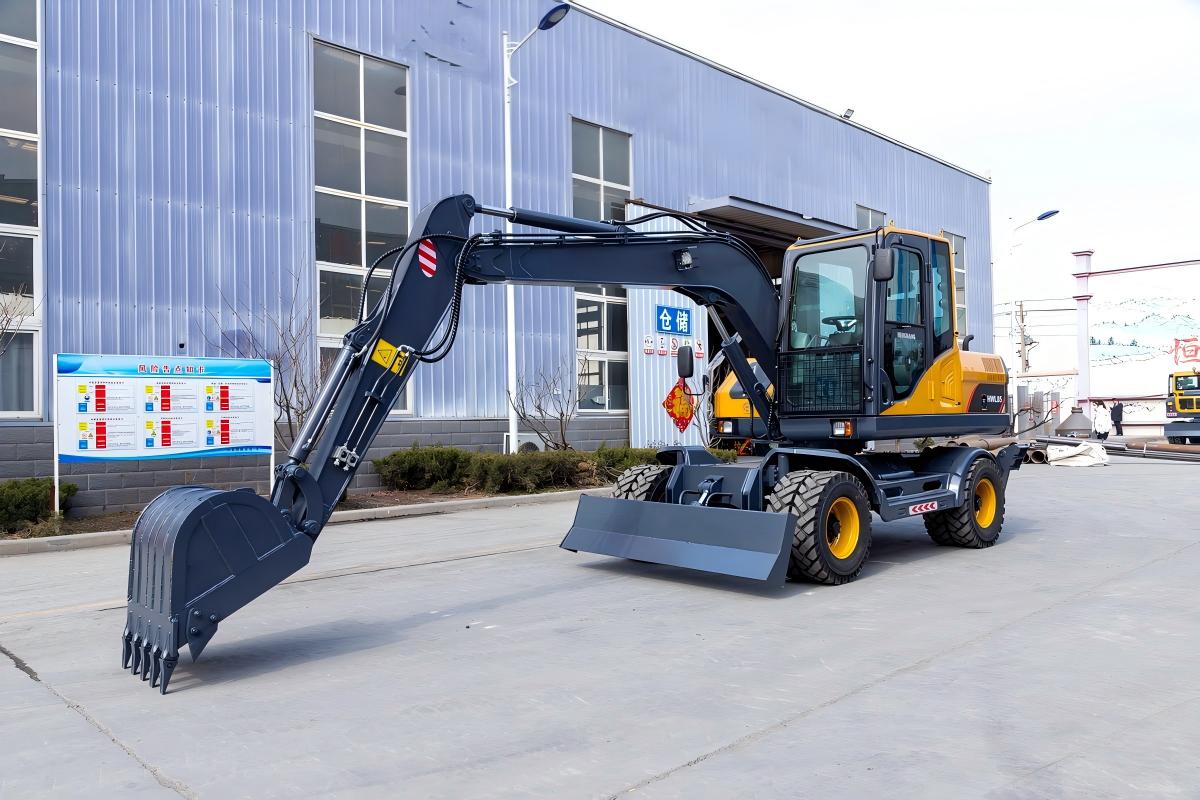

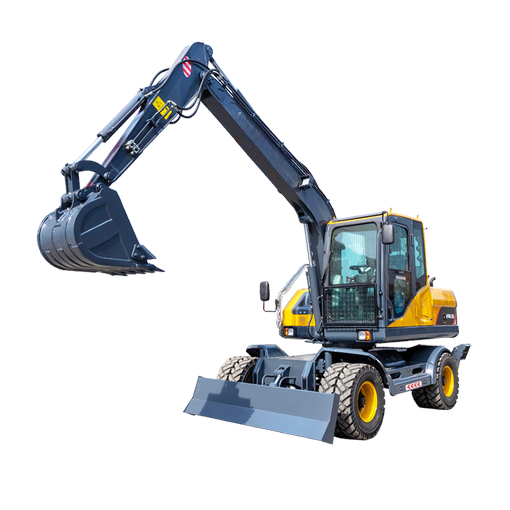

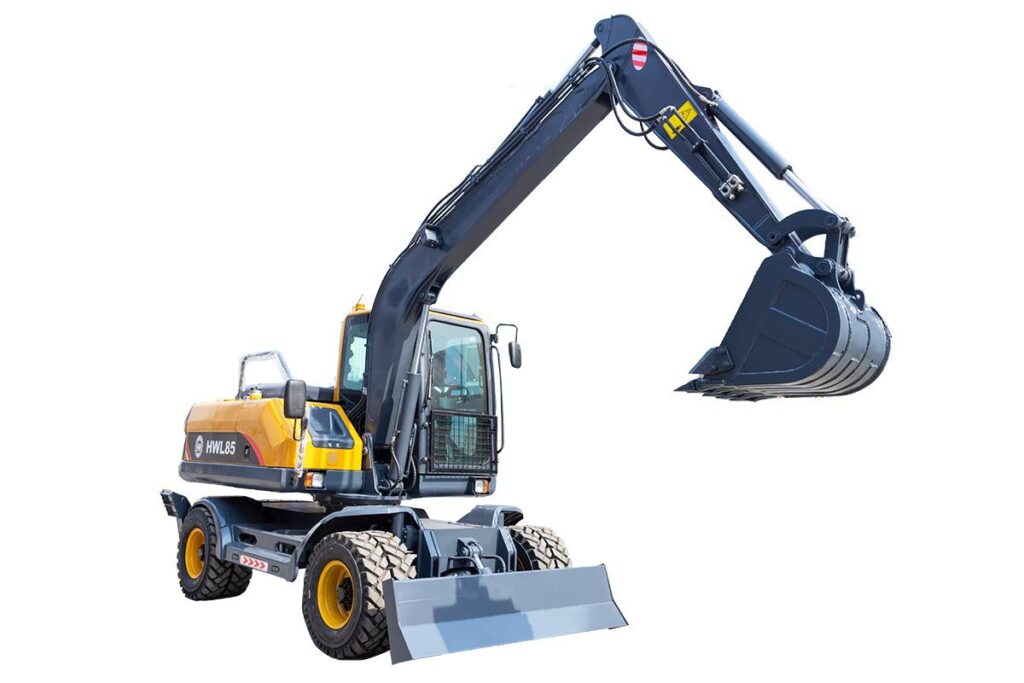

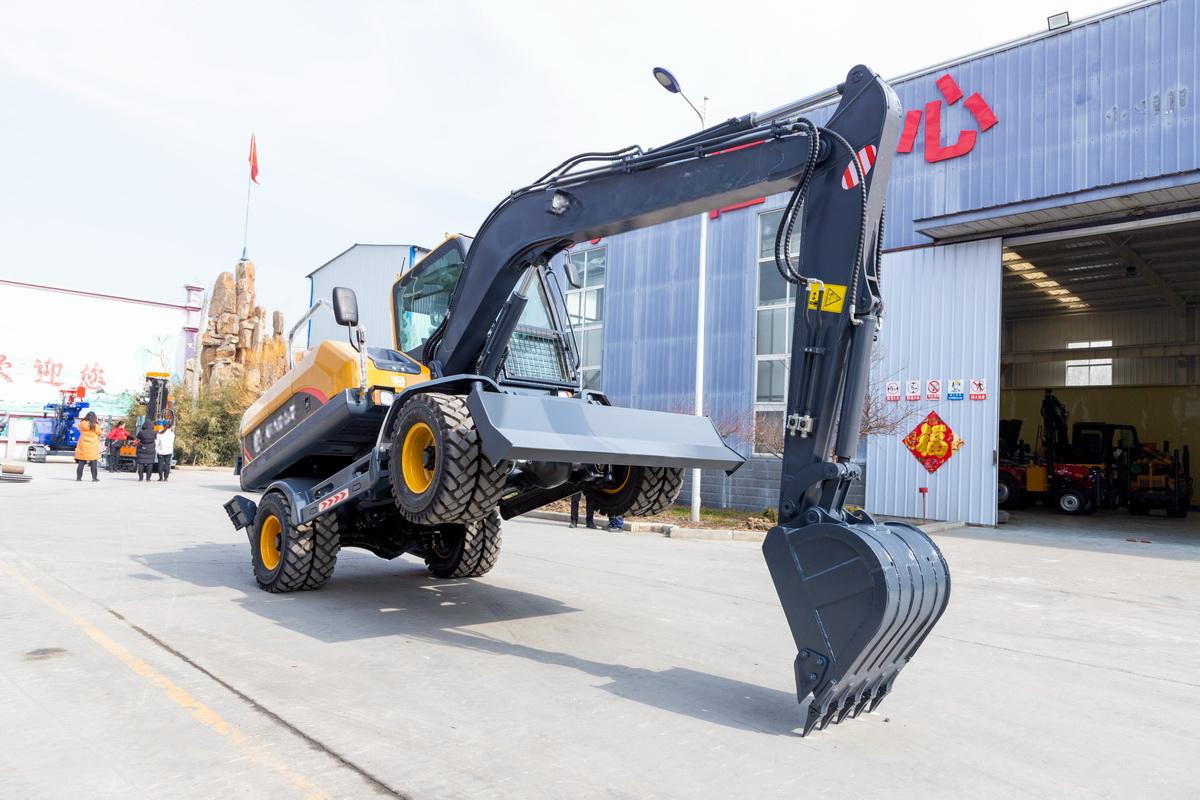

Operating weight: 7.2T
Bucket capacity: 0.28m³
Rated power: 55KW
High flexibility and adaptability: Capable of handling a wide range of working conditions with smooth mobility and strong terrain adaptability.
Versatile modification: Can be equipped with various attachments to meet different construction, municipal, and agricultural work requirements.
Agile operation: Quick rotation, precise control, and high operating efficiency for demanding worksites.
High return on investment: Combines low maintenance cost with high performance, ensuring excellent productivity and long-term reliability.
Electrical System:
Equipped with a color LCD display featuring self-check, real-time monitoring, and emergency fault alarm. The advanced control software ensures stable operation, easy diagnosis, and improved safety with high reliability.
Power System:
Uses an advanced turbocharged exhaust engine with sufficient power reserve. It maximizes engine output efficiency while achieving excellent fuel-to-power matching and reducing power loss.

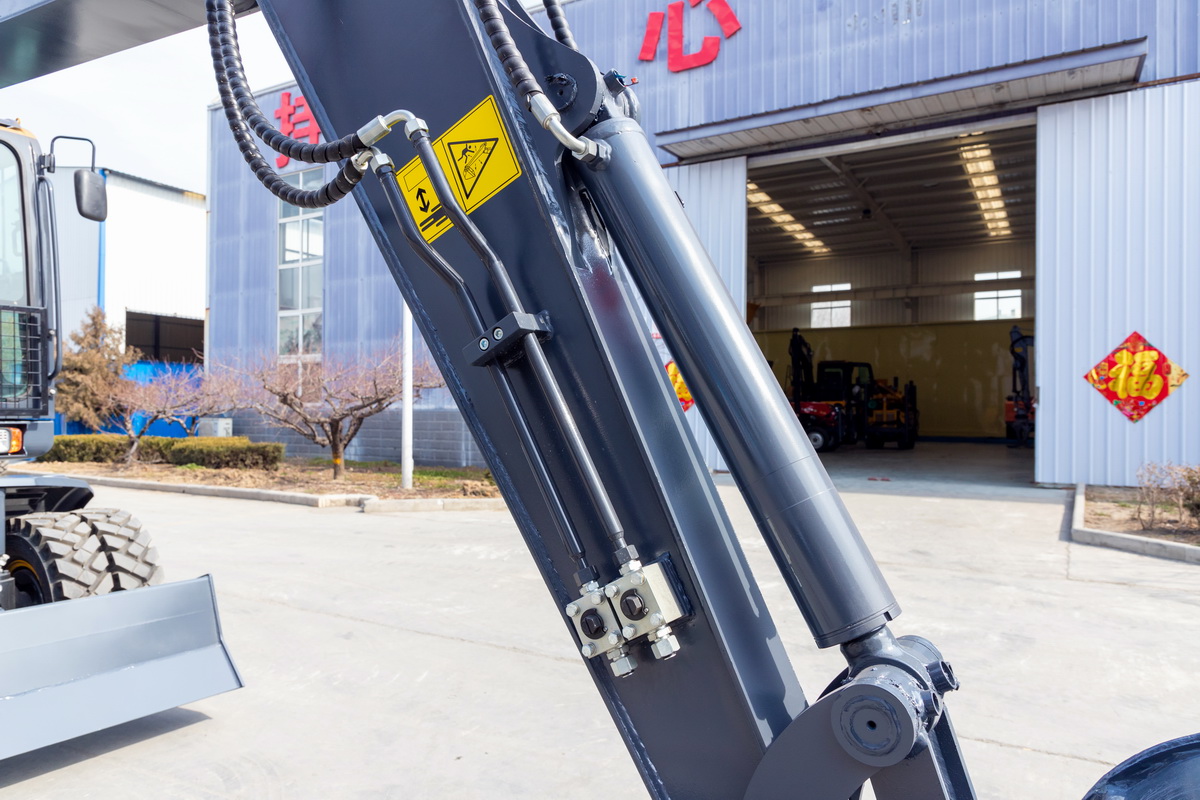

Hydraulic System:
Incorporates imported high-quality hydraulic components that ensure low energy loss, fast response, coordinated compound movements, and long service life. The system offers high efficiency, energy saving, and outstanding reliability.

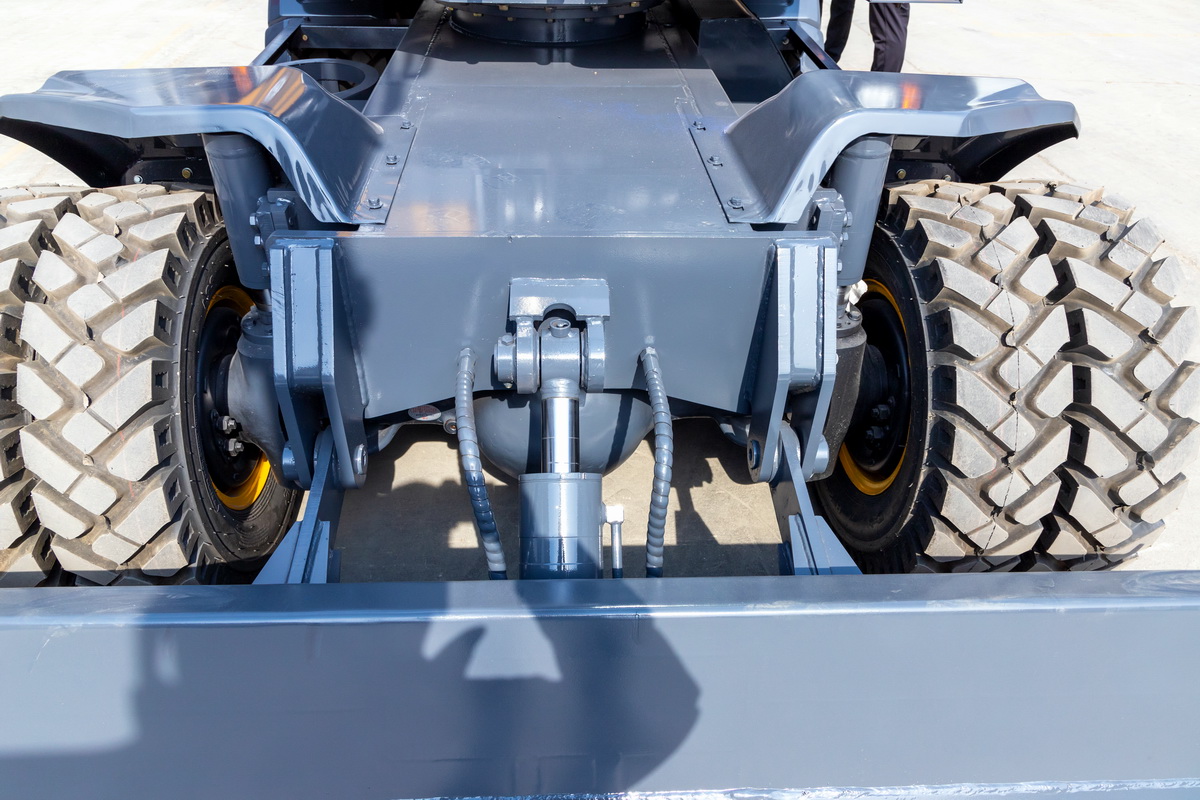

Traveling System:
Reinforced front and rear drive axles combined with heavy-duty gearboxes provide strong traction and higher load-bearing capability for off-road and construction environments.
Cabin:
Features a newly designed spacious cab with wide visibility, ergonomic controls, and adjustable suspension seating. The silicone-oil damping system reduces vibration, providing a comfortable and safe driving experience.
Cooling System:
The parallel cooling structure improves heat dissipation efficiency, simplifies cleaning and maintenance, and ensures stable operation under continuous heavy-load conditions.
| Overall Configuration | |
|---|---|
| Operating Weight | 7.2T |
| Engine Model | 4D32 |
| Engine Power | 55KW/2200rpm |
| Fuel Tank Capacity | 130L |
| Main Pump Displacement | 27×2+7ml/r |
| Hydraulic Oil Tank Capacity | 110L |
| Working Pressure | 24MPa |
| Dimensions | |
| Total Length (A) | 6410mm |
| Total Width (B) | 2020mm |
| Total Height (C) | 2840mm |
| Wheelbase (D) | 2400mm |
| Tire Model (E) | 825-16 |
| Number of Tires (F) | 8 |
| Track Width (G) | 2400mm |
| Minimum Ground Clearance (H) | 220mm |
| Maximum Dozer Blade Lift Height (I) | 320mm |
| Maximum Dozer Blade Support Height (J) | 30mm |
| Working Range | |

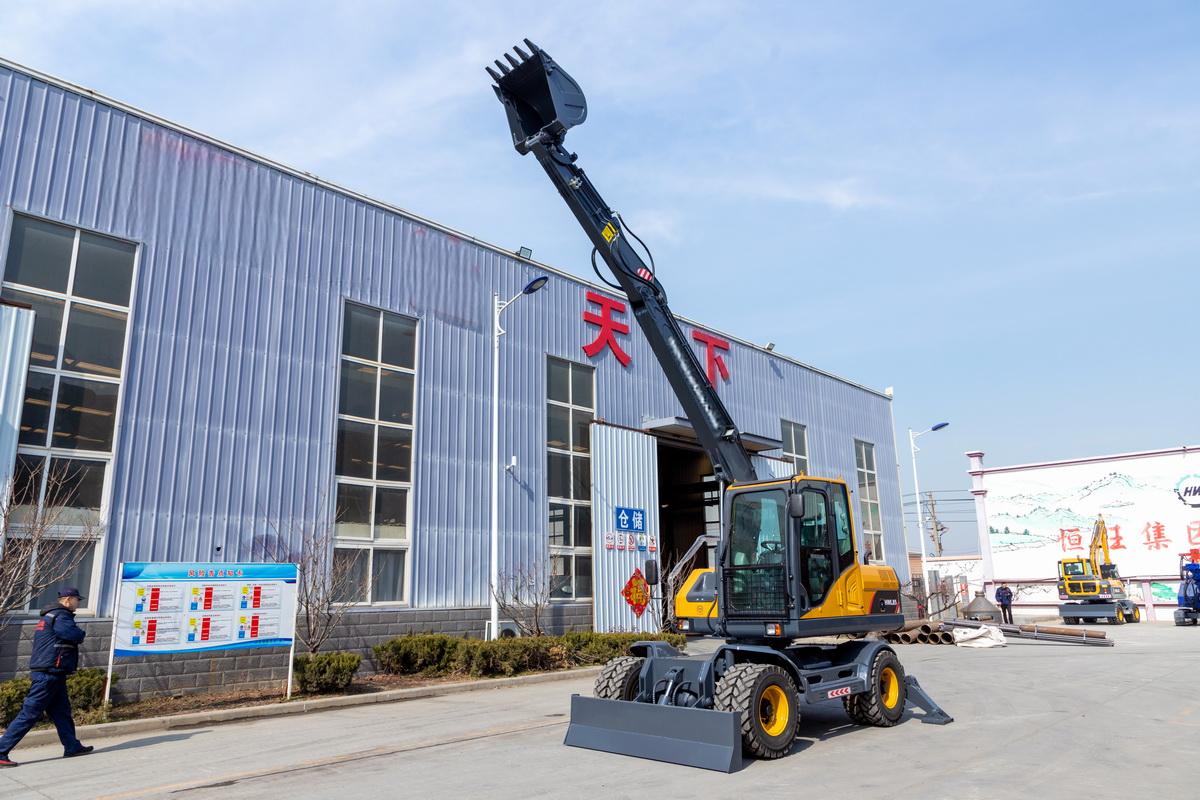

| Maximum Digging Height | 6930mm |
| Maximum Unloading Height | 5170mm |
| Maximum Digging Depth | 3655mm |
| Maximum Digging Radius | 6845mm |
| Arm Digging Force | 17.6kN |
| Bucket Digging Force | 33.2kN |
| Bucket Capacity | 0.28m³ |
| Travel Speed | 30km/h |
| Minimum Turning Radius | 6800mm |
| Climbing Ability | 35° |
| Rotation Speed | 10.5r/min |
| Minimum Tail Swing Radius | 1980mm |
