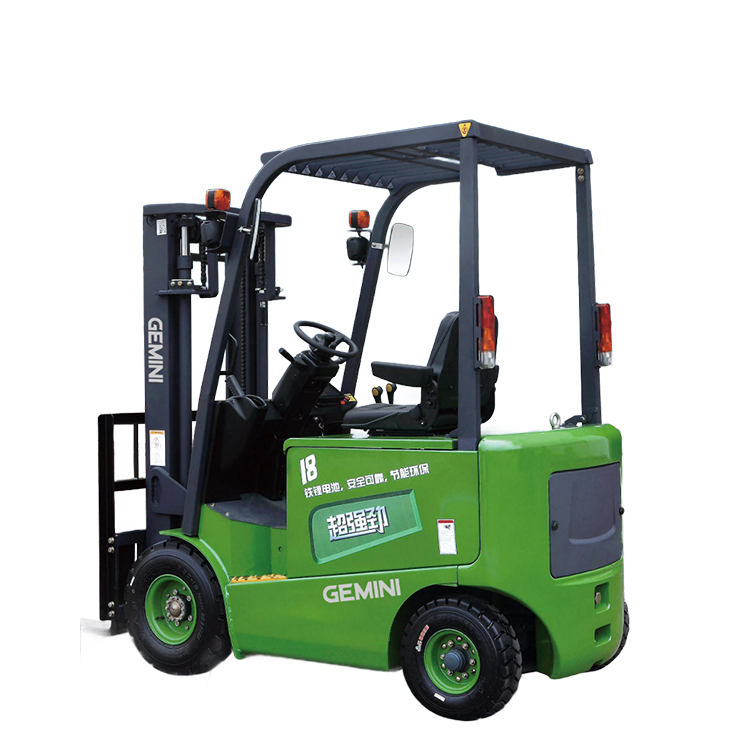

Fork Lift GFE15/18

Fork Lift GFE15/18

Rated Capacity:1500kg/1800kg

Load Center:450/450

Facebook
Twitter
LinkedIn

Product Parameter

  • Permanent Magnet Motor: Energy-efficient, reducing power consumption.
  • Stable Design: Enhanced with robust cast drive and steering axles for improved strength.
  • Mast Drop Buffer: Minimizes unloading drop impact for smoother operation.
  • Smart Display: Intuitive interface with real-time performance data and fault codes.
  • Comfortable Seat: Shock-absorbing seat for added comfort and secure support.
  • Long-lasting Battery: 2-hour charge, 8 hours of operation, with extended battery life.
  • Maintenance-free Lithium Battery: Charge anytime with real-time data monitoring.
  • Golden Pedal: Durable and easy-to-use pedals.
  • Durable Construction: High-strength body, comparable to internal combustion vehicles.
  • Temperature Tolerance: Operates in environments from -30°C to 60°C.
  • Gradeability: Handles inclines up to 15° with full load.
  • Advanced Cooling System: Prevents overheating with intelligent fan control.
  • IP65 Protection: Dust and water-resistant for harsh conditions.
  • Air Cooling: Ensures continuous operation by preventing overheating.

Specification Unit GFE 15 GFE 18
Model GFE 15 GFE 18
Power Type Battery Battery
Rated Capacity kg 1500 1800
Load Center mm 450 450
Lifting & Dimensions
Lift Height mm 3000 3000
Free Lift Height mm 130 130
Fork Size (L*W*T) mm 920×100×35 920×100×35
Fork Outside Spread (Min./Max.) mm 260/980 260/980
Mast Tilt Range (F/R) deg 6/12 6/12
Front Overhang mm 354 354
Overall Length (Without Fork) mm 2150 2380
Overall Length (With Fork) mm 3070 3300
Wheel Width mm 1245 1245
Mast Lowered Height mm 2085 2085
Mast Extended Height mm 3960 3960
Overhead Guard Height mm 2165 2165
Turning Radius mm 1960 2120
Performance
Travel Speed (Unloaded/Full Load) km/h 16 16
Lift Speed (Unloaded/Full Load) mm/s 300 300
Self Weight kg 2250 2450
      > Data Download <
